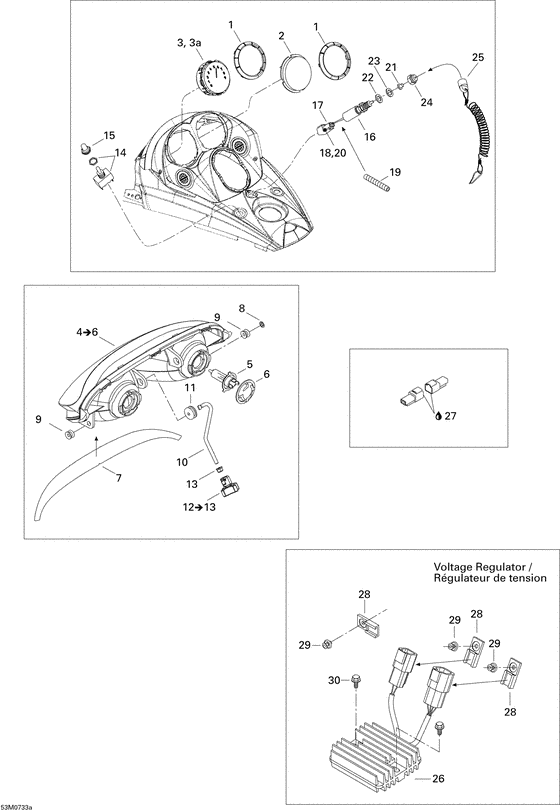

10- electrical accessories 1 Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176242 Ring - gauge |
515176242 |
US $14.55 |
||
| replacement | |||||
|
1
|
1
515179005 Gauge Ring |
515179005 |
US $14.64 |
||
|
2
|
2
515175901
Gauge hole cover
|
515175901 |
— | ||
|
3
|
3
515176479 Compte-tours *tachometer |
515176479 |
US $335.55 |
||
|
3a
|
3a
415128938
Lentille indica*lens speedometre
|
415128938 |
— | ||
| replacement | |||||
|
3a
|
3a
415129319 Lentille indica*lens speedometre |
415129319 |
US $8.38 |
||
|
4
|
4
515176311 Phare halogene *headlamp-halo.Includes 4 to 6; |
515176311 |
US $264.15 |
||
|
5
|
5
515176274 Ampoule halogen*bulb-hal.h4 |
515176274 |
US $25.31 |
||
|
6
|
6
515176385 Porte ampoule *bulb holder |
515176385 |
US $12.58 |
||
|
7
|
7
516001328 Decalque phare *decal-headlamp |
516001328 |
US $5.07 |
||
|
8
|
8
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
9
|
9
515175760 Coussinet phare*bushing-headlamp |
515175760 |
US $38.85 |
||
|
10
|
10
515175521 Tige ajustement*rod-adjuster |
515175521 |
US $16.76 |
||
|
11
|
11
415100800 Grommet |
415100800 |
US $5.20 |
||
|
12
|
12
515175975 Manette *handleIncludes 12 to 13; |
515175975 |
US $9.40 |
||
|
13
|
13
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
14
|
14
410107300 Int.poig.chauf.*switch-grip he |
410107300 |
US $38.98 |
||
|
15
|
15
515175281 Couv.interrupt.*cover-switch |
515175281 |
US $67.92 |
||
|
16
|
16
515175653 Inter.frein *switch-brake |
515175653 |
US $21.42 |
||
|
17
|
17
515175665 Logement male *housing-male |
515175665 |
US $9.67 |
||
|
18
|
18
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
19
|
19
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
20
|
20
515175768 Cosse male *terminal-male |
515175768 |
US $2.60 |
||
|
21
|
21
570151100 Cap.plongeur *cap-plunger |
570151100 |
US $54.25 |
||
|
22
|
22
250200032 Rondelle *washer |
250200032 |
US $65.80 |
||
|
23
|
23
510004418 Rondelle *washer |
510004418 |
US $73.30 |
||
|
24
|
24
415073500
Ecrou inter. *nut-switch
|
415073500 |
— | ||
|
25
|
25
515176462 Capuchon ass. *cap-assy. |
515176462 |
US $34.65 |
||
|
26
|
26
515175968 Regu.tension *regulator-volt |
515175968 |
US $230.49 |
||
|
27
|
27
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
28
|
28
515175917 Clip *clip |
515175917 |
US $11.17 |
||
|
29
|
29
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
30
|
30
210262080 Screw-forming hex.hd.fl.gm6174m |
210262080 |
US $2.72 |
||
