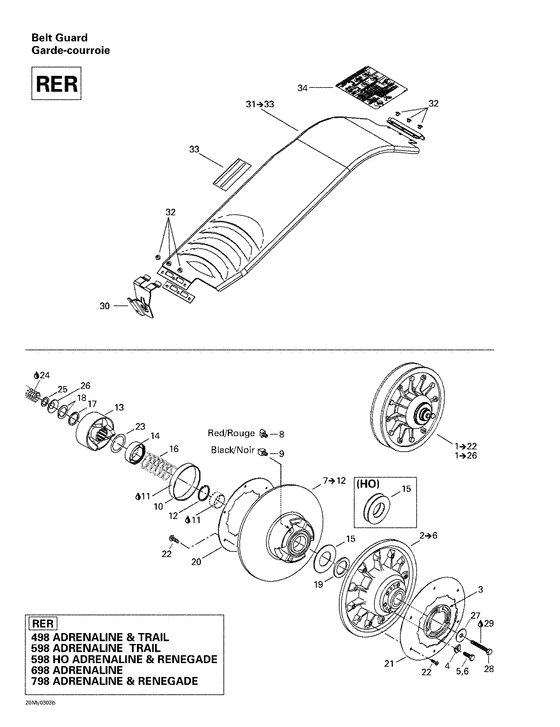

05- driven pulley (RER) Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
417126603
Flasque fixe as*flange-fix.assy
MX Z 600.; |
417126603 |
— | ||
| replacement | |||||
|
|
417126807 Flasque fixe as*flange-fix.assyMX Z 600.; |
417126807 |
US $320.25 |
||
|
|
417126687 Ressort *spring800 ADRENALINE & RENEGADE MX Z 800. RER 600 HO ADRENALINE. RER 600 HO RENEGADE MX Z 600.; |
417126687 |
US $15.27 |
||
|
|
371911200 Anneau retenue *circlipMX Z 600.; |
371911200 |
US $21.25 |
||
|
|
417126577 Came ass. *cam-ass.RER 600 ADRENALINE & TRAIL MX Z 600.; |
417126577 |
US $218.25 |
||
|
|
417126580
Came ass. *cam-ass.
RER 700 ADRENALINE MX Z 700.; |
417126580 |
— | ||
|
|
417126385
Came ass. *cam-ass.
800 ADRENALINE & RENEGADE MX Z 800. RER 600 HO ADRENALINE. RER 600 HO RENEGADE MX Z 600.; |
417126385 |
— | ||
|
|
417126605
Flasque coul.as*flange-slid.as
MX Z 600.; |
417126605 |
— | ||
| replacement | |||||
|
|
417126909 Flasque coul.as*flange-slid.asMX Z 600.; |
417126909 |
US $350.85 |
||
|
|
504099600 Rondelle butee *washer-stopperMX Z 600.; |
504099600 |
US $6.07 |
||
|
2
|
2
417126527
Flasque fixe as*flange-fix.assy
Includes 2 - 6.; |
417126527 |
— | ||
|
3
|
3
415005800
Bague ajustem. *ring-adjust.
|
415005800 |
— | ||
|
4
|
4
415005900 Cale de reglage*shim-adjust. |
415005900 |
US $4.05 |
||
|
5
|
5
207162544 Screw-hex.cap din.933 |
207162544 |
US $14.60 |
||
|
6
|
6
207162244 Screw-hex.cap din.933 |
207162244 |
US $3.83 |
||
|
7
|
7
417126318
Flasque coul.as*flange-slid.as
Includes 7 - 12.; |
417126318 |
— | ||
|
8
|
8
417126373
Gliss.came arr.*shoe-cam slide rear
|
417126373 |
— | ||
|
9
|
9
417126374 Gliss. came av.*shoe-cam slide front |
417126374 |
US $4.08 |
||
|
10
|
10
414978100
Coussinet *bushing
|
414978100 |
— | ||
| replacement | |||||
|
10
|
10
417126902 Coussinet *coussinet |
417126902 |
US $45.56 |
||
|
11
|
11
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
12
|
12
371911200 Anneau retenue *circlip |
371911200 |
US $21.25 |
||
|
13
|
13
417126445 Came assemblee *cam-ass.RER 500 ADRENALINE & TRAIL MX Z 500.; |
417126445 |
US $218.25 |
||
|
14
|
14
417126381 Protecteur *guard |
417126381 |
US $8.13 |
||
|
15
|
15
504099600 Rondelle butee *washer-stopper |
504099600 |
US $6.07 |
||
|
16
|
16
414978300 Ressort rappel *spring-releaseRER 500 ADRENALINE & TRAIL MX Z 500. RER 600 ADRENALINE & TRAIL MX Z 600. RER 700 ADRENALINE MX Z 700.; |
414978300 |
US $27.49 |
||
|
17
|
17
417126375
Entretoise *spacer
|
417126375 |
— | ||
|
18
|
18
371911000 Demi-cle *key-half |
371911000 |
US $38.34 |
||
|
19
|
19
504112300 Cale epaisseur *shim |
504112300 |
US $70.90 |
||
|
20
|
20
504149700
Couv.aerodynam.*cover-aerodyn.
RER 600 ADRENALINE & TRAIL X Z 700. RER 700 ADRENALINE MX Z 500. MX Z 800. 800 ADRENALINE MX Z 500. RER 600 HO ADRENALINE MX Z 500. MX Z 700.; |
504149700 |
— | ||
|
21
|
21
504151831 Couv.aerodynam.*cover-aerodyn.RER 600 ADRENALINE & TRAIL X Z 700. RER 700 ADRENALINE MX Z 500. MX Z 800. 800 ADRENALINE MX Z 500. RER 600 HO ADRENALINE MX Z 500. MX Z 700.; |
504151831 |
US $37.71 |
||
|
22
|
22
210251180 Screw-forming hex.hd.fl.gm6174mRER 600 ADRENALINE & TRAIL X Z 700. RER 700 ADRENALINE MX Z 500. MX Z 800. 800 ADRENALINE MX Z 500. RER 600 HO ADRENALINE MX Z 500. MX Z 700.; |
210251180 |
US $21.60 |
||
|
23
|
23
417126322 Butee pivotante*swivel-abutment |
417126322 |
US $8.13 |
||
|
24
|
24
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
25
|
25
417300054
Entretoise *spacer
RER 800 ADRENALINE & RENEGADE MX Z 800.; |
417300054 |
— | ||
|
26
|
26
417300055
Protecteur *protector
RER 800 ADRENALINE & RENEGADE MX Z 800.; |
417300055 |
— | ||
|
27
|
27
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
28
|
28
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
29
|
29
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
30
|
30
417300001
Attache *bracket
|
417300001 |
— | ||
|
31
|
31
417300173
Garde-courr.ass*guard-belt assy
Includes 31 - 33.; |
417300173 |
— | ||
|
32
|
32
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
33
|
33
516001190
Etiquette secur*security-label
|
516001190 |
— | ||
| replacement | |||||
|
33
|
33
516002670 Etiquette secur*security-label |
516002670 |
US $0.02 |
||
|
34
|
34
516001639
Decal.ajust. *decal-ajust.
|
516001639 |
— | ||
