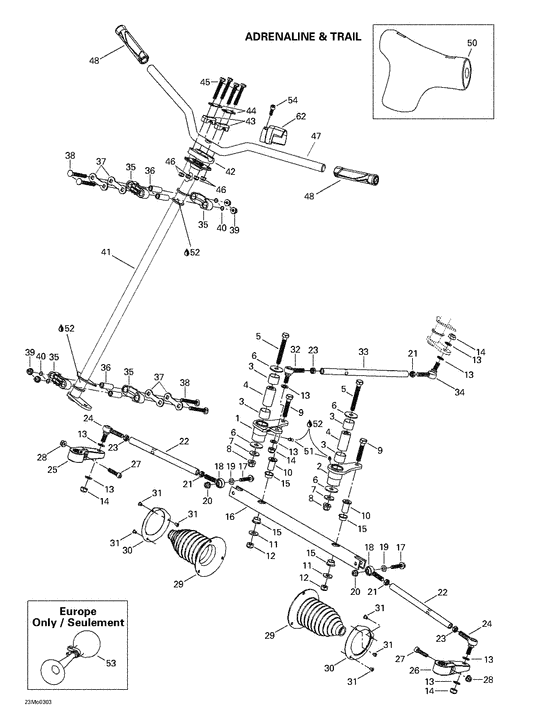

07- steering system (Adrenaline And Trail) Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
506151506
Bras piv.dr.sou*arm-swivel rh w.
|
506151506 |
— | ||
|
2
|
2
506151623 Bras piv.ga.sou*swivel arm lh w. |
506151623 |
US $97.89 |
||
|
3
|
3
506149900 Coussinet pivot*swivel-bushing |
506149900 |
US $14.67 |
||
|
4
|
4
506150100 Pivot de bras *swivel-pivot |
506150100 |
US $18.34 |
||
|
5
|
5
207008086 Screw-hex.cap iso.4014 |
207008086 |
US $16 |
||
|
6
|
6
506150000 Rondelle *washer m10 |
506150000 |
US $3.54 |
||
|
7
|
7
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
8
|
8
732610084 Nut-flange flexloc m10 |
732610084 |
US $44.35 |
||
|
9
|
9
207005544 Screw-hex.cap iso.4014 |
207005544 |
US $14.35 |
||
|
10
|
10
506147300 Pivot de barre *pivot-bar |
506147300 |
US $18.34 |
||
|
11
|
11
224002251 Washer-flat |
224002251 |
US $9.80 |
||
|
12
|
12
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
13
|
13
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
14
|
14
232501416 Nut-stop elastic din.985 |
232501416 |
US $9.60 |
||
|
15
|
15
506150200
Coussinet pivot*swivel-bushing
|
506150200 |
— | ||
|
16
|
16
506147000 Barre pivotante*bar-swivel |
506147000 |
US $65.25 |
||
|
17
|
17
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.20 |
||
|
18
|
18
506151496 Joint rotule ga*joint-ball lh |
506151496 |
US $48.93 |
||
|
19
|
19
506151252 Rondelle *washer |
506151252 |
US $102.50 |
||
|
20
|
20
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
21
|
21
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
22
|
22
506151374 Barre accoupl. *rod-tie |
506151374 |
US $48.93 |
||
|
23
|
23
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
24
|
24
506151491 Joint rotule *joint-ball |
506151491 |
US $41.74 |
||
|
25
|
25
506145800 Bras direct.dr.*arm-steer.rh |
506145800 |
US $146.85 |
||
|
26
|
26
506145900 Bras direct.ga.*arm-steer.lh |
506145900 |
US $146.85 |
||
|
27
|
27
205083544 Screw-socket hd.din.912 |
205083544 |
US $8.65 |
||
|
28
|
28
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
29
|
29
570070500 Capuchon timon.*cap-tie rod |
570070500 |
US $17.12 |
||
|
30
|
30
506151100 Anneau retenue *ring-retainer |
506151100 |
US $5.41 |
||
|
31
|
31
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
32
|
32
506151492 Joint rotule dr*joint-ball rh |
506151492 |
US $53.13 |
||
|
33
|
33
506151375
Barre accoupl. *rod-tie
|
506151375 |
— | ||
|
34
|
34
506151495 Joint rotule ga*joint-ball lh |
506151495 |
US $46.10 |
||
| replacement | |||||
|
34
|
34
506151845 Joint rotule ga*ball joint lh |
506151845 |
US $46.10 |
||
|
35
|
35
506150400 Demi logement *half-housing |
506150400 |
US $9.74 |
||
|
36
|
36
506150500 Douille logem. *bushing-housing |
506150500 |
US $9.78 |
||
|
37
|
37
506150600 Plaque d arret *plate-stopper |
506150600 |
US $5.47 |
||
|
38
|
38
207787044 Bolt-carriage din.603 |
207787044 |
US $17.50 |
||
|
39
|
39
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
40
|
40
506151140 Joint torique *o-ring |
506151140 |
US $213.75 |
||
|
41
|
41
506147100
Arbre dir.peint*tube-main paint
|
506147100 |
— | ||
|
42
|
42
277000142 Bride direction*clamp-steering |
277000142 |
US $11.02 |
||
|
43
|
43
506151622
Support guidon *steering support
|
506151622 |
— | ||
|
44
|
44
506151196
Renfort *reiforcement
|
506151196 |
— | ||
|
45
|
45
207085544 Screw-hex.cap din.931 |
207085544 |
US $21.60 |
||
|
46
|
46
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
47
|
47
506151677
Guidon peint *handle bar paint
|
506151677 |
— | ||
|
48
|
48
506151714
Gaine *grip
|
506151714 |
— | ||
| replacement | |||||
|
48
|
48
506152238 Gaine poignee *grip-handle |
506152238 |
US $95.76 |
||
|
49
|
49
506151566 Adaptateur *adaptator |
506151566 |
US $12.19 |
||
|
50
|
50
506151602
Couss.securite *steering pad
|
506151602 |
— | ||
|
51
|
51
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
52
|
52
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
53
|
53
415040700
Avertisseur *horn
|
415040700 |
— | ||
| replacement | |||||
|
53
|
53
549011291 Avertisseur *horn |
549011291 |
US $31.59 |
||
|
54
|
54
206581244 Screw-set socket din.916 |
206581244 |
US $2.52 |
||
