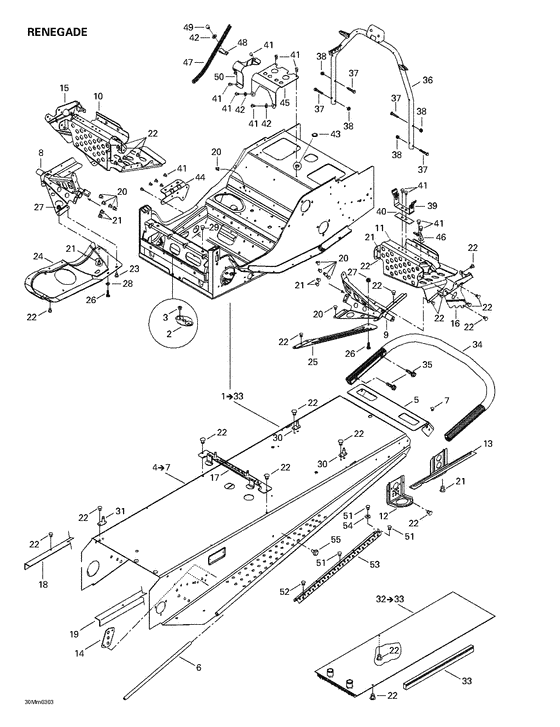

09- frame (Renegade) Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
518323167
Att.arr.ga.p. *brkt-rr lh paint
MX Z 600. MX Z 800.; |
518323167 |
— | ||
|
|
518322708 Pare-chocs arr.*bumper-rearC/U MX Z 600. MX Z 800.; |
518322708 |
US $97.89 |
||
|
1
|
1
415128553
Chassis *frame service
Includes 1 - 33. RENEGADE MX Z 600. MX Z 800.; |
415128553 |
— | ||
|
2
|
2
518201307
Plaque att.soud*plate-brkt weld
MX Z 600. MX Z 800.; |
518201307 |
— | ||
|
3
|
3
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 800.; |
390402200 |
US $22 |
||
|
4
|
4
415128614
Tunnel forme *frame-forming
Includes 4 - 7. MX Z 600. MX Z 800.; |
415128614 |
— | ||
|
5
|
5
518322734
Capuchon arr. *cap-rear
MX Z 600. MX Z 800.; |
518322734 |
— | ||
|
6
|
6
518304746 Renf.marche-pie*reinf.-foot.MX Z 600. MX Z 800.; |
518304746 |
US $31.59 |
||
|
7
|
7
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 800.; |
390402200 |
US $22 |
||
|
8
|
8
518320506
Support droit *rh.support
MX Z 600. MX Z 800.; |
518320506 |
— | ||
|
9
|
9
518320507 Support gauche *lh.supportMX Z 600. MX Z 800.; |
518320507 |
US $138.69 |
||
|
10
|
10
518323563
Repose-pied dr.*rh.footrest
MX Z 600. MX Z 800.; |
518323563 |
— | ||
|
11
|
11
518323564 Repose-pied ga.*lh.footrestMX Z 600. MX Z 800.; |
518323564 |
US $76.45 |
||
|
12
|
12
518321495
Attache avant *bracket-front
MX Z 600. MX Z 800.; |
518321495 |
— | ||
|
13
|
13
518323164
Att.arr.dr.p. *brkt-rr rh paint
MX Z 600. MX Z 800.; |
518323164 |
— | ||
|
14
|
14
518201321 Plaque renfort *plate-reinf.MX Z 600. MX Z 800.; |
518201321 |
US $8.38 |
||
|
15
|
15
518321305 Renf.rep.-pi.dr*reinf.-footrest rhMX Z 600. MX Z 800.; |
518321305 |
US $16.76 |
||
|
16
|
16
518321307 Renf.rep.-pi.ga*reinf.-footrest lhMX Z 600. MX Z 800.; |
518321307 |
US $16.76 |
||
|
17
|
17
518321510 Att.reserv.p. *brkt-tank paintMX Z 600. MX Z 800.; |
518321510 |
US $23.41 |
||
|
18
|
18
518323190
Renfort *reinforcement
MX Z 600. MX Z 800.; |
518323190 |
— | ||
|
19
|
19
518323191
Renfort *reinforcement
MX Z 600. MX Z 800.; |
518323191 |
— | ||
|
20
|
20
390909200 Rivet avex *rivet avexMX Z 600. MX Z 800.; |
390909200 |
US $19.50 |
||
|
21
|
21
390909100 Rivet avex *rivet avexMX Z 600. MX Z 800.; |
390909100 |
US $19.50 |
||
|
22
|
22
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 800.; |
390402200 |
US $22 |
||
|
23
|
23
390402300 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 800.; |
390402300 |
US $50 |
||
|
24
|
24
518322636 Plaque coque dr*plate-pan bott.rhMX Z 600. MX Z 800.; |
518322636 |
US $33.61 |
||
|
25
|
25
518322119 Plaque renf.ga.*plate-reinf.lhMX Z 600. MX Z 800.; |
518322119 |
US $14.67 |
||
|
26
|
26
207152044 Screw-hex.cap din.933MX Z 600. MX Z 800.; |
207152044 |
US $11.70 |
||
|
27
|
27
233251414 Nut-flange elastic din.6926MX Z 600. MX Z 800.; |
233251414 |
US $5.36 |
||
|
28
|
28
391301700
Rondelle *washer
MX Z 600. MX Z 800.; |
391301700 |
— | ||
|
29
|
29
390910300 Rivet henrob *rivet-henrobMX Z 600. MX Z 800.; |
390910300 |
US $17.75 |
||
|
30
|
30
518323321 Attache siege s*seat bracke weldMX Z 600. MX Z 800.; |
518323321 |
US $11.49 |
||
|
31
|
31
518323173
Attache doub.so*bracket double weld
MX Z 600. MX Z 800.; |
518323173 |
— | ||
|
32
|
32
518322905
Radiateur arr.s*rad.-rear weld.
Includes 32 - 33. MX Z 600. MX Z 800.; |
518322905 |
— | ||
|
33
|
33
518321656
Protecteur *protector
MX Z 600. MX Z 800.; |
518321656 |
— | ||
|
34
|
34
517243800
Pare-chocs *bumper
EUROPE MX Z 600. MX Z 800.; |
517243800 |
— | ||
|
35
|
35
207682044 Screw-hex.flange din.6921MX Z 600. MX Z 800.; |
207682044 |
US $14.80 |
||
|
36
|
36
518322755
Supp.guidon sou*supp-handle weld.
MX Z 600. MX Z 800.; |
518322755 |
— | ||
|
37
|
37
207663544 Screw-hex.flange din.6921MX Z 600. MX Z 800.; |
207663544 |
US $29.25 |
||
|
38
|
38
233261414 Nut-flange elastic din.6926MX Z 600. MX Z 800.; |
233261414 |
US $18.40 |
||
|
39
|
39
518202100 Attache gard.co*brkt-guard beltMX Z 600. MX Z 800.; |
518202100 |
US $15.73 |
||
|
40
|
40
518207500 Renfort *reinforcementMX Z 600. MX Z 800.; |
518207500 |
US $8.38 |
||
|
41
|
41
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 800.; |
390402200 |
US $22 |
||
|
42
|
42
517225900 Washer - flatMX Z 600. MX Z 800.; |
517225900 |
US $2.40 |
||
|
43
|
43
414859400 Bouchon *capMX Z 600. MX Z 800.; |
414859400 |
US $30.10 |
||
|
44
|
44
518322635
Support silenc.*support-muffler
MX Z 600. MX Z 800.; |
518322635 |
— | ||
|
45
|
45
518310400 Supp.silenc.adm*supp-air intakeMX Z 600. MX Z 800.; |
518310400 |
US $13.21 |
||
|
46
|
46
518322031 Attache trousse*bracket-tool kitMX Z 600. MX Z 800.; |
518322031 |
US $5.07 |
||
|
47
|
47
518321569 Guide corde *guide-ropeMX Z 600. MX Z 800.; |
518321569 |
US $11.49 |
||
|
48
|
48
518321570 Attache collier*open clampMX Z 600. MX Z 800.; |
518321570 |
US $9.61 |
||
|
49
|
49
293150103 Pop rivet 3/16MX Z 600. MX Z 800.; |
293150103 |
US $18.25 |
||
|
50
|
50
518322699
Support boyaux *support-hose
MX Z 600. MX Z 800.; |
518322699 |
— | ||
|
51
|
51
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 800.; |
390402200 |
US $22 |
||
|
52
|
52
390402300 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 800.; |
390402300 |
US $50 |
||
|
53
|
53
518319405 Bande *stripMX Z 600. MX Z 800.; |
518319405 |
US $26.21 |
||
|
54
|
54
517225900 Washer - flatMX Z 600. MX Z 800.; |
517225900 |
US $2.40 |
||
|
55
|
55
518321954 Attache panneau*panel-fastenerMX Z 600. MX Z 800.; |
518321954 |
US $48.05 |
