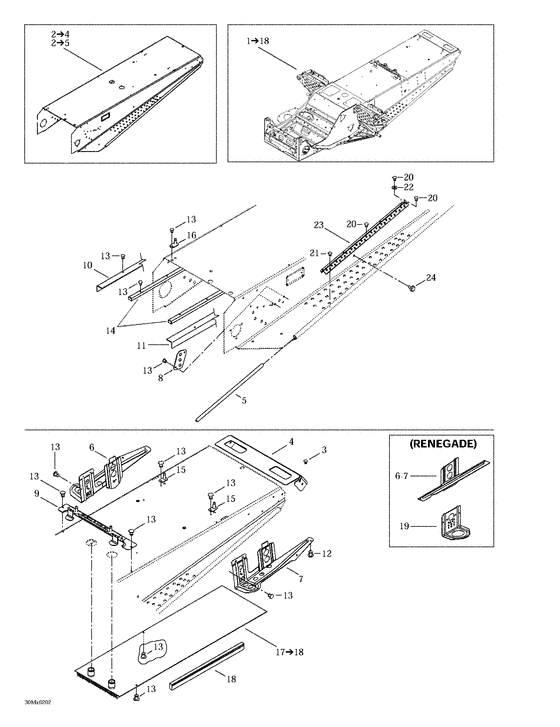

09- frame - rear Diagram Bombardier MX Z
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
518321656
Protecteur *protector
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518321656 |
— | ||
|
|
518322734
Capuchon arr. *cap-rear
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518322734 |
— | ||
|
|
518322396
Renf.tunnel ga.*reinf-frame lh
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518322396 |
— | ||
|
|
518322627
Attache susp.dr*brkt-slide rh
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518322627 |
— | ||
| replacement | |||||
|
|
518323280
Attache susp.dr*slide bracket rh
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518323280 |
— | ||
|
|
518322628
Attache susp.ga*bracket-slide lh
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518322628 |
— | ||
|
|
518319405 Bande *stripMX Z 600. MX Z 700. MX Z 800.; |
518319405 |
US $26.21 |
||
|
|
518322905
Radiateur arr.s*rad.-rear weld.
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518322905 |
— | ||
|
|
518322395
Renf.tunnel dr.*reinf-frame rh
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518322395 |
— | ||
|
1
|
1
518323011
Chassis *frame
Includes 1 - 18. MX Z 500. MX Z 600.; |
518323011 |
— | ||
|
1
|
1
518323010
Chassis *frame
Includes 1 - 18. MX Z 700. MX Z 800.; |
518323010 |
— | ||
|
1
|
1
518323016
Chassis *frame
Includes 1 - 18. MX Z 600.; |
518323016 |
— | ||
|
1
|
1
518323015
Chassis *frame
Includes 1 - 19. MX Z 700. MX Z 800.; |
518323015 |
— | ||
|
2
|
2
518323025
Tunnel forme *frame-forming
Includes 2 - 4. (RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518323025 |
— | ||
|
2
|
2
518322534
Tunnel forme *frame-forming
Includes 2 - 5.; |
518322534 |
— | ||
|
3
|
3
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
4
|
4
518321303 Capuchon arr. *cap-rear |
518321303 |
US $54.03 |
||
|
5
|
5
518304746 Renf.marche-pie*reinf.-foot. |
518304746 |
US $31.59 |
||
|
6
|
6
518322742
Attache susp.dr*brkt-slide rh
|
518322742 |
— | ||
| replacement | |||||
|
6
|
6
518323315 Attache susp.dr*rh slide bracket weld |
518323315 |
US $62.17 |
||
|
7
|
7
518322745
Attache susp.ga*bracket-slide lh
|
518322745 |
— | ||
| replacement | |||||
|
7
|
7
518323318 Attache susp.ga*lh slide bracket |
518323318 |
US $58.09 |
||
|
8
|
8
518201321 Plaque renfort *plate-reinf. |
518201321 |
US $8.38 |
||
|
9
|
9
518321510 Att.reserv.p. *brkt-tank paint |
518321510 |
US $23.41 |
||
|
10
|
10
518321561
Renf.tunnel dr.*reinf-frame rh
|
518321561 |
— | ||
|
11
|
11
518321562
Renf.tunnel ga.*reinf-frame lh
|
518321562 |
— | ||
|
12
|
12
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
13
|
13
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
14
|
14
518321543
Protect. tunnel*protect.-frame
(SPORT/TRAIL/ADENALINE); |
518321543 |
— | ||
|
15
|
15
518319730
Attache siege s*brkt-seat weld
|
518319730 |
— | ||
| replacement | |||||
|
15
|
15
518323321 Attache siege s*seat bracke weld |
518323321 |
US $11.49 |
||
|
16
|
16
518321604
Guide soude *guide-weld.
|
518321604 |
— | ||
|
17
|
17
518322901
Radiateur arr.s*rad.-rear weld.
Includes 17 - 18.; |
518322901 |
— | ||
|
18
|
18
518321655
Protecteur *protector
|
518321655 |
— | ||
| replacement | |||||
|
18
|
18
415012300 Protecteur *protector |
415012300 |
US $18.33 |
||
|
19
|
19
518321495
Attache avant *bracket-front
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
518321495 |
— | ||
|
20
|
20
390402200 Rivet-pop 3/16 *rivet-pop 3/16(ADRENALINE/RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
390402200 |
US $22 |
||
|
21
|
21
390402300 Rivet-pop 3/16 *rivet-pop 3/16(ADRENALINE/RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
390402300 |
US $50 |
||
|
22
|
22
517225900 Washer - flat(ADRENALINE/RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
517225900 |
US $2.40 |
||
|
23
|
23
518321714 Bande antideap.*stripMX Z 600. MX Z 700. MX Z 800.; |
518321714 |
US $19.92 |
||
|
24
|
24
518321954 Attache panneau*panel-fastener |
518321954 |
US $48.05 |
||
