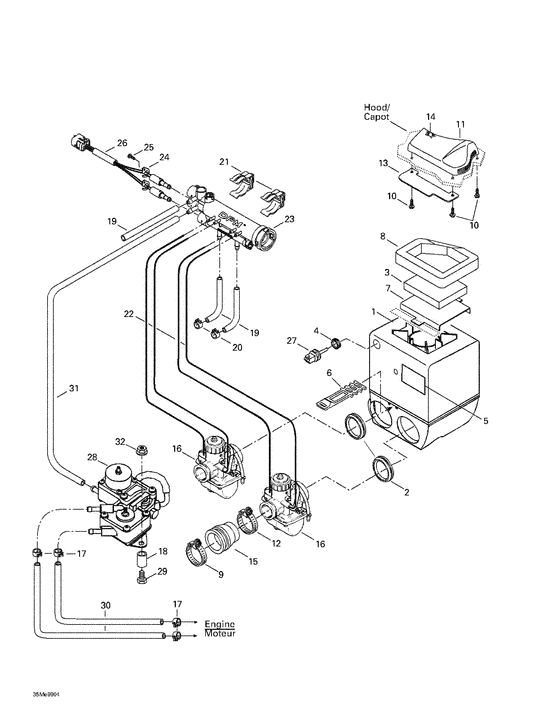

02- air intake system Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
517292800
Deflecteur *deflector
MX Z 670 HO.; |
517292800 |
— | ||
|
|
512059047
Adapteur carb. *adaptor-carb.
MX Z 670 HO.; |
512059047 |
— | ||
|
|
403138559
Carb.vm-44 *carb.-vm44
MX Z 670 HO.; |
403138559 |
— | ||
|
|
508000022
Silenc.adm.ass.*intake-air ass
MX Z 670 HO.; |
508000022 |
— | ||
|
|
403138522
Carb.vm-38 *carb-vm-38
MX Z 500.; |
403138522 |
— | ||
|
|
403138560
Carb.vm-44 *carb-vm-44
MX Z 670 HO.; |
403138560 |
— | ||
|
|
570049000
Adap.admis.vm40*adap-air vm-40
MX Z 670 HO.; |
570049000 |
— | ||
|
|
414532800
Collet *collar
MX Z 670 HO.; |
414532800 |
— | ||
|
1
|
1
508000026
Silenc.adm.ass.*intake-air ass
Includes 1 - 8. MX Z 500.; |
508000026 |
— | ||
|
2
|
2
570048900
Adap.admis.vm38*adap-air vm-38
MX Z 500.; |
570048900 |
— | ||
|
3
|
3
415014800 Filtre a air *filter-air |
415014800 |
US $12.19 |
||
|
4
|
4
570065500 Anneau *grommetMX Z 670 HO.; |
570065500 |
US $14.25 |
||
|
5
|
5
516000130
Etiquette att. *caution-label
|
516000130 |
— | ||
|
6
|
6
570069700
Loquet *latch
|
570069700 |
— | ||
|
7
|
7
517283900 Grille adm. *grill-intake |
517283900 |
US $9.71 |
||
|
8
|
8
415105900
Mousse ext. *foam-lower
|
415105900 |
— | ||
|
9
|
9
414532800
Collet *collar
|
414532800 |
— | ||
|
10
|
10
732603009
Screw-plastite hex.wr.hd.
|
732603009 |
— | ||
| replacement | |||||
|
10
|
10
243141640
Screw-plastite hex.wr.hd.
|
243141640 |
— | ||
|
11
|
11
572077900 Couvercle adm. *cover-intake |
572077900 |
US $14.25 |
||
|
12
|
12
415038400
Collet *collar
MX Z 500.; |
415038400 |
— | ||
| replacement | |||||
|
12
|
12
293650156
Bride serrage *clamp-gemi
MX Z 500.; |
293650156 |
— | ||
|
13
|
13
517298800
Deflecteur *deflector
MX Z 500.; |
517298800 |
— | ||
|
14
|
14
414972600 Filtre a air *filter-air |
414972600 |
US $42.81 |
||
|
15
|
15
570067900
Adap.carb.vm-38*adap-carb.vm38
MX Z 500.; |
570067900 |
— | ||
|
16
|
16
403138521
Carb.vm-38 *carb-vm-38
MX Z 500.; |
403138521 |
— | ||
|
17
|
17
414415200 Bride a ressort*clamp-springMX Z 670 HO.; |
414415200 |
US $11.70 |
||
|
18
|
18
512058934
Entretoise *spacer
MX Z 670 HO.; |
512058934 |
— | ||
|
19
|
19
415080200
Boyau polyure *polyurethane hose
MX Z 670 HO.; |
415080200 |
— | ||
|
20
|
20
414554800 Bride a ressort*clamp-springMX Z 670 HO.; |
414554800 |
US $11.70 |
||
|
21
|
21
512058919 Support *supportMX Z 670 HO.; |
512058919 |
US $14.25 |
||
|
22
|
22
404161814
Durite *hose
MX Z 670 HO.; |
404161814 |
— | ||
| replacement | |||||
|
22
|
22
404161880 Boyau *hoseMX Z 670 HO.; |
404161880 |
US $60.13 |
||
|
23
|
23
512058922
Collect.pres.as*manif.-pres.assy
Includes 23 - 26. MX Z 670 HO.; |
512058922 |
— | ||
| replacement | |||||
|
23
|
23
512059571
Collecteur pres*manifold-press
Includes 23 - 26. MX Z 670 HO.; |
512059571 |
— | ||
|
24
|
24
415061600 Barrure electr.*lock-solenoidMX Z 670 HO.; |
415061600 |
US $8.13 |
||
|
25
|
25
211000028
Screw-pt.hex.flange k40 x 10
MX Z 670 HO.; |
211000028 |
— | ||
| replacement | |||||
|
25
|
25
241140060 Screw-pt.hex.flange k40 x 10MX Z 670 HO.; |
241140060 |
US $9.60 |
||
|
26
|
26
515175219
Cablage collect*harness-collector
MX Z 670 HO.; |
515175219 |
— | ||
|
27
|
27
270600000 Capteur temp. *sensor-airMX Z 670 HO.; |
270600000 |
US $88.69 |
||
|
28
|
28
415109000
Pompe a air *pump-air
MX Z 670 HO.; |
415109000 |
— | ||
|
29
|
29
222053065
Screw-hex.cap din.931
MX Z 670 HO.; |
222053065 |
— | ||
| replacement | |||||
|
29
|
29
207053044 Screw-hex.cap din.931MX Z 670 HO.; |
207053044 |
US $15.10 |
||
|
30
|
30
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
MX Z 670 HO.; |
415079800 |
— | ||
|
31
|
31
270000306
Boyau 4.5 mm *hose-4.5 mm
MX Z 670 HO.; |
270000306 |
— | ||
|
32
|
32
228751045
Nut-flange elastic din.6926
MX Z 670 HO.; |
228751045 |
— | ||
| replacement | |||||
|
32
|
32
233251414 Nut-flange elastic din.6926MX Z 670 HO.; |
233251414 |
US $5.36 |
||
