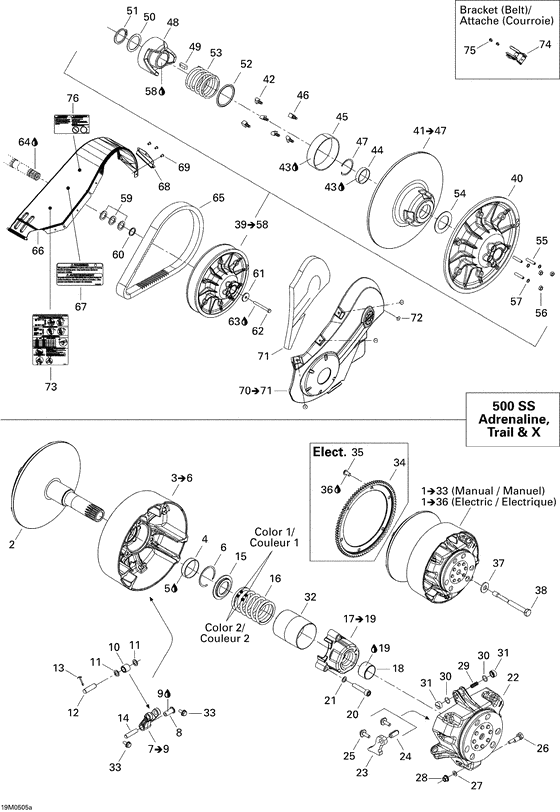

05- pulley system 500ss Diagram Bombardier MX Z
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
417222294
Flasque fixe as*flange-fixe ass
|
417222294 |
— | ||
| replacement | |||||
|
2
|
2
417222937 Flasque fixe as*flange-fixe ass |
417222937 |
US $463.30 |
||
|
3
|
3
417222181 Flasque coul.as*flange-slid.assyIncludes 3 to 6; |
417222181 |
US $231.63 |
||
|
4
|
4
417222758 Douille *bushing |
417222758 |
US $24.82 |
||
|
5
|
5
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
6
|
6
293370037 Anneau retenue *circlip |
293370037 |
US $3.64 |
||
|
7
|
7
417222671 Levier ass. *lever-assyIncludes 7 to 9; |
417222671 |
US $54.71 |
||
|
8
|
8
417222633
Douille
|
417222633 |
— | ||
|
9
|
9
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
10
|
10
417003900
Rouleau ass. *roller-ass.
|
417003900 |
— | ||
| replacement | |||||
|
10
|
10
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
11
|
11
417004302 Rondelle butee *washer-stopper |
417004302 |
US $18.72 |
||
|
12
|
12
417004308 Goupille *pin |
417004308 |
US $45.81 |
||
|
13
|
13
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
14
|
14
417009202 Axe de levier *axle-lever |
417009202 |
US $4.79 |
||
| replacement | |||||
|
14
|
14
417223164 LEVER AXLE |
417223164 |
US $4.81 |
||
|
15
|
15
417222312 Siege ressort *seat-spring |
417222312 |
US $9.50 |
||
|
16
|
16
417222371 Ressort *spring |
417222371 |
US $35.65 |
||
|
17
|
17
417007500 Couv.ressort as*cover-spring assy.Includes 17 to 19; |
417007500 |
US $44.83 |
||
|
18
|
18
417009204 Douille *bushing |
417009204 |
US $19.52 |
||
|
19
|
19
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
20
|
20
205084044 Screw-socket hd.din.912 |
205084044 |
US $18.45 |
||
|
21
|
21
250200009 Ribbed lock washer 8mm bn791 |
250200009 |
US $27.20 |
||
|
22
|
22
417222213
Cuvette regul.a*govern.cup assy.
|
417222213 |
— | ||
|
23
|
23
417222515 Rampe 412ramp-412 |
417222515 |
US $100.83 |
||
|
24
|
24
250400009
Goupille ress. *pin-rolled
|
250400009 |
— | ||
| replacement | |||||
|
24
|
24
250400050 SPRING PIN M10 |
250400050 |
US $11.88 |
||
|
25
|
25
250000059 Screw-hex.flange m6 x 18 |
250000059 |
US $3.89 |
||
|
26
|
26
417005500
Vis calibration*screw-calib.
|
417005500 |
— | ||
|
27
|
27
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
28
|
28
233061414 Nut-flange hexagonal din.6927 |
233061414 |
US $21.40 |
||
|
29
|
29
417005700 Ressort *spring |
417005700 |
US $5.25 |
||
|
30
|
30
732401030 Joint torique *o-ring |
732401030 |
US $3.20 |
||
|
31
|
31
417005800
Glissiere *shoe-slider
|
417005800 |
— | ||
| replacement | |||||
|
31
|
31
417223021 Glissiere *shoe-slider |
417223021 |
from US $7.96 |
||
|
32
|
32
417009205 Protecteur *guard |
417009205 |
US $19.31 |
||
|
33
|
33
210361296
Screw-forming hex.hd.black oxide
|
210361296 |
— | ||
| replacement | |||||
|
33
|
33
250000412 SERRATED HEX. FLANGE BOLT S.GR |
250000412 |
US $32.76 |
||
|
34
|
34
861790500
Ens,couronne la*kit ring gear
Includes 34 to 35, 500SS Electric; |
861790500 |
— | ||
| replacement | |||||
|
34
|
34
861791800 Ens,couronne la*kit ring gearIncludes 34 to 35, 500SS Electric; |
861791800 |
US $189.69 |
||
|
35
|
35
236281684 Screw-forming bn.hd.torx500SS Electric; |
236281684 |
US $53.20 |
||
|
36
|
36
293800005 Loctite 271 *loctite-271500SS Electric; |
293800005 |
US $31.18 |
||
|
37
|
37
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
38
|
38
417120000 Boulon *bolt-pulley drive |
417120000 |
US $72.30 |
||
|
40
|
40
417126499
Flasque fixe us*flange-fix.mach
|
417126499 |
— | ||
|
41
|
41
417126763
Flasque coul.as*flange-slid.as
Includes 41 to 47; |
417126763 |
— | ||
|
42
|
42
417126538
Glissiere avant*shoe-slider front
|
417126538 |
— | ||
|
43
|
43
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
45
|
45
417126562 Coussinet dp *cushion-dp |
417126562 |
US $31.59 |
||
|
46
|
46
417126539
Glissiere arr. *shoe-slider rear
|
417126539 |
— | ||
|
47
|
47
371911200 Anneau retenue *circlip |
371911200 |
US $21.25 |
||
|
48
|
48
417126747
Came usinee *cam machined
|
417126747 |
— | ||
|
49
|
49
414820800 Clavette *key |
414820800 |
US $35.45 |
||
|
50
|
50
417126555
Rondelle *washer
|
417126555 |
— | ||
|
51
|
51
371903100 Circlip *circlip |
371903100 |
US $51.35 |
||
|
52
|
52
417126771
Butee pivotante*swivel-abutment
|
417126771 |
— | ||
|
53
|
53
417126801 Ressort *spring |
417126801 |
US $38.71 |
||
|
54
|
54
504141900 Rondelle appuie*washer-thrust |
504141900 |
US $8.13 |
||
|
55
|
55
206263044 Screw-set socket din.913 |
206263044 |
US $22.10 |
||
|
56
|
56
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
57
|
57
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
58
|
58
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
59
|
59
417300252 Entretoise *spacer |
417300252 |
US $5.07 |
||
|
59
|
59
417300265 Entretoise *spacer |
417300265 |
US $14.20 |
||
|
59
|
59
504112000 Cale epaisseur *shim |
504112000 |
US $30.35 |
||
|
60
|
60
504149100 Entretoise *spacer |
504149100 |
US $11.17 |
||
|
61
|
61
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
62
|
62
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
63
|
63
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
64
|
64
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
65
|
65
417300197 Courroie *belt-drive |
417300197 |
US $150.13 |
||
|
66
|
66
417300213 Garde courroie *belt guard |
417300213 |
US $84.61 |
||
|
67
|
67
516002670 Etiquette secur*security-label |
516002670 |
US $0.02 |
||
|
68
|
68
417300216 Attache gard.co*belt guard brkt |
417300216 |
US $8.13 |
||
|
69
|
69
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
70
|
70
417300248
Prot.lateral *side protector assy
Includes 70 to 71; |
417300248 |
— | ||
| replacement | |||||
|
70
|
70
417300301
Prot.lateral *side protector assy
Includes 70 to 71; |
417300301 |
— | ||
|
71
|
71
417300246 Mousse *foam |
417300246 |
US $8.13 |
||
|
72
|
72
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
73
|
73
516001639
Decal.ajust. *decal-ajust.
|
516001639 |
— | ||
|
74
|
74
517281905 Attache *bracket |
517281905 |
US $15.27 |
||
|
75
|
75
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
76
|
76
516002674 Etiquette secur*security-label |
516002674 |
US $0.02 |
||
