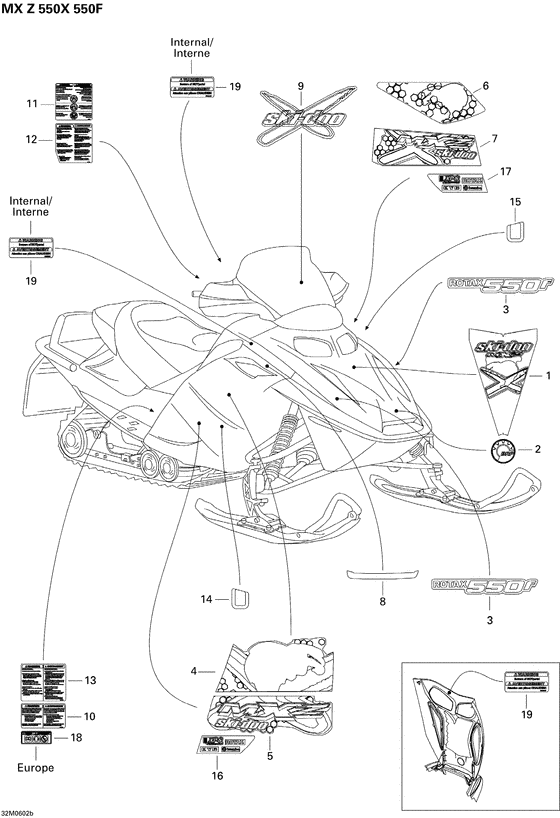

09- decals 550x Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
516002781
Decal. capot *decal. hood
|
516002781 |
— | ||
|
2
|
2
219902468
Brp logo 48 mm
|
219902468 |
— | ||
| replacement | |||||
|
2
|
2
516008738 EMBLEM LOGO BRP |
516008738 |
US $17.15 |
||
|
3
|
3
516002778
Decal. capot *decal. hood
|
516002778 |
— | ||
|
4
|
4
516002786
Decal.lat. dr. *decal-side rh
|
516002786 |
— | ||
|
5
|
5
516002790
Decal.lat.inf.d*decal-lower rh
|
516002790 |
— | ||
|
6
|
6
516002797
Decal.lat. ga. *decal-side lh
|
516002797 |
— | ||
|
7
|
7
516002798
Decal.lat.inf.g*decal-lower lh
|
516002798 |
— | ||
|
8
|
8
516002745
Decal. grillage*decal
|
516002745 |
— | ||
|
9
|
9
516003025
Decal pare-br *decal windshi
|
516003025 |
— | ||
|
10
|
10
516003026 Security decal |
516003026 |
US $0.02 |
||
|
11
|
11
516002908 Security decal |
516002908 |
US $0.02 |
||
|
12
|
12
516003029 Security decal |
516003029 |
US $0.02 |
||
|
13
|
13
516003024 Security decal |
516003024 |
US $0.02 |
||
|
14
|
14
516001910 Decalque dr. *rh decal. |
516001910 |
US $9.13 |
||
|
15
|
15
516001911 Decalque ga. *lh decal. |
516001911 |
US $9.13 |
||
|
16
|
16
516002796
Decalque droit *rh.decal
|
516002796 |
— | ||
|
17
|
17
516002795
Decalque gauche*lh.decal
|
516002795 |
— | ||
|
18
|
18
516003027 Decal pictogram eurEurope; |
516003027 |
US $0.02 |
||
|
19
|
19
516002965 Security label - hot parts |
516002965 |
US $0.02 |
||
