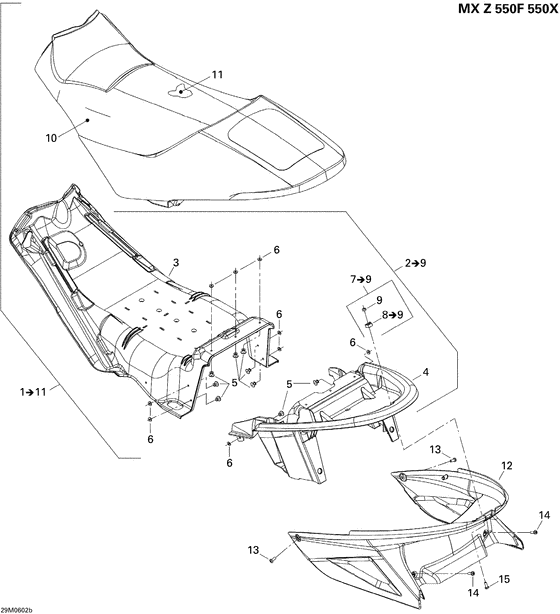

09- seat mx z 550x Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
510004582 Base siege ass.*seat base assy |
510004582 |
US $259.05 |
||
|
5
|
5
390409600
Rivet-pop 3/16 *rivet-pop 3/16
|
390409600 |
— | ||
|
6
|
6
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
7
|
7
708000046 Logement ecrou *housing-nut as |
708000046 |
US $7.31 |
||
|
8
|
8
269500252 Logement ecrou *housing-nut as |
269500252 |
US $19.22 |
||
|
9
|
9
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
10
|
10
510004653 Housse de siege*seat cover |
510004653 |
US $360.01 |
||
|
11
|
11
510004216
Mousse siege pu*foam-seat pu
|
510004216 |
— | ||
|
12
|
12
510004629
Coffre *trunk
|
510004629 |
— | ||
|
13
|
13
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
||
|
14
|
14
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
15
|
15
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
