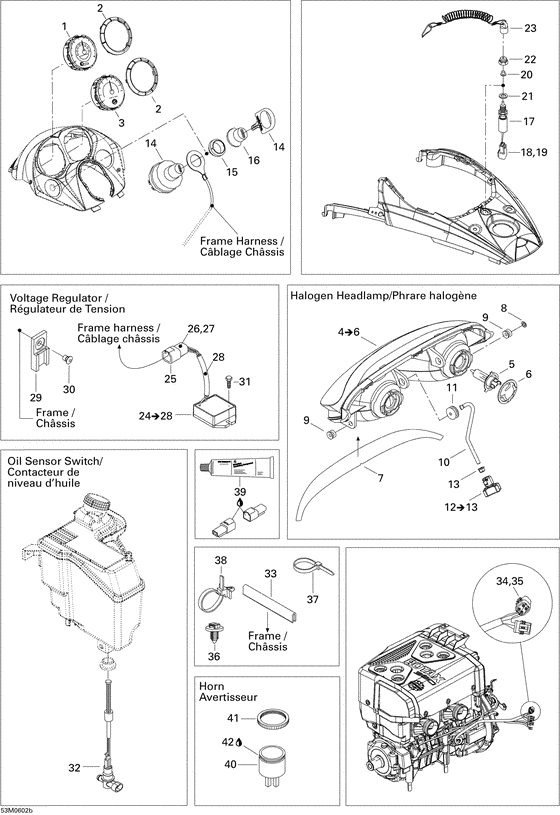

10- electrical accessories mx z Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176301 Ind.vitesse *speedometer |
515176301 |
US $408.97 |
||
|
2
|
2
515176242 Ring - gauge |
515176242 |
US $14.55 |
||
| replacement | |||||
|
2
|
2
515179005 Gauge Ring |
515179005 |
US $14.64 |
||
|
3
|
3
515176303 Compte-tours *tachometer |
515176303 |
US $166.21 |
||
|
4
|
4
515176311 Phare halogene *headlamp-halo.Includes 4 to 6; |
515176311 |
US $264.15 |
||
|
5
|
5
515176274 Ampoule halogen*bulb-hal.h4 |
515176274 |
US $25.31 |
||
|
6
|
6
515176385 Porte ampoule *bulb holder |
515176385 |
US $12.58 |
||
|
7
|
7
516001328 Decalque phare *decal-headlamp |
516001328 |
US $5.07 |
||
|
8
|
8
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
9
|
9
515175760 Coussinet phare*bushing-headlamp |
515175760 |
US $38.85 |
||
|
10
|
10
515175521 Tige ajustement*rod-adjuster |
515175521 |
US $16.76 |
||
|
11
|
11
415100800 Grommet |
415100800 |
US $5.20 |
||
|
12
|
12
515175975 Manette *handleIncludes 12 to 13; |
515175975 |
US $9.40 |
||
|
13
|
13
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
14
|
14
410113602
Inter.allumage *switch-ignit.
|
410113602 |
— | ||
| replacement | |||||
|
14
|
14
515176548
Starter switch, 3 pos.
|
515176548 |
— | ||
|
15
|
15
410112100 Nut-face |
410112100 |
US $15.73 |
||
|
16
|
16
570013700 Boot - switch |
570013700 |
US $52.35 |
||
|
17
|
17
515175653 Inter.frein *switch-brake |
515175653 |
US $21.42 |
||
|
18
|
18
515176297
Logement pt femelle*housing ft female
|
515176297 |
— | ||
|
19
|
19
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
20
|
20
570151100 Cap.plongeur *cap-plunger |
570151100 |
US $54.25 |
||
|
22
|
22
515145900 Ecrou inter. *nut-switch |
515145900 |
US $52.35 |
||
|
23
|
23
515151500
Capuchon ass. *cap-assy.
|
515151500 |
— | ||
| replacement | |||||
|
23
|
23
515176463 Capuchon ass. *cap-assy. |
515176463 |
US $44.10 |
||
|
24
|
24
515176188 Regu. tension *regulator-voltIncludes 24 to 28; |
515176188 |
US $144.81 |
||
|
25
|
25
278001477 Bloc 4 circ.fem*housing-tab |
278001477 |
US $62.27 |
||
|
26
|
26
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
27
|
27
278001478 Cale 4 circ.mal*wedge-4 ways m |
278001478 |
US $28.80 |
||
|
28
|
28
710000497
Gaine *protector tube
|
710000497 |
— | ||
|
29
|
29
515175917 Clip *clip |
515175917 |
US $11.17 |
||
|
30
|
30
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
31
|
31
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
32
|
32
515176327 Conct.niveau *switch-level |
515176327 |
US $64.23 |
||
|
33
|
33
509000263 Garniture *trime |
509000263 |
US $7.09 |
||
|
34
|
34
278001473 Bloc 4 circ.mal*housing-tab |
278001473 |
US $30.19 |
||
|
35
|
35
278001474 Cale 4 circ.mal*wedge-4 ways m |
278001474 |
US $4.49 |
||
|
36
|
36
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
37
|
37
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
37
|
37
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
38
|
38
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
39
|
39
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
40
|
40
515176035 9vertisseur *horn |
515176035 |
US $95.85 |
||
|
41
|
41
414805101 Ecrou plastique*nut-plastic. |
414805101 |
US $3.83 |
||
|
42
|
42
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
