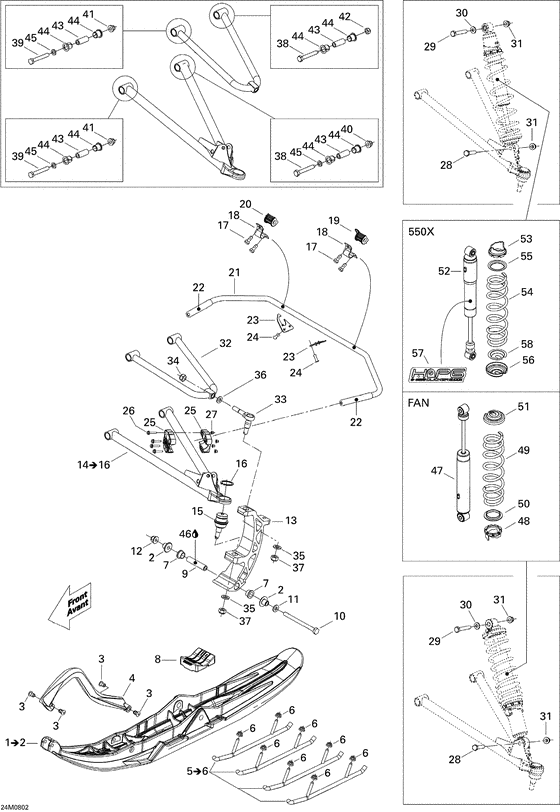

07- front suspension and ski x Diagram Bombardier MX Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
505072154
Ski pilot5.7dr *pilotski5.7rh
Includes 1 to 2; |
505072154 |
— | ||
|
1
|
1
505072155
Ski pilot5.7ga.*pilotski5.7lh
Includes 1 to 2; |
505072155 |
— | ||
|
2
|
2
505071781 Coussinet *cushion |
505071781 |
US $18.16 |
||
|
3
|
3
505071812 Attache *retainer |
505071812 |
US $5.44 |
||
|
4
|
4
505070917 Poignee jaune *handle-yellow550X; |
505070917 |
US $33.61 |
||
|
5
|
5
860511400
Ens.lisse exped*kit-runner expedskipilot
Includes 5 to 6; |
860511400 |
— | ||
|
6
|
6
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
7
|
7
505070954
Coussinet *cushion
|
505070954 |
— | ||
| replacement | |||||
|
7
|
7
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
8
|
8
505071779 Butee de ski *stopper-ski |
505071779 |
US $14.67 |
||
|
9
|
9
506133300 Entretoise *spacer |
506133300 |
US $22.44 |
||
|
10
|
10
230003044
Screw-hex.cap m10 x 130 iso.4014
|
230003044 |
— | ||
| replacement | |||||
|
10
|
10
230100044 Screw-hex.cap iso.4017 |
230100044 |
US $14.05 |
||
|
11
|
11
732900049 Rondelle *washer |
732900049 |
US $14.50 |
||
|
12
|
12
732610084 Nut-flange flexloc m10 |
732610084 |
US $44.35 |
||
|
13
|
13
505071232 Jambe ski usine*leg-ski mach. |
505071232 |
US $215.17 |
||
|
14
|
14
860512500 Bras inf.ass.d.*lower ars rh ass.Includes 14 to 16; |
860512500 |
US $254.97 |
||
|
14
|
14
860512400 Bras inf.ass.g.*lower ars lh ass.Includes 14 to 16; |
860512400 |
US $254.97 |
||
|
15
|
15
505072048
Joint rotule *ball joint
|
505072048 |
— | ||
| replacement | |||||
|
15
|
15
505073636 BALL JOINT |
505073636 |
US $61.15 |
||
|
16
|
16
293370035 Circlip *circlip |
293370035 |
US $34 |
||
|
17
|
17
250000118 Screw-hex.cap with nylon patch |
250000118 |
US $14.50 |
||
|
18
|
18
506095800 Bride *clamp |
506095800 |
US $34.10 |
||
|
19
|
19
505070664 Coussinet stab.*bushing-torsion bar |
505070664 |
US $9.78 |
||
|
20
|
20
505070912 Coussinet stab.*bushing-torsion bar |
505070912 |
US $9.78 |
||
|
21
|
21
505070948 Stabilisateur p*stabilisator-p |
505070948 |
US $188.34 |
||
|
22
|
22
505071039 Embout stabilis*sway-bar end |
505071039 |
US $12.19 |
||
|
23
|
23
505071253 Bouchon *plug-end |
505071253 |
US $3.18 |
||
|
24
|
24
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
25
|
25
505071268
Demi couliss.dr*half-slider rh
|
505071268 |
— | ||
|
25
|
25
505071269
Demi couliss.ga*half-slider lh
|
505071269 |
— | ||
|
26
|
26
207652544 Screw-hex.flange din.6921 |
207652544 |
US $0.65 |
||
|
27
|
27
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
28
|
28
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
29
|
29
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
30
|
30
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
31
|
31
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
32
|
32
505071756 Bras sup. *arm-upper |
505071756 |
US $194.79 |
||
|
33
|
33
505072257 Joint rotule su*joint-ball upp |
505072257 |
US $46.60 |
||
|
34
|
34
250100089 Ecrou m12 *nut m12 |
250100089 |
US $3.60 |
||
|
35
|
35
234021410 Washer-flat din.125a |
234021410 |
US $9.50 |
||
|
36
|
36
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
37
|
37
250100089 Ecrou m12 *nut m12 |
250100089 |
US $3.60 |
||
|
38
|
38
250000216
Cone screw m10 x 75
|
250000216 |
— | ||
|
39
|
39
250000218 Screw-hex.cap m10 x 75 iso.876 |
250000218 |
US $10.69 |
||
|
40
|
40
250100088 Ecrou m10 *nut m10 |
250100088 |
US $4.10 |
||
|
41
|
41
250100088 Ecrou m10 *nut m10 |
250100088 |
US $4.10 |
||
|
42
|
42
232501416 Nut-stop elastic din.985Left; |
232501416 |
US $9.60 |
||
|
42
|
42
250100088 Ecrou m10 *nut m10Right; |
250100088 |
US $4.10 |
||
|
43
|
43
505070567 Douille *bushing |
505070567 |
US $14.67 |
||
|
44
|
44
505070566 Coussinet *bushing |
505070566 |
US $2.30 |
||
|
45
|
45
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
46
|
46
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
52
|
52
505072189 Amort. avant *front shock550X, Europe; |
505072189 |
US $451.81 |
||
|
52
|
52
505071993 Amort. avant *front shock550X, North America; |
505071993 |
US $440.62 |
||
|
53
|
53
505070150
Came 45 degres *cam 45 degres
550X; |
505070150 |
— | ||
| replacement | |||||
|
53
|
53
505073625 ADJUSTEMENT CAM550X; |
505073625 |
US $13.75 |
||
|
54
|
54
505071833 Ressort peint *spring- painted550X; |
505071833 |
US $61.15 |
||
|
55
|
55
503191872 Guide ressort *guide-spring550X; |
503191872 |
from US $2.87 |
||
|
56
|
56
503140600
Butee ressort *stopper-spring
550X; |
503140600 |
— | ||
| replacement | |||||
|
56
|
56
503191611
Butee ressort *stopper-spring
550X; |
503191611 |
— | ||
|
57
|
57
505072222 Decalque hpg *hpg decal550X; |
505072222 |
US $9.13 |
||
|
58
|
58
503141600
Capuchon *cap
550X; |
503141600 |
— | ||
