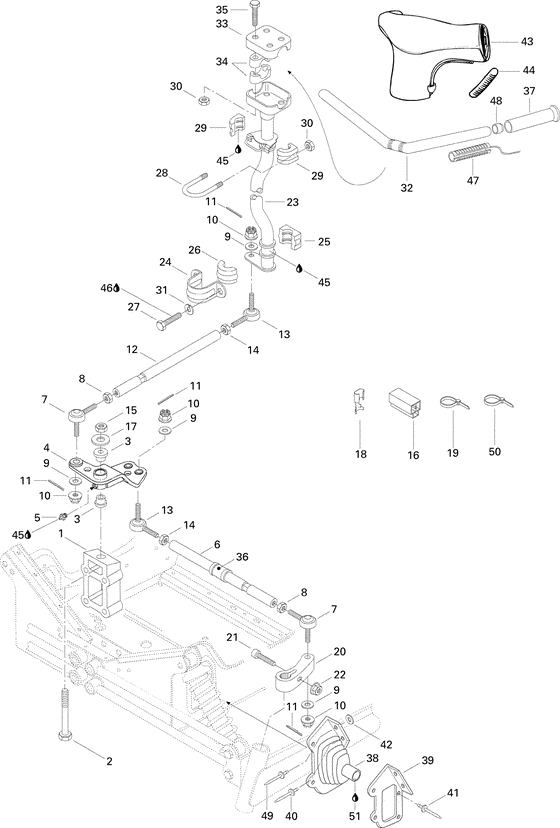

07- steering system Diagram Bombardier MX Z
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
506121400
Bloc attache us*block-mach.
|
506121400 |
— | ||
|
2
|
2
222028565
Screw-hex.cap iso.4014
|
222028565 |
— | ||
| replacement | |||||
|
2
|
2
207028544
Screw-hex.cap iso.4014
|
207028544 |
— | ||
|
3
|
3
414794700
Coussinet *cushion
|
414794700 |
— | ||
|
4
|
4
506133000
Bras de pivot
|
506133000 |
— | ||
|
5
|
5
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
6
|
6
506130200
Barre accoupl. *rod-tie
|
506130200 |
— | ||
|
7
|
7
414799200
New Genuine Part
|
414799200 |
— | ||
|
8
|
8
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
9
|
9
224001211
Washer-flat din.125a
|
224001211 |
— | ||
| replacement | |||||
|
9
|
9
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
10
|
10
228101045
New Genuine Part
|
228101045 |
— | ||
|
11
|
11
371801000 Goupille fendue*pin-cotter |
371801000 |
US $5.30 |
||
|
12
|
12
506110800
Barre accoupl. *rod-tie
|
506110800 |
— | ||
|
13
|
13
414799300
New Genuine Part
|
414799300 |
— | ||
|
14
|
14
732610011
Nut-jam hexagonal lh.
|
732610011 |
— | ||
| replacement | |||||
|
14
|
14
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
15
|
15
228521045
Nut-stop elastic din.985
|
228521045 |
— | ||
| replacement | |||||
|
15
|
15
232521414 Nut-stop elastic din.985 |
232521414 |
US $13.95 |
||
|
16
|
16
409204300
Logement femel.*housing-female
|
409204300 |
— | ||
|
17
|
17
224021251
Washer-flat din.125a
|
224021251 |
— | ||
| replacement | |||||
|
17
|
17
234021410 Washer-flat din.125a |
234021410 |
US $9.50 |
||
|
18
|
18
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
19
|
19
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
20
|
20
506125700
Bras de direction dr
|
506125700 |
— | ||
|
20
|
20
506125800
Bras de direction ga
|
506125800 |
— | ||
|
21
|
21
222983565
Screw-socket hd.din.912
|
222983565 |
— | ||
| replacement | |||||
|
21
|
21
205083544 Screw-socket hd.din.912 |
205083544 |
US $8.65 |
||
|
22
|
22
228781045
Nut-flange elastic din.6926
|
228781045 |
— | ||
| replacement | |||||
|
22
|
22
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
23
|
23
506127500
Arbre de direction
|
506127500 |
— | ||
|
24
|
24
517126200
Support retenue*support-retainer
|
517126200 |
— | ||
|
25
|
25
572064400 Douille *bushing |
572064400 |
US $6.07 |
||
|
26
|
26
572064500 Douille *bushing |
572064500 |
US $6.07 |
||
|
27
|
27
222082065
Screw-hex.cap din.933
|
222082065 |
— | ||
| replacement | |||||
|
27
|
27
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
28
|
28
506060600 Bride en u *clamp-u |
506060600 |
US $17.88 |
||
|
29
|
29
572067100 Demi-douille *half-bushing |
572067100 |
US $24.44 |
||
|
30
|
30
228581045
Nut-stop elastic din.985
|
228581045 |
— | ||
| replacement | |||||
|
30
|
30
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
31
|
31
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
31
|
31
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
32
|
32
506125900
Guidon *bar-handle
|
506125900 |
— | ||
|
33
|
33
506055400
Bride direction*clamp-steering
|
506055400 |
— | ||
|
34
|
34
414491600
Support guidon *support-steer.
|
414491600 |
— | ||
| replacement | |||||
|
34
|
34
506151622
Support guidon *steering support
|
506151622 |
— | ||
|
35
|
35
222085565
Screw-hex.cap din.931
|
222085565 |
— | ||
| replacement | |||||
|
35
|
35
207085544 Screw-hex.cap din.931 |
207085544 |
US $21.60 |
||
|
36
|
36
572036500 Douille *bushing |
572036500 |
US $8.55 |
||
|
37
|
37
572061700
Gaine poignee *grip-handle
|
572061700 |
— | ||
| replacement | |||||
|
37
|
37
506151530 Gaine dr. *grip-rh 6-1/2 |
506151530 |
US $29.34 |
||
|
38
|
38
570024800
Cap.timon.dr. *cap-rod tie rh
|
570024800 |
— | ||
|
38
|
38
570024900
Cap.timon.ga. *cap-rod tie lh
|
570024900 |
— | ||
|
39
|
39
517241200
Plaque cap.dr. *plate-cap.rh
|
517241200 |
— | ||
|
39
|
39
517241300 Plaque cap.ga. *plate-cap.lh |
517241300 |
US $11.17 |
||
|
40
|
40
390909400
Rivet-pop 3/16 *rivet-pop 3/16
|
390909400 |
— | ||
| replacement | |||||
|
40
|
40
390906800 Rivet-pop 3/16 *rivet-pop 3/16 |
390906800 |
US $62 |
||
|
41
|
41
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
42
|
42
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
43
|
43
572083000
Couss.securite *pad-steering
|
572083000 |
— | ||
| replacement | |||||
|
43
|
43
572084100
Couss.securite *pad-steering black
|
572084100 |
— | ||
|
44
|
44
572072400
Mortaise *keyway
|
572072400 |
— | ||
|
45
|
45
413706100
Graisse lith. *grease lith.
|
413706100 |
— | ||
|
46
|
46
413707400
Loctite 271 *loctite-271
|
413707400 |
— | ||
| replacement | |||||
|
46
|
46
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
47
|
47
410110000
Element chauff.*heated film
|
410110000 |
— | ||
| replacement | |||||
|
47
|
47
515175573 Element chauff.*heated film |
515175573 |
US $53.01 |
||
|
48
|
48
572081900 Bout de guidon *end-bar handle |
572081900 |
US $35.45 |
||
|
49
|
49
390908000
Rivet-pop 3/16 *rivet-pop 3/16
|
390908000 |
— | ||
| replacement | |||||
|
49
|
49
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
||
|
50
|
50
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
51
|
51
293550014
Graisse *grease
|
293550014 |
— | ||
| replacement | |||||
|
51
|
51
293550030 Graisse *grease |
293550030 |
US $36.06 |
||
