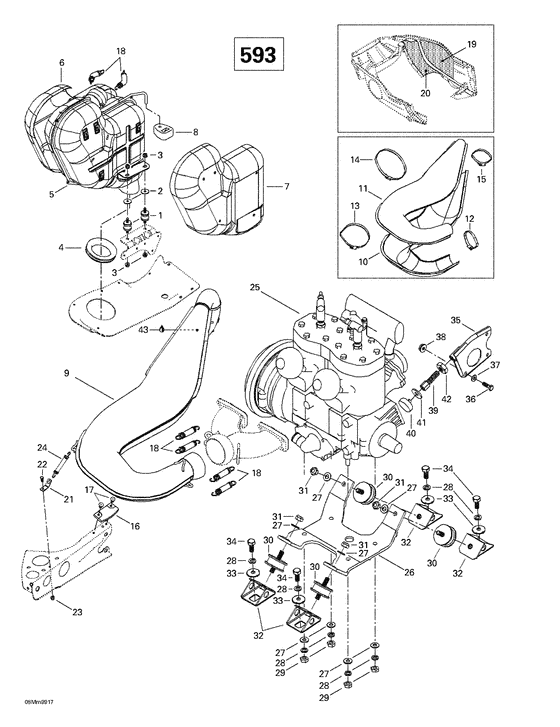

01- engine support and muffler (593) Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
514052889 Tampon ancrage *mount-rubberMXZ 600.; |
514052889 |
US $81.53 |
||
|
2
|
2
514052891
Rondelle isolan*washer-insulated
MXZ 600.; |
514052891 |
— | ||
|
3
|
3
233281414 Nut-flange elastic din.6926MXZ 600.; |
233281414 |
US $18.50 |
||
|
4
|
4
570039000 Grommet-exhaust d70MXZ 600.; |
570039000 |
US $29.29 |
||
|
5
|
5
514052724
Silencieux ass.*muffler-assy
Includes 5 - 7. MXZ 600.; |
514052724 |
— | ||
| replacement | |||||
|
5
|
5
514053212
Silencieux ass.*muffler-assy
Includes 5 - 7. MXZ 600.; |
514053212 |
— | ||
|
6
|
6
514052732
Defl.chaleur dr*shield-heat rh
MXZ 600.; |
514052732 |
— | ||
| replacement | |||||
|
6
|
6
514053160
Defl.chaleur dr*shield-heat rh
MXZ 600.; |
514053160 |
— | ||
|
7
|
7
514052733
Defl.chaleur ga*shield-heat lh
MXZ 600.; |
514052733 |
— | ||
|
8
|
8
514052704 Butoir caout. *bumper-rubberMXZ 600.; |
514052704 |
US $14.25 |
||
|
9
|
9
514052706
Tuyau calib.ass*tube-calib.assy
Includes 9 - 15. MXZ 600.; |
514052706 |
— | ||
| replacement | |||||
|
9
|
9
514053223
Tuyau calib.ass*tube-calib.ass.
Includes 9 - 15. MXZ 600.; |
514053223 |
— | ||
|
10
|
10
514052984
Enveloppe inf.a*enveloppe-low.assy
MXZ 600.; |
514052984 |
— | ||
| replacement | |||||
|
10
|
10
514053360
Enveloppe inf. *enveloppe-lower
MXZ 600.; |
514053360 |
— | ||
|
11
|
11
514052714
Enveloppe sup. *enveloppe-upp.
MXZ 600.; |
514052714 |
— | ||
| replacement | |||||
|
11
|
11
514053167
Enveloppe sup. *enveloppe-upp.
MXZ 600.; |
514053167 |
— | ||
|
12
|
12
514052860
Bride serrage *clamp-gear
MXZ 600.; |
514052860 |
— | ||
|
13
|
13
514052962
Bride serrage *clamp-gear
MXZ 600.; |
514052962 |
— | ||
|
14
|
14
514052735
Bride serrage *clamp-gear
MXZ 600.; |
514052735 |
— | ||
|
15
|
15
514052859
Bride serrage *clamp-gear
MXZ 600.; |
514052859 |
— | ||
|
16
|
16
570044100
Tampon caout. *pad-rubber
MXZ 600.; |
570044100 |
— | ||
|
17
|
17
390406500 Rivet-pop 3/16 *rivet-pop 3/16MXZ 600.; |
390406500 |
US $58.50 |
||
|
18
|
18
415107100 Ressort *springMXZ 600.; |
415107100 |
US $82.10 |
||
|
19
|
19
514052718
Feuille reflect*sheet-reflect
MXZ 600.; |
514052718 |
— | ||
|
20
|
20
514052719
Feuille reflect*sheet-reflect
MXZ 600.; |
514052719 |
— | ||
| replacement | |||||
|
20
|
20
514053390 Feuille reflect*sheet-reflectMXZ 600.; |
514053390 |
US $16.29 |
||
|
21
|
21
514034000
Attache ressort*bracket-spring
MXZ 600.; |
514034000 |
— | ||
|
22
|
22
207151244 Screw-hex.cap din.933MXZ 600.; |
207151244 |
US $11.70 |
||
|
23
|
23
228751045
Nut-flange elastic din.6926
MXZ 600.; |
228751045 |
— | ||
| replacement | |||||
|
23
|
23
233251414 Nut-flange elastic din.6926MXZ 600.; |
233251414 |
US $5.36 |
||
|
24
|
24
517182100 Ressort *springMXZ 600.; |
517182100 |
US $55.85 |
||
|
25
|
25
400509700
<<593>> engine
MXZ 600.; |
400509700 |
— | ||
|
26
|
26
512058000
Socle *support-engine
MXZ 600.; |
512058000 |
— | ||
| replacement | |||||
|
26
|
26
512059488 Socle *support-engineMXZ 600.; |
512059488 |
US $161.13 |
||
|
27
|
27
224001211
Washer-flat din.125a
MXZ 600.; |
224001211 |
— | ||
| replacement | |||||
|
27
|
27
234001410 Washer-flat din.125aMXZ 600.; |
234001410 |
US $16 |
||
|
28
|
28
234100602 Washer-lock spring din.128a-a2MXZ 600.; |
234100602 |
US $19.60 |
||
|
29
|
29
228001045
Nut-hexagonal din.934
MXZ 600.; |
228001045 |
— | ||
| replacement | |||||
|
29
|
29
232006414 Nut-hexagonal din.934MXZ 600.; |
232006414 |
US $17.50 |
||
|
30
|
30
570127700
Tampon ancrage *mount-rubber
MXZ 600.; |
570127700 |
— | ||
| replacement | |||||
|
30
|
30
570128700 Tampon ancrage *mount-rubberMXZ 600.; |
570128700 |
US $52.14 |
||
|
31
|
31
228501045
Nut-locking elastic din.982
MXZ 600.; |
228501045 |
— | ||
| replacement | |||||
|
31
|
31
233601416 Nut-locking elastic din.982MXZ 600.; |
233601416 |
US $21.90 |
||
|
32
|
32
512050900 Supp.moteur sou*supp-engine weldMXZ 600.; |
512050900 |
US $15.54 |
||
|
33
|
33
512056700 Rondelle-frein *washer-lockMXZ 600.; |
512056700 |
US $20.50 |
||
|
34
|
34
222002565
Screw-hex.cap iso.4017
MXZ 600.; |
222002565 |
— | ||
| replacement | |||||
|
34
|
34
207102544 Screw-hex.cap iso.4017MXZ 600.; |
207102544 |
US $17.50 |
||
|
35
|
35
512058500
Plaque app.soud*plate-weld.
MXZ 600.; |
512058500 |
— | ||
|
36
|
36
207182044 Screw-hex.cap din.933MXZ 600.; |
207182044 |
US $9.50 |
||
|
37
|
37
224081171
Washer-flat din.125a
MXZ 600.; |
224081171 |
— | ||
| replacement | |||||
|
37
|
37
234081410 Washer-flat din.125aMXZ 600.; |
234081410 |
US $10.70 |
||
|
38
|
38
232581414 Nut-stop elastic din.985MXZ 600.; |
232581414 |
US $7.30 |
||
|
39
|
39
512058800 Vis d arret *screw-stopperMXZ 600.; |
512058800 |
US $16.07 |
||
|
40
|
40
512059056 Butee *stopperMXZ 600.; |
512059056 |
US $22.39 |
||
|
41
|
41
512059057 Rondelle *washerMXZ 600.; |
512059057 |
US $19.60 |
||
|
42
|
42
732610019 Nut-jam hexagonal rh.MXZ 600.; |
732610019 |
US $9.80 |
||
|
43
|
43
413710300
Enduit etanche *sealant
MXZ 600.; |
413710300 |
— | ||
| replacement | |||||
|
43
|
43
293800090 Enduit etanche *sealantMXZ 600.; |
293800090 |
US $31.18 |
||
