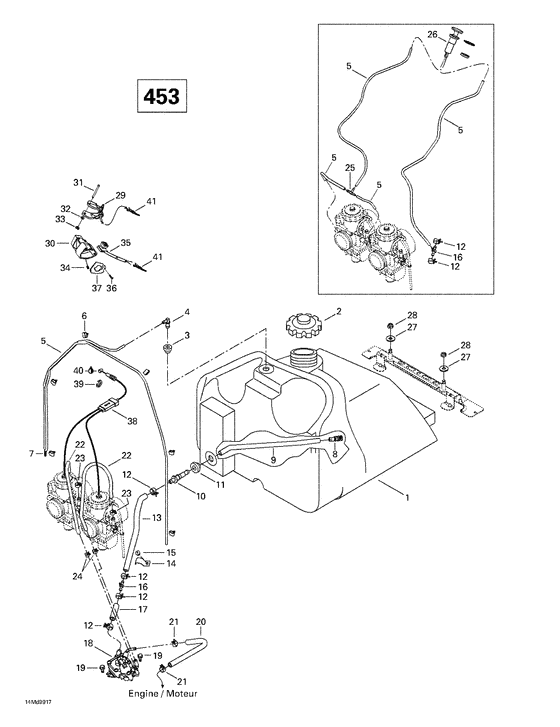

02- fuel system (453) Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
513032958
Reservoir essen*tank-fuel
MXZ X 440 LC.; |
513032958 |
— | ||
| replacement | |||||
|
1
|
1
861301500
Ens.reservoir *kit tank fuel
MXZ X 440 LC.; |
861301500 |
— | ||
|
2
|
2
415065800
Bouchon res.ess*cap-fuel tank
MXZ X 440 LC.; |
415065800 |
— | ||
|
3
|
3
513032908 Passe-fils *grommetMXZ X 440 LC.; |
513032908 |
US $98.80 |
||
|
4
|
4
414814100 Raccord male *connector-maleMXZ X 440 LC.; |
414814100 |
US $14.35 |
||
|
5
|
5
415080100 Boyau amorce *line-primerMXZ X 440 LC.; |
415080100 |
US $75.90 |
||
|
6
|
6
513032923 Bride de tube *clamp-tubeMXZ X 440 LC.; |
513032923 |
US $8.55 |
||
|
7
|
7
414818200 Ressort *springMXZ X 440 LC.; |
414818200 |
US $3.01 |
||
|
8
|
8
414872100 Crepine *filter-fuelMXZ X 440 LC.; |
414872100 |
US $14.03 |
||
|
9
|
9
415005700 Boyau polyure *hose-polyurethaneMXZ X 440 LC.; |
415005700 |
US $9.78 |
||
|
10
|
10
414872700 Raccord male *connector-maleMXZ X 440 LC.; |
414872700 |
US $9.80 |
||
|
11
|
11
570273900 Passe-fils *grommetMXZ X 440 LC.; |
570273900 |
US $11.76 |
||
|
12
|
12
414655700 Bride a ressort*clamp-springMXZ X 440 LC.; |
414655700 |
US $9.50 |
||
|
13
|
13
513032956
Boyau forme *hose-formed
MXZ X 440 LC.; |
513032956 |
— | ||
|
14
|
14
415018200 Pince *clipMXZ X 440 LC.; |
415018200 |
US $3.83 |
||
|
15
|
15
390406500 Rivet-pop 3/16 *rivet-pop 3/16MXZ X 440 LC.; |
390406500 |
US $58.50 |
||
|
16
|
16
415119300 Raccord en t *fitting-tMXZ X 440 LC.; |
415119300 |
US $30.10 |
||
|
17
|
17
513032957
Boyau forme *hose-formed
MXZ X 440 LC.; |
513032957 |
— | ||
|
18
|
18
403901800
Pompe a essence*pump-fuel
MXZ X 440 LC.; |
403901800 |
— | ||
| replacement | |||||
|
18
|
18
403901805
Pompe a essence*pump-fuel
MXZ X 440 LC.; |
403901805 |
— | ||
|
19
|
19
732601120
Screw-forming hex.hd.fl.din.7500
MXZ X 440 LC.; |
732601120 |
— | ||
| replacement | |||||
|
19
|
19
210361280 Screw-forming hex.hd.fl.din.7500MXZ X 440 LC.; |
210361280 |
US $9.70 |
||
|
20
|
20
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
MXZ X 440 LC.; |
415079800 |
— | ||
|
21
|
21
414415200 Bride a ressort*clamp-springMXZ X 440 LC.; |
414415200 |
US $11.70 |
||
|
22
|
22
415080200
Boyau polyure *polyurethane hose
MXZ X 440 LC.; |
415080200 |
— | ||
|
23
|
23
414554800 Bride a ressort*clamp-springMXZ X 440 LC.; |
414554800 |
US $11.70 |
||
|
24
|
24
414420700 Bride a ressort*clamp-springMXZ X 440 LC.; |
414420700 |
US $9.50 |
||
|
25
|
25
414222400 Raccord en t *fitting-tMXZ X 440 LC.; |
414222400 |
US $21.90 |
||
|
26
|
26
415060500 Amorceur *primerMXZ X 440 LC.; |
415060500 |
US $40.04 |
||
|
27
|
27
224080251
Washer-flat din.9021b
MXZ X 440 LC.; |
224080251 |
— | ||
| replacement | |||||
|
27
|
27
234082410 Washer-flat din.9021bMXZ X 440 LC.; |
234082410 |
US $18.40 |
||
|
28
|
28
232581414 Nut-stop elastic din.985MXZ X 440 LC.; |
232581414 |
US $7.30 |
||
|
29
|
29
572085900
Manette ass. *handle-assy
MXZ X 440 LC.; |
572085900 |
— | ||
| replacement | |||||
|
29
|
29
512060214 Manette ass. *handle-assyMXZ X 440 LC.; |
512060214 |
US $55.03 |
||
|
30
|
30
572086700
Logement acc. *housing-throttle
MXZ X 440 LC.; |
572086700 |
— | ||
| replacement | |||||
|
30
|
30
512060193 Logement acc. *housing-throttleMXZ X 440 LC.; |
512060193 |
US $23.41 |
||
|
31
|
31
414438700 Goupille levier*pin-leverMXZ X 440 LC.; |
414438700 |
US $53.65 |
||
|
32
|
32
414438900 Rondelle *washerMXZ X 440 LC.; |
414438900 |
US $1.96 |
||
|
33
|
33
414439000 Circlip *circlipMXZ X 440 LC.; |
414439000 |
US $27.35 |
||
|
34
|
34
414440800 Screw-set din 916-a2MXZ X 440 LC.; |
414440800 |
US $19.45 |
||
|
35
|
35
515175290
Inter.urgence *switch-kill
MXZ X 440 LC.; |
515175290 |
— | ||
| replacement | |||||
|
35
|
35
548872536
Inter.urgence *switch-kill
MXZ X 440 LC.; |
548872536 |
— | ||
|
36
|
36
414473200 Screw-thread cut.ph.pan type25MXZ X 440 LC.; |
414473200 |
US $10.70 |
||
| replacement | |||||
|
36
|
36
211000098 Screw-thread cut.ph.pan type25MXZ X 440 LC.; |
211000098 |
US $49.10 |
||
|
37
|
37
572099400
Plaque *plate
MXZ X 440 LC.; |
572099400 |
— | ||
| replacement | |||||
|
37
|
37
512059507 Plaque *plateMXZ X 440 LC.; |
512059507 |
US $8.13 |
||
|
38
|
38
512058901
Cable accelerat*cable-throttle
MXZ X 440 LC.; |
512058901 |
— | ||
|
39
|
39
414274500 Circlip-black chromateMXZ X 440 LC.; |
414274500 |
US $11.70 |
||
|
40
|
40
293550004 Graisse dielect*grease-dielect dc4MXZ X 440 LC.; |
293550004 |
US $59.94 |
||
|
41
|
41
515175232 Cosse male *terminal-maleMXZ X 440 LC.; |
515175232 |
US $20.10 |
||
