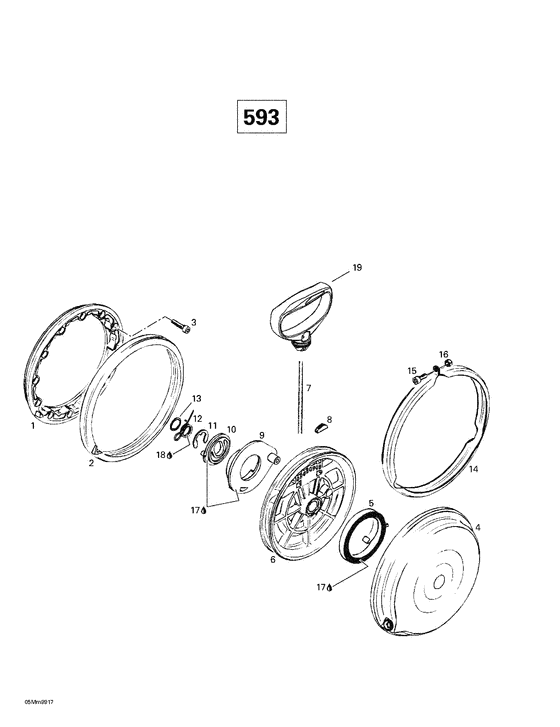

04- rewind starter (593) Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420810860
Flasque con. *flange-con.
MXZ 600.; |
420810860 |
— | ||
|
2
|
2
420860950
Bague batteur *ring-damper
MXZ 600.; |
420860950 |
— | ||
|
3
|
3
205062544 Screw-socket hd.din.912MXZ 600.; |
205062544 |
US $14.60 |
||
|
4
|
4
420887442
Demar.rappel *starter-rewind
Includes 4 - 13. MXZ 600.; |
420887442 |
— | ||
| replacements | |||||
|
4
|
4
420887448 Demarreur *rewind starterIncludes 4 - 13. MXZ 600.; |
420887448 |
US $255.97 |
||
|
4
|
4
205062044 Screw-socket hd.din.912Includes 4 - 13. MXZ 600.; |
205062044 |
US $16.50 |
||
|
4
|
4
420944310 Washer-distance 6.7x14x3Includes 4 - 13. MXZ 600.; |
420944310 |
US $16 |
||
|
4
|
4
420810875
Boitier demar. *housing-starter
MXZ 600.; |
420810875 |
— | ||
| replacement | |||||
|
4
|
4
420810876
Boitier demar. *housing-starter
MXZ 600.; |
420810876 |
— | ||
|
5
|
5
420939115 Ressort rappel *spring-rewindMXZ 600.; |
420939115 |
US $34.10 |
||
|
6
|
6
420852284
Poulie demarrag*sheave-rope
MXZ 600.; |
420852284 |
— | ||
| replacement | |||||
|
6
|
6
420852287
Poulie demarrag*sheave-rope
MXZ 600.; |
420852287 |
— | ||
|
7
|
7
412500100
Corde demarreur*rope-starter
MXZ 600.; |
412500100 |
— | ||
| replacement | |||||
|
7
|
7
412500200 Corde demarreur*rope-starter (25 m))MXZ 600.; |
412500200 |
US $121.50 |
||
|
8
|
8
420852070 Coin *clamp-keyMXZ 600.; |
420852070 |
US $27.35 |
||
|
9
|
9
420852291
Cliquet *pawl
MXZ 600.; |
420852291 |
— | ||
| replacement | |||||
|
9
|
9
420852296 Cliquet *pawlMXZ 600.; |
420852296 |
US $22.03 |
||
|
10
|
10
420852301
Barrure cliquet*lock-pawl
MXZ 600.; |
420852301 |
— | ||
| replacement | |||||
|
10
|
10
420852302 Barrure cliquet*lock-pawlMXZ 600.; |
420852302 |
US $71.25 |
||
|
11
|
11
420845300 Circlip *circlipMXZ 600.; |
420845300 |
US $19.60 |
||
|
12
|
12
420938986 Ressort d arret*spring-pawlMXZ 600.; |
420938986 |
US $10.47 |
||
|
13
|
13
420945770 Bague d arret *ring-lockMXZ 600.; |
420945770 |
US $20.10 |
||
|
14
|
14
420851330
Bride *clamp
MXZ 600.; |
420851330 |
— | ||
|
15
|
15
420241236 Screw-socket m6 x 16MXZ 600.; |
420241236 |
US $10.65 |
||
|
16
|
16
228561045
Nut-stop elastic din.985
MXZ 600.; |
228561045 |
— | ||
| replacement | |||||
|
16
|
16
232561414 Nut-stop elastic din.985MXZ 600.; |
232561414 |
US $7.10 |
||
|
17
|
17
420897061
Graisse silicon*grease-silicon
MXZ 600.; |
420897061 |
— | ||
| replacement | |||||
|
17
|
17
293550004 Graisse dielect*grease-dielect dc4MXZ 600.; |
293550004 |
US $59.94 |
||
|
19
|
19
572084400 Poignee demar. *grip-starterMXZ 600.; |
572084400 |
US $14.25 |
||
