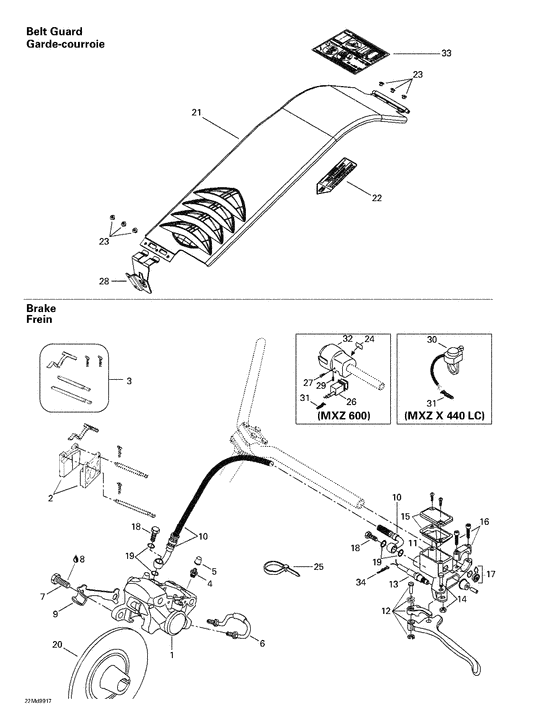

06- hydraulic brake and belt guard Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
414990000
Ens.garnitures *kit-pads brake
MXZ 600.; |
414990000 |
— | ||
| replacement | |||||
|
|
415084600 Ens.garnitures *kit-pads brakeMXZ 600.; |
415084600 |
US $96.73 |
||
|
|
417300002
Garde-courr.ass*guard-belt assy
MXZ 600.; |
417300002 |
— | ||
| replacement | |||||
|
|
417300173
Garde-courr.ass*guard-belt assy
MXZ 600.; |
417300173 |
— | ||
|
|
414920000
Etrier *caliper
MXZ 600.; |
414920000 |
— | ||
| replacement | |||||
|
|
507032409 Etrier *caliperMXZ 600.; |
507032409 |
US $636.46 |
||
|
|
507032237 Boyau *hoseMXZ 600.; |
507032237 |
US $55.03 |
||
|
|
507031300
Disque usine *disk-mach.
MXZ 600.; |
507031300 |
— | ||
| replacement | |||||
|
|
507032456 Disque usine *disk-mach.MXZ 600.; |
507032456 |
US $152.95 |
||
|
1
|
1
507032204
Etrier *caliper
Includes 1 - 6. MXZ X 440 LC.; |
507032204 |
— | ||
| replacement | |||||
|
1
|
1
507032350
Etrier *caliper
Includes 1 - 6. MXZ X 440 LC.; |
507032350 |
— | ||
|
2
|
2
415084600 Ens.garnitures *kit-pads brakeMXZ X 440 LC.; |
415084600 |
US $96.73 |
||
|
3
|
3
414990700 Ens.axe/res./pi*kit-pin/spr/re |
414990700 |
US $36.69 |
||
|
4
|
4
414989800 Vis *screw-bleeder |
414989800 |
US $16.29 |
||
|
5
|
5
414989700
Capuchon qts 20*boot-qts 20
|
414989700 |
— | ||
|
6
|
6
414989900 Tube *tubing-rigid |
414989900 |
US $42.81 |
||
|
7
|
7
207103544 Screw-hex.cap iso.4017 |
207103544 |
US $20.10 |
||
|
8
|
8
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
8
|
8
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
9
|
9
507029900
Frein de vis *lock-tab
|
507029900 |
— | ||
| replacement | |||||
|
9
|
9
507032316 Frein de vis *lock-tab |
507032316 |
US $4.05 |
||
|
10
|
10
415064600
Boyau *hose
MXZ X 440 LC.; |
415064600 |
— | ||
| replacement | |||||
|
10
|
10
507032329
Boyau *hose
MXZ X 440 LC.; |
507032329 |
— | ||
|
11
|
11
507032221
Maitre cylindre*master-cylind.
Includes 11 - 17.; |
507032221 |
— | ||
| replacement | |||||
|
11
|
11
507032294
Maitre cylindre*master-cylind
Includes 11 - 17.; |
507032294 |
— | ||
|
12
|
12
415075300
Levier *lever
|
415075300 |
— | ||
|
13
|
13
415127696
Micro contact *microswitch
|
415127696 |
— | ||
|
14
|
14
415030000 Axe *pin |
415030000 |
US $17.12 |
||
|
15
|
15
415029900 Capuchon *cap |
415029900 |
US $36.69 |
||
|
16
|
16
415029800
Bride *clamp
|
415029800 |
— | ||
| replacement | |||||
|
16
|
16
507032477 Bride *clamp |
507032477 |
US $26.30 |
||
|
17
|
17
414990600
Fenetre *window
|
414990600 |
— | ||
|
18
|
18
414920500 Boulon banjo *bolt-banjo |
414920500 |
US $9.61 |
||
|
19
|
19
414920600 Washer for hose connection |
414920600 |
US $14.70 |
||
|
20
|
20
507030900
Disque usine *disk-mach.(s)
MXZ X 440 LC.; |
507030900 |
— | ||
|
21
|
21
417300072
Garde-courr.ass*guard-belt assy
Includes 21 - 23. MXZ X 440 LC.; |
417300072 |
— | ||
| replacement | |||||
|
21
|
21
417300183
Garde-courr.ass*guard-belt assy
Includes 21 - 23. MXZ X 440 LC.; |
417300183 |
— | ||
|
22
|
22
516000132
Etiquette avert*label-warning
|
516000132 |
— | ||
|
23
|
23
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
24
|
24
415025500
Errupt*decal-switch
MXZ 600.; |
415025500 |
— | ||
|
25
|
25
414115200 Tie-rap 180 mmMXZ X 440 LC.; |
414115200 |
US $7 |
||
|
26
|
26
515175393
Commutateur *switch
MXZ 600.; |
515175393 |
— | ||
|
27
|
27
414473200 Screw-thread cut.ph.pan type25MXZ 600.; |
414473200 |
US $10.70 |
||
| replacement | |||||
|
27
|
27
211000098 Screw-thread cut.ph.pan type25MXZ 600.; |
211000098 |
US $49.10 |
||
|
28
|
28
417300001
Attache *bracket
|
417300001 |
— | ||
|
29
|
29
414440800 Screw-set din 916-a2MXZ 600.; |
414440800 |
US $19.45 |
||
|
30
|
30
410105400
Inverseur *switch-dimmer
MXZ X 440 LC.; |
410105400 |
— | ||
| replacement | |||||
|
30
|
30
515175391
Inverseur *switch-dimmer
MXZ X 440 LC.; |
515175391 |
— | ||
|
31
|
31
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
32
|
32
515175307
Logement frein *housing-brake
MXZ 600.; |
515175307 |
— | ||
| replacement | |||||
|
32
|
32
515175696 Logement frein *housing-brakeMXZ 600.; |
515175696 |
US $32.61 |
||
|
33
|
33
516000252
Decal.ajust. *decal-ajust.
MXZ 600.; |
516000252 |
— | ||
|
34
|
34
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
