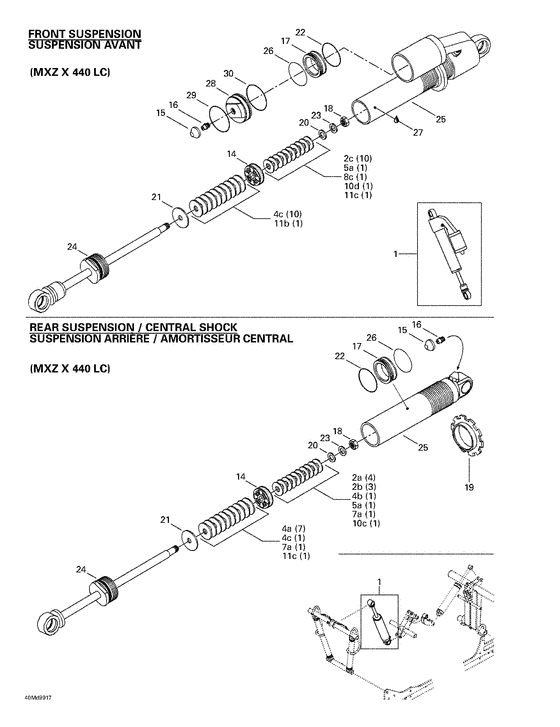

07- front take apart shocks (MX Z X 440 LC) Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
503189309
Piston libre *piston-free
MXZ 600.; |
503189309 |
— | ||
|
|
503189308 Bague *ring-pistonMXZ 600.; |
503189308 |
US $73.41 |
||
|
|
505070128
Amortisseur ga.*shock-lh
MXZ X 440 LC. (Front Suspension); |
505070128 |
— | ||
|
|
503189078
Amort. cent. *shock-center
MXZ 600. (Rear Suspension - Central Shock); |
503189078 |
— | ||
|
|
414888312 Joint torique *o-ringMXZ 600.; |
414888312 |
US $79.50 |
||
|
1
|
1
505070127
Amortisseur dr.*shock-rh
MXZ X 440 LC. (Front Suspension); |
505070127 |
— | ||
|
2A
|
2A
415039100
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
415039100 |
— | ||
|
2B
|
2B
414888318
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
414888318 |
— | ||
|
2C
|
2C
414888319
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
414888319 |
— | ||
|
3A
|
3A
414888320
New Genuine Part
MXZ X 440 LC. MXZ 600.; |
414888320 |
— | ||
|
3B
|
3B
414888321 New Genuine PartMXZ X 440 LC. MXZ 600.; |
414888321 |
US $1.96 |
||
|
4A
|
4A
415039000
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
415039000 |
— | ||
|
4B
|
4B
414888322
New Genuine Part
MXZ X 440 LC. MXZ 600.; |
414888322 |
— | ||
|
4C
|
4C
414888323
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
414888323 |
— | ||
|
5A
|
5A
414888341
New Genuine Part
MXZ X 440 LC. MXZ 600.; |
414888341 |
— | ||
|
6A
|
6A
414888324 Lame soupape *leaf-valveMXZ X 440 LC. MXZ 600.; |
414888324 |
US $1.96 |
||
|
6B
|
6B
414888325
New Genuine Part
MXZ X 440 LC. MXZ 600.; |
414888325 |
— | ||
|
7A
|
7A
414888340
New Genuine Part
MXZ X 440 LC. MXZ 600.; |
414888340 |
— | ||
|
8C
|
8C
414888328
New Genuine Part
|
414888328 |
— | ||
|
8A
|
8A
414888326
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
414888326 |
— | ||
|
8B
|
8B
414888327
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
414888327 |
— | ||
|
9A
|
9A
414888329 Lame soupape *leaf-valve |
414888329 |
US $5.83 |
||
|
9B
|
9B
414888330
Lame soupape *leaf-valve
|
414888330 |
— | ||
|
10A
|
10A
414888331
Lame soupape *leaf-valve
|
414888331 |
— | ||
|
10B
|
10B
414888332
New Genuine Part
|
414888332 |
— | ||
|
10C
|
10C
414888333 New Genuine Part |
414888333 |
US $1.96 |
||
|
10D
|
10D
415093823
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
415093823 |
— | ||
| replacement | |||||
|
10D
|
10D
415038900
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
415038900 |
— | ||
|
11D
|
11D
414888337
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
414888337 |
— | ||
|
11A
|
11A
414888334
New Genuine Part
MXZ X 440 LC. MXZ 600.; |
414888334 |
— | ||
|
11B
|
11B
414888335
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
414888335 |
— | ||
|
11C
|
11C
414888336
New Genuine Part
MXZ X 440 LC. MXZ 600.; |
414888336 |
— | ||
|
12A
|
12A
415038900
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
415038900 |
— | ||
|
13A
|
13A
414888338
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
414888338 |
— | ||
|
13B
|
13B
414888339
New Genuine Part
MXZ X 440 LC. MXZ 600.; |
414888339 |
— | ||
|
13C
|
13C
415038800
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
415038800 |
— | ||
|
13D
|
13D
415093824
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
415093824 |
— | ||
| replacement | |||||
|
13D
|
13D
415038800
Lame soupape *leaf-valve
MXZ X 440 LC. MXZ 600.; |
415038800 |
— | ||
|
15
|
15
503189307
Soupape air *valve-air
MXZ X 440 LC. MXZ 600.; |
503189307 |
— | ||
|
16
|
16
414888314 Soupape air *valve-air+ringMXZ X 440 LC. MXZ 600.; |
414888314 |
US $77.42 |
||
|
17
|
17
415093812
Piston libre *piston-free
MXZ X 440 LC.; |
415093812 |
— | ||
|
19
|
19
414888316 Collet ressort *collar-springMXZ 600.; |
414888316 |
US $55.03 |
||
|
22
|
22
415093807 Joint torique *o-ringMXZ X 440 LC.; |
415093807 |
US $30.57 |
||
|
26
|
26
415093806 Bague *ring-stopMXZ X 440 LC.; |
415093806 |
US $14.67 |
||
|
27
|
27
413711806
Huile amortis. *oil-shock
MXZ X 440 LC.; |
413711806 |
— | ||
| replacement | |||||
|
27
|
27
293600035 Huile amortis. *oil-shockMXZ X 440 LC.; |
293600035 |
US $89.73 |
||
|
28
|
28
415093808
Guide *guide
MXZ X 440 LC.; |
415093808 |
— | ||
|
29
|
29
415093805 Bague *ring-stopMXZ X 440 LC.; |
415093805 |
US $17.12 |
||
|
30
|
30
415093804 Joint torique *o-ringMXZ X 440 LC.; |
415093804 |
US $4.17 |
||
