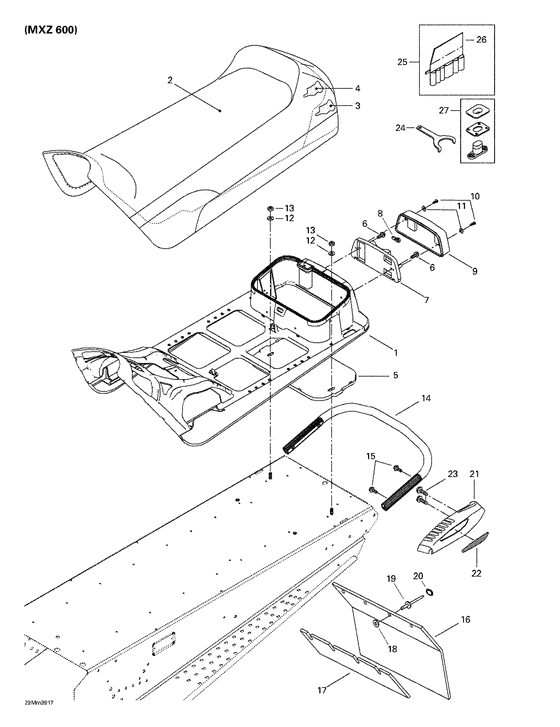

09- seat and accessories (MX Z 600) Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
516000238
Reflecteur ga. *reflector-lh
MXZ 600.; |
516000238 |
— | ||
|
|
516000242
Reflect.arr. ga*reflect.-rear lh
MXZ 600.; |
516000242 |
— | ||
|
|
572092300
Enjoliveur ga. *lh.moulding
MXZ 600.; |
572092300 |
— | ||
| replacement | |||||
|
|
861777800
Enjoliveur ga. *mould.-lh black
MXZ 600.; |
861777800 |
— | ||
|
|
516000241
Reflect.arr.dr.*reflect.-rear rh
MXZ 600.; |
516000241 |
— | ||
|
1
|
1
572107600
Base siege *base-seat
MXZ 600.; |
572107600 |
— | ||
| replacement | |||||
|
1
|
1
510003983
Base siege *base-seat
MXZ 600.; |
510003983 |
— | ||
|
2
|
2
415107703
Housse de siege*cover-seat
MXZ 600.; |
415107703 |
— | ||
|
3
|
3
510003608
Mousse de siege*foam-seat
MXZ 600.; |
510003608 |
— | ||
| replacement | |||||
|
3
|
3
510003840
Mousse de siege*foam-seat
MXZ 600.; |
510003840 |
— | ||
|
4
|
4
510003500
Mousse de siege*foam-seat
MXZ 600.; |
510003500 |
— | ||
| replacements | |||||
|
4
|
4
510004255
Mousse de siege*foam-seat
MXZ 600.; |
510004255 |
— | ||
|
4
|
4
510003840
Mousse de siege*foam-seat
MXZ 600.; |
510003840 |
— | ||
|
5
|
5
572107601 Sous-coffre *chest-underMXZ 600.; |
572107601 |
US $19.92 |
||
|
6
|
6
732603006 Screw-plastite hex.wr.hd.MXZ 600.; |
732603006 |
US $19.60 |
||
|
7
|
7
414513600
Boitier lumiere*housing-20/18
MXZ 600.; |
414513600 |
— | ||
| replacement | |||||
|
7
|
7
510004061 Boitier lumiere*housing-20/18MXZ 600.; |
510004061 |
US $45.85 |
||
|
8
|
8
410504000
Bulb -tail lamp 12v/21/5w
MXZ 600.; |
410504000 |
— | ||
| replacement | |||||
|
8
|
8
520000758 Ampoule *bulbMXZ 600.; |
520000758 |
US $160.50 |
||
|
9
|
9
414513700 Lens 21/68MXZ 600.; |
414513700 |
US $31.06 |
||
|
10
|
10
209632540 Screw-tapp.pan.hd.ph.din.7981cMXZ 600.; |
209632540 |
US $1.31 |
||
|
11
|
11
414516400 WasherMXZ 600.; |
414516400 |
US $0.82 |
||
|
12
|
12
224080251
Washer-flat din.9021b
MXZ 600.; |
224080251 |
— | ||
| replacement | |||||
|
12
|
12
234082410 Washer-flat din.9021bMXZ 600.; |
234082410 |
US $18.40 |
||
|
13
|
13
232581414 Nut-stop elastic din.985MXZ 600.; |
232581414 |
US $7.30 |
||
|
14
|
14
518318200
Pare-chocs arr.*bumper-rear
MXZ 600.; |
518318200 |
— | ||
| replacement | |||||
|
14
|
14
518322708 Pare-chocs arr.*bumper-rearMXZ 600.; |
518322708 |
US $97.89 |
||
|
15
|
15
207682044 Screw-hex.flange din.6921MXZ 600.; |
207682044 |
US $14.80 |
||
|
16
|
16
572092100 Garde-neige *guard-snowMXZ 600.; |
572092100 |
US $96.87 |
||
|
17
|
17
572108200 Renfort *reinforcementMXZ 600.; |
572108200 |
US $14.67 |
||
|
18
|
18
517225900 Washer - flatMXZ 600.; |
517225900 |
US $2.40 |
||
|
19
|
19
390908000
Rivet-pop 3/16 *rivet-pop 3/16
MXZ 600.; |
390908000 |
— | ||
| replacement | |||||
|
19
|
19
293150100 Rivet-pop 3/16 *pop rivet 3/16MXZ 600.; |
293150100 |
US $74 |
||
|
20
|
20
415073300 Capuchon *capMXZ 600.; |
415073300 |
US $29.15 |
||
|
21
|
21
572092200
Enjoliveur dr. *rh.moulding
MXZ 600.; |
572092200 |
— | ||
| replacement | |||||
|
21
|
21
861777700 Enjoliveur dr. *mould.-rear rh blackMXZ 600.; |
861777700 |
US $36.69 |
||
|
22
|
22
516000237
Reflecteur dr. *reflector-rh
MXZ 600.; |
516000237 |
— | ||
|
23
|
23
365901100 Screw-hex.taping 12MXZ 600.; |
365901100 |
US $15.60 |
||
|
24
|
24
529035582 Cle de reglage *wrench-adjust.MXZ 600.; |
529035582 |
US $17.29 |
||
|
25
|
25
529035546
Trousse outils *tool kit
Includes 25 - 26. MXZ 600.; |
529035546 |
— | ||
| replacement | |||||
|
25
|
25
529035596 Trousse outils *tool kitIncludes 25 - 26. MXZ 600.; |
529035596 |
US $50.97 |
||
|
26
|
26
520000047
Sac a outils *bag-tool
MXZ 600.; |
520000047 |
— | ||
| replacement | |||||
|
26
|
26
520000552
Sac a outils *bag-tool
MXZ 600.; |
520000552 |
— | ||
|
27
|
27
414728000 Boucle de siege*buckle-seatMXZ 600.; |
414728000 |
US $14.25 |
||
