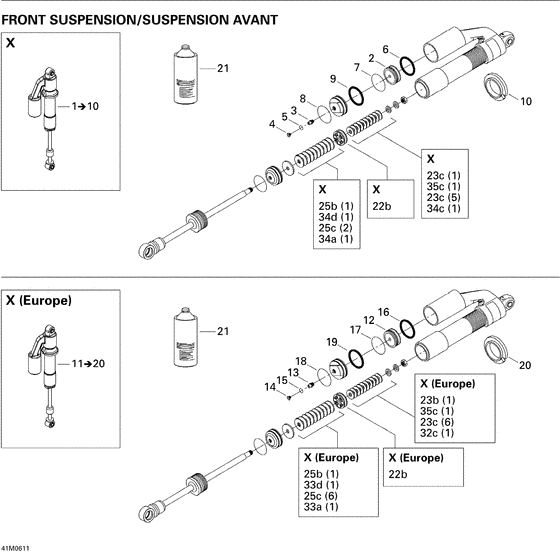

07- take apart shock, front Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
505071204 Amortisseur av.*front shockIncludes 1 to 10 / X; |
505071204 |
US $733.35 |
||
|
1
|
1
505071205
Amprtisseur av.*front shock
Includes 1 to 10 / X; |
505071205 |
— | ||
|
2
|
2
415093812
Piston libre *piston-free
X; |
415093812 |
— | ||
|
3
|
3
505070398 Soupape air *valve-air+ringX; |
505070398 |
US $17.12 |
||
|
4
|
4
505070399 Screw *visX; |
505070399 |
US $3.83 |
||
|
5
|
5
505070400 Joint torique *o ringX; |
505070400 |
US $4.17 |
||
|
6
|
6
415093807 Joint torique *o-ringX; |
415093807 |
US $30.57 |
||
|
7
|
7
415093806 Bague *ring-stopX; |
415093806 |
US $14.67 |
||
|
8
|
8
415093805 Bague *ring-stopX; |
415093805 |
US $17.12 |
||
|
9
|
9
415093804 Joint torique *o-ringX; |
415093804 |
US $4.17 |
||
|
10
|
10
505071167 Bague reglage *seat-spring plasticX; |
505071167 |
US $49.93 |
||
|
11
|
11
505071949
Amortisseur av.*front shock
Includes 11 to 20 / X (Europe); |
505071949 |
— | ||
|
11
|
11
505071950
Amortisseur av.*front shock
Includes 11 to 20 / X (Europe); |
505071950 |
— | ||
|
12
|
12
415093812
Piston libre *piston-free
X (Europe); |
415093812 |
— | ||
|
13
|
13
505070398 Soupape air *valve-air+ringX (Europe); |
505070398 |
US $17.12 |
||
|
14
|
14
505070399 Screw *visX (Europe); |
505070399 |
US $3.83 |
||
|
15
|
15
505070400 Joint torique *o ringX (Europe); |
505070400 |
US $4.17 |
||
|
16
|
16
415093807 Joint torique *o-ringX (Europe); |
415093807 |
US $30.57 |
||
|
17
|
17
415093806 Bague *ring-stopX (Europe); |
415093806 |
US $14.67 |
||
|
18
|
18
415093805 Bague *ring-stopX (Europe); |
415093805 |
US $17.12 |
||
|
19
|
19
415093804 Joint torique *o-ringX (Europe); |
415093804 |
US $4.17 |
||
|
20
|
20
505071167 Bague reglage *seat-spring plasticX (Europe); |
505071167 |
US $49.93 |
||
|
21
|
21
293600035 Huile amortis. *oil-shock |
293600035 |
US $89.73 |
||
|
22a
|
22a
414888304
Piston (c36)
|
414888304 |
— | ||
|
22c
|
22c
414888305
Piston comp. *piston-comp.
|
414888305 |
— | ||
|
22e
|
22e
414888306
Piston (2 x 0.3-4) (c36)
|
414888306 |
— | ||
|
22g
|
22g
414888307
Piston (2 x 0.3-6) (c36)
|
414888307 |
— | ||
|
23a
|
23a
415039100
Lame soupape *leaf-valve
|
415039100 |
— | ||
|
23b
|
23b
414888318
Lame soupape *leaf-valve
|
414888318 |
— | ||
|
23c
|
23c
414888319
Lame soupape *leaf-valve
|
414888319 |
— | ||
|
24b
|
24b
414888320
New Genuine Part
|
414888320 |
— | ||
|
24c
|
24c
414888321 New Genuine Part |
414888321 |
US $1.96 |
||
|
25a
|
25a
415039000
Lame soupape *leaf-valve
|
415039000 |
— | ||
|
25b
|
25b
414888322
New Genuine Part
|
414888322 |
— | ||
|
25c
|
25c
414888323
Lame soupape *leaf-valve
|
414888323 |
— | ||
|
27b
|
27b
414888324 Lame soupape *leaf-valve |
414888324 |
US $1.96 |
||
|
27c
|
27c
414888325
New Genuine Part
|
414888325 |
— | ||
|
28d
|
28d
414888340
New Genuine Part
|
414888340 |
— | ||
|
29b
|
29b
414888326
Lame soupape *leaf-valve
|
414888326 |
— | ||
|
29c
|
29c
414888327
Lame soupape *leaf-valve
|
414888327 |
— | ||
|
29d
|
29d
414888328
New Genuine Part
|
414888328 |
— | ||
|
31b
|
31b
414888329 Lame soupape *leaf-valve |
414888329 |
US $5.83 |
||
|
31c
|
31c
414888330
Lame soupape *leaf-valve
|
414888330 |
— | ||
|
33a
|
33a
414888331
Lame soupape *leaf-valve
|
414888331 |
— | ||
|
33b
|
33b
414888332
New Genuine Part
|
414888332 |
— | ||
|
33c
|
33c
414888333 New Genuine Part |
414888333 |
US $1.96 |
||
|
33d
|
33d
415038900
Lame soupape *leaf-valve
|
415038900 |
— | ||
|
34b
|
34b
414888335
Lame soupape *leaf-valve
|
414888335 |
— | ||
|
34c
|
34c
414888336
New Genuine Part
|
414888336 |
— | ||
|
34d
|
34d
414888337
Lame soupape *leaf-valve
|
414888337 |
— | ||
|
34a
|
34a
414888334
New Genuine Part
|
414888334 |
— | ||
|
37a
|
37a
503189538
Lame soupape *leaf-valve 12xt0.254
|
503189538 |
— | ||
|
37b
|
37b
414888338
Lame soupape *leaf-valve
|
414888338 |
— | ||
|
37c
|
37c
414888339
New Genuine Part
|
414888339 |
— | ||
|
37d
|
37d
415038800
Lame soupape *leaf-valve
|
415038800 |
— |
