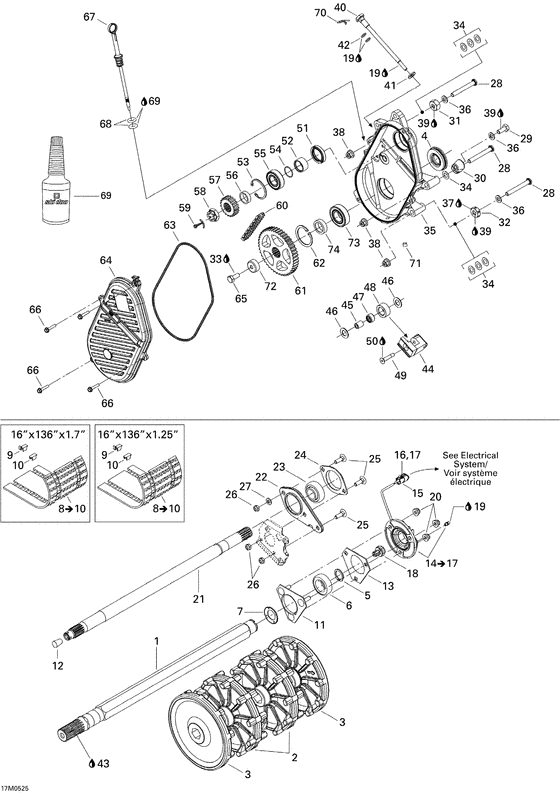

05- drive system Diagram Bombardier MX Z
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
501027400 Arbre entr.pein*axle-drive paint |
501027400 |
US $308.01 |
||
|
2
|
2
504152198 Barbotin 10d *sprocket 10th |
504152198 |
US $67.29 |
||
|
3
|
3
504152199 Demi-barbot.10 *half sproc.10 |
504152199 |
US $48.93 |
||
|
4
|
4
504151918 Anneau etanche *oil seal ass y |
504151918 |
US $24.45 |
||
|
5
|
5
371910200 Circlip *circlip |
371910200 |
US $10.65 |
||
|
6
|
6
504152009
Roulement bille*ball bearing
|
504152009 |
— | ||
| replacement | |||||
|
6
|
6
293350060 Roulement bille*ball bearing |
293350060 |
US $50.80 |
||
|
7
|
7
501017400 Prot.roulement *bearing protector |
501017400 |
US $9.13 |
||
|
8
|
8
504152406
Chenille 16"x136"x1.750" *track-assy
X / Includes 8 to 10; |
504152406 |
— | ||
|
8
|
8
504152486
Chenille 16"x136"x125" *track-assy
Includes 8 to 10; |
504152486 |
— | ||
|
9
|
9
500003300
Agrafe *cleat
|
500003300 |
— | ||
|
10
|
10
500003400
Agrafe de guide*cleat-guide
|
500003400 |
— | ||
| replacement | |||||
|
10
|
10
504152410
Guide *clip
|
504152410 |
— | ||
| replacement | |||||
|
10
|
10
415129528 GUIDE *CLIP |
415129528 |
US $3.54 |
||
|
10
|
10
504152410
Guide *clip
|
504152410 |
— | ||
| replacement | |||||
|
10
|
10
415129528 GUIDE *CLIP |
415129528 |
US $3.54 |
||
|
11
|
11
504151860 Logement roul. *housing-bear.weld. |
504151860 |
US $12.19 |
||
|
12
|
12
414784800 Bouchon liege *cork |
414784800 |
US $3.01 |
||
|
13
|
13
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
14
|
14
504152345 Capteur *sensorIncludes 14 to 17; |
504152345 |
US $68.29 |
||
|
18
|
18
504152040
Adaptateur magn*adaptor-magnetic
|
504152040 |
— | ||
|
19
|
19
413711500
Graise syntheti*grease-synthe.
|
413711500 |
— | ||
|
20
|
20
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
21
|
21
504152018 Arbre renvoi *shaft-counter |
504152018 |
US $533.41 |
||
|
22
|
22
504151968 Entretoise *spacer |
504151968 |
US $15.27 |
||
|
23
|
23
504152026
Roulement bille*ball bearing
|
504152026 |
— | ||
| replacement | |||||
|
23
|
23
504152535
Roulement bille*ball bearing
|
504152535 |
— | ||
|
24
|
24
501026900
Flasque *flange
|
501026900 |
— | ||
|
25
|
25
207782544 Bolt-carriage din.603 |
207782544 |
US $10.20 |
||
|
26
|
26
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
27
|
27
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
28
|
28
250000151 Screw-hex.cap iso.4017 |
250000151 |
US $21.30 |
||
|
29
|
29
207102544 Screw-hex.cap iso.4017 |
207102544 |
US $17.50 |
||
|
30
|
30
504152252
Entretoise *spacer
|
504152252 |
— | ||
|
31
|
31
504083800 Entretoise *spacer |
504083800 |
US $9.13 |
||
|
32
|
32
504152237 Entretoise *spacer |
504152237 |
US $9.13 |
||
|
33
|
33
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
34
|
34
504073700 Rondelle *washer |
504073700 |
US $20.25 |
||
|
35
|
35
504152312
Carter chaine u*case-chain mach
|
504152312 |
— | ||
|
36
|
36
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
37
|
37
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
38
|
38
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
39
|
39
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
40
|
40
732601314 Vis de reglage *screw adjusting |
732601314 |
US $21.51 |
||
|
41
|
41
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
42
|
42
414484400 Joint torique *o-ring |
414484400 |
US $70.90 |
||
|
43
|
43
413711500
Graise syntheti*grease-synthe.
|
413711500 |
— | ||
|
44
|
44
504151951 Tendeur chaine *tensioner-chain mach. |
504151951 |
US $96.87 |
||
|
45
|
45
504080200 Entretoise *spacer |
504080200 |
US $11.17 |
||
|
46
|
46
504080300 Rondelle *washer |
504080300 |
US $60.70 |
||
|
47
|
47
405403000 Roul.aiguille *needle bearing |
405403000 |
US $25.45 |
||
|
48
|
48
414531300 Rouleau *roller |
414531300 |
US $54.03 |
||
|
49
|
49
732601144 Screw |
732601144 |
US $1.79 |
||
|
50
|
50
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
51
|
51
415049300 Joint etanche *oil seal |
415049300 |
US $14.25 |
||
|
52
|
52
507031500 Entretoise *spacer |
507031500 |
US $13.21 |
||
|
53
|
53
371901700 Circlip int. *circlip-int. |
371901700 |
US $58.30 |
||
|
54
|
54
414876700 Joint torique *o-ring |
414876700 |
US $11.06 |
||
|
55
|
55
504152006
Roulement bille*ball bearing
|
504152006 |
— | ||
| replacement | |||||
|
55
|
55
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
US $12.85 |
||
|
56
|
56
504147200 Cale epaisseur *shim |
504147200 |
US $30.57 |
||
|
57
|
57
504096200 Roue dentee 21d*sprocket 21th |
504096200 |
US $91.77 |
||
|
57
|
57
504152030 Roue dentee 19d*sprocket 19thX; |
504152030 |
US $103.99 |
||
|
58
|
58
250000012 Nut-hex.castle m20 x 1.5 |
250000012 |
US $7 |
||
|
59
|
59
371006300 Goupille fendue*pin-cotter |
371006300 |
US $7.10 |
||
|
60
|
60
504151830
Chaine large *chain-driv.l.
|
504151830 |
— | ||
|
60
|
60
504151857 Chaine large *chain-driv.l. |
504151857 |
US $127.45 |
||
|
61
|
61
504148500 Roue dentee 43d*sprocket 43th |
504148500 |
US $146.85 |
||
|
62
|
62
415064300 Circlip int. *circlip-int. |
415064300 |
US $4.98 |
||
|
63
|
63
415046400 Joint torique *o-ring |
415046400 |
US $8.13 |
||
|
64
|
64
504152471 Couvercle moule*cover-casting |
504152471 |
US $183.57 |
||
|
65
|
65
207102544 Screw-hex.cap iso.4017 |
207102544 |
US $17.50 |
||
|
66
|
66
210263080 Screw-forming hex.hd.fl.gm6174m |
210263080 |
US $19.60 |
||
|
67
|
67
504151703 Bouchon remp.as*cap-filler assy. |
504151703 |
US $14.25 |
||
|
68
|
68
414969400 Joint torique *o-ring |
414969400 |
US $81.30 |
||
|
69
|
69
413803300
Huile chaine *oil-chain
|
413803300 |
— | ||
|
70
|
70
414575600 Goup.surete *pin-hair |
414575600 |
US $12.85 |
||
|
71
|
71
504151921 Plug 1/8-27 n.p.t. 3/4 taper |
504151921 |
US $5.61 |
||
|
72
|
72
504152460 Capuchon *cap |
504152460 |
US $11.17 |
||
|
73
|
73
504152005 Roulement bille*ball bearing |
504152005 |
US $41.77 |
||
|
74
|
74
504152058
Cale epaisseur *shim
|
504152058 |
— | ||
| replacement | |||||
|
74
|
74
504152649 Cale epaisseur *shim |
504152649 |
US $21.39 |
||
