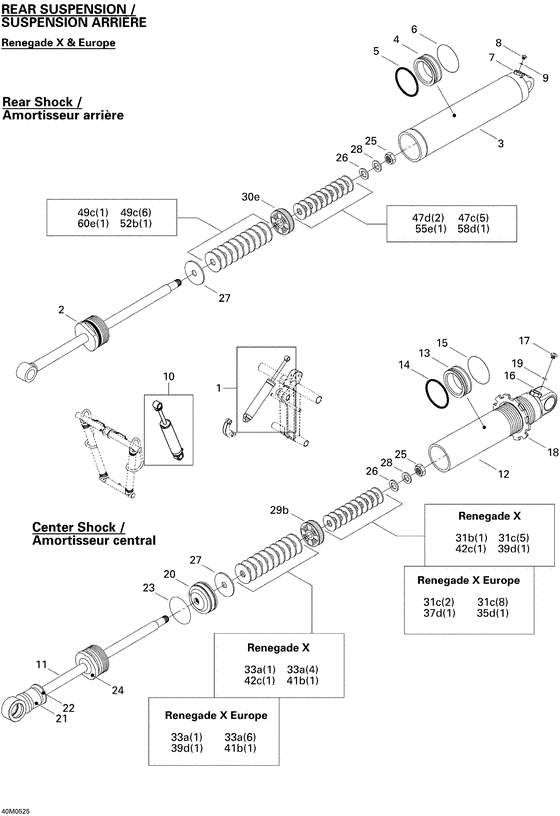

08- take apart shock, rear renegade x, europe Diagram Bombardier MX Z
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503190382
Amort. arr. *shock-rear
Renegade X; |
503190382 |
— | ||
|
1
|
1
503190382
Amort. arr. *shock-rear
Europe; |
503190382 |
— | ||
|
4
|
4
503189008 Piston flott. *piston-flotting |
503189008 |
US $65.25 |
||
|
5
|
5
503189007 Joint torique *o ring |
503189007 |
US $7 |
||
|
6
|
6
503189006 Ring piston *ring-piston |
503189006 |
US $9.78 |
||
|
7
|
7
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
8
|
8
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
9
|
9
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
10
|
10
503190445
Amort.central *shock-center
Renegade X; |
503190445 |
— | ||
| replacement | |||||
|
10
|
10
503191203 Amort.central *shock-centerRenegade X; |
503191203 |
US $440.62 |
||
|
10
|
10
503190973
Amort.central *shock-center
Europe; |
503190973 |
— | ||
|
13
|
13
503189309
Piston libre *piston-free
|
503189309 |
— | ||
|
14
|
14
414888312 Joint torique *o-ring |
414888312 |
US $79.50 |
||
|
15
|
15
503189308 Bague *ring-piston |
503189308 |
US $73.41 |
||
|
16
|
16
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
17
|
17
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
18
|
18
414888316 Collet ressort *collar-spring |
414888316 |
US $55.03 |
||
|
19
|
19
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
29e
|
29e
414888306
Piston (2 x 0.3-4) (c36)
|
414888306 |
— | ||
|
29g
|
29g
414888307
Piston (2 x 0.3-6) (c36)
|
414888307 |
— | ||
|
29a
|
29a
414888304
Piston (c36)
|
414888304 |
— | ||
|
29c
|
29c
414888305
Piston comp. *piston-comp.
|
414888305 |
— | ||
|
30a
|
30a
503189004
Tige de piston *piston-rod
|
503189004 |
— | ||
|
30b
|
30b
503189003
Tige de piston *piston-rod
|
503189003 |
— | ||
|
30d
|
30d
503189002
Tige de piston *piston-rod
|
503189002 |
— | ||
|
31a
|
31a
415039100
Lame soupape *leaf-valve
|
415039100 |
— | ||
|
31b
|
31b
414888318
Lame soupape *leaf-valve
|
414888318 |
— | ||
|
31c
|
31c
414888319
Lame soupape *leaf-valve
|
414888319 |
— | ||
|
32b
|
32b
414888320
New Genuine Part
|
414888320 |
— | ||
|
32c
|
32c
414888321 New Genuine Part |
414888321 |
US $1.96 |
||
|
33a
|
33a
415039000
Lame soupape *leaf-valve
|
415039000 |
— | ||
|
33b
|
33b
414888322
New Genuine Part
|
414888322 |
— | ||
|
33c
|
33c
414888323
Lame soupape *leaf-valve
|
414888323 |
— | ||
|
35b
|
35b
414888324 Lame soupape *leaf-valve |
414888324 |
US $1.96 |
||
|
35c
|
35c
414888325
New Genuine Part
|
414888325 |
— | ||
|
36d
|
36d
414888340
New Genuine Part
|
414888340 |
— | ||
|
37b
|
37b
414888326
Lame soupape *leaf-valve
|
414888326 |
— | ||
|
37c
|
37c
414888327
Lame soupape *leaf-valve
|
414888327 |
— | ||
|
37d
|
37d
414888328
New Genuine Part
|
414888328 |
— | ||
|
39b
|
39b
414888329 Lame soupape *leaf-valve |
414888329 |
US $5.83 |
||
|
39c
|
39c
414888330
Lame soupape *leaf-valve
|
414888330 |
— | ||
|
41a
|
41a
414888331
Lame soupape *leaf-valve
|
414888331 |
— | ||
|
41b
|
41b
414888332
New Genuine Part
|
414888332 |
— | ||
|
41c
|
41c
414888333 New Genuine Part |
414888333 |
US $1.96 |
||
|
41d
|
41d
415038900
Lame soupape *leaf-valve
|
415038900 |
— | ||
|
42a
|
42a
414888334
New Genuine Part
|
414888334 |
— | ||
|
42b
|
42b
414888335
Lame soupape *leaf-valve
|
414888335 |
— | ||
|
42c
|
42c
414888336
New Genuine Part
|
414888336 |
— | ||
|
42d
|
42d
414888337
Lame soupape *leaf-valve
|
414888337 |
— | ||
|
45a
|
45a
503189538
Lame soupape *leaf-valve 12xt0.254
|
503189538 |
— | ||
|
45b
|
45b
414888338
Lame soupape *leaf-valve
|
414888338 |
— | ||
|
45c
|
45c
414888339
New Genuine Part
|
414888339 |
— | ||
|
45d
|
45d
415038800
Lame soupape *leaf-valve
|
415038800 |
— | ||
|
46
|
46
293600035 Huile amortis. *oil-shockNot shown; |
293600035 |
US $89.73 |
||
|
47b
|
47b
503189041
Rondelle piston*washer-piston
|
503189041 |
— | ||
|
47c
|
47c
503189040
Rondelle piston*washer-piston
|
503189040 |
— | ||
|
47d
|
47d
503189039
Rondelle piston*washer-piston
|
503189039 |
— | ||
|
49b
|
49b
503189038
Rondelle piston*washer-piston
|
503189038 |
— | ||
|
49c
|
49c
503189037
Rondelle piston*washer-piston
|
503189037 |
— | ||
|
49d
|
49d
503189036
Rondelle piston*washer-piston
|
503189036 |
— | ||
|
51a
|
51a
503189035
Rondelle piston*washer-piston
|
503189035 |
— | ||
|
51b
|
51b
503189034
Rondelle piston*washer-piston
|
503189034 |
— | ||
|
51c
|
51c
503189033
Rondelle piston*washer-piston
|
503189033 |
— | ||
|
51d
|
51d
503189032
Rondelle piston*washer-piston
|
503189032 |
— | ||
|
51e
|
51e
503189031
Rondelle piston*washer-piston
|
503189031 |
— | ||
|
52a
|
52a
503189030
Rondelle piston*washer-piston
|
503189030 |
— | ||
|
52b
|
52b
503189029
Rondelle piston*washer-piston
|
503189029 |
— | ||
|
52c
|
52c
503189028
Rondelle piston*washer-piston
|
503189028 |
— | ||
|
52d
|
52d
503189027
Rondelle piston*washer-piston
|
503189027 |
— | ||
|
52e
|
52e
503189026
Rondelle piston*washer-piston
|
503189026 |
— | ||
|
53a
|
53a
503189025
Rondelle piston*washer-piston
|
503189025 |
— | ||
|
53b
|
53b
503189024
Rondelle piston*washer-piston
|
503189024 |
— | ||
|
53c
|
53c
503189023
Rondelle piston*washer-piston
|
503189023 |
— | ||
|
53d
|
53d
503189022
Rondelle piston*washer-piston
|
503189022 |
— | ||
|
53e
|
53e
503189021
Rondelle piston*washer-piston
|
503189021 |
— | ||
|
54a
|
54a
503189020
Rondelle piston*washer-piston
|
503189020 |
— | ||
|
54b
|
54b
503189019
Rondelle piston*washer-piston
|
503189019 |
— | ||
|
54c
|
54c
503189018
Rondelle piston*washer-piston
|
503189018 |
— | ||
|
54d
|
54d
503189017
Rondelle piston*washer-piston
|
503189017 |
— | ||
|
54e
|
54e
503189016
Rondelle piston*washer-piston
|
503189016 |
— | ||
|
55a
|
55a
503189015
Rondelle piston*washer-piston
|
503189015 |
— | ||
|
55b
|
55b
503189014
Rondelle piston*washer-piston
|
503189014 |
— | ||
|
55c
|
55c
503189013
Rondelle piston*washer-piston
|
503189013 |
— | ||
|
55d
|
55d
503189012
Rondelle piston*washer-piston
|
503189012 |
— | ||
|
55e
|
55e
503189011
Rondelle piston*washer-piston
|
503189011 |
— | ||
