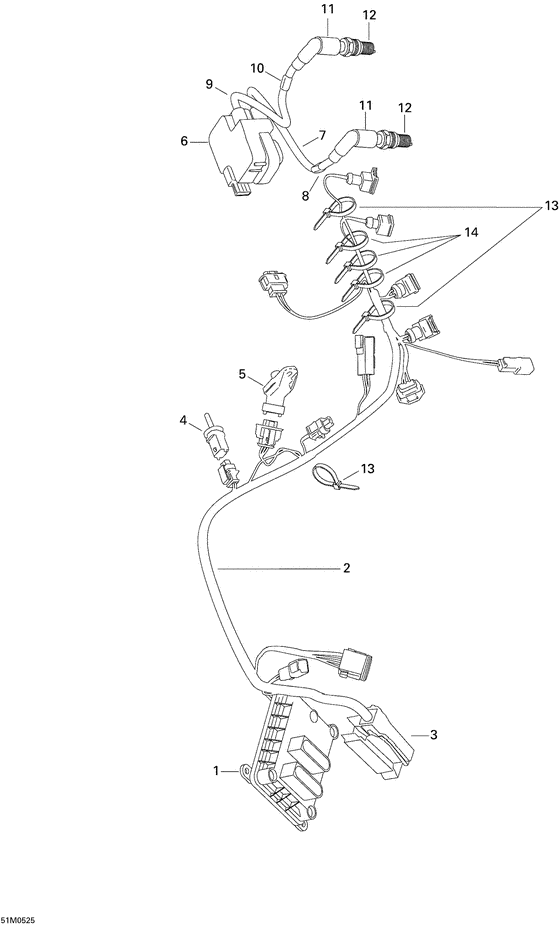

10- engine harness and electronic module Diagram Bombardier MX Z
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420665027
Boite electroni*electronic box
|
420665027 |
— | ||
| replacement | |||||
|
1
|
1
420665199 Boite electro. *elrctronic box |
420665199 |
US $1,251.51 |
||
|
2
|
2
420664317 Wiring harness assy |
420664317 |
US $611.97 |
||
|
3
|
3
420664450 Logement conex.*connector housing |
420664450 |
US $24.45 |
||
|
4
|
4
420966970
Sensor-temp.
|
420966970 |
— | ||
|
5
|
5
420274055
Capteur pressio*temperature sensor
|
420274055 |
— | ||
|
6
|
6
420266070 Coil-ignition |
420266070 |
US $181.39 |
||
| replacement | |||||
|
6
|
6
278001546 Bobine allumage*coil-ignition |
278001546 |
US $172.60 |
||
|
7
|
7
420664300 Cable-assy 365 mm mag |
420664300 |
US $62.39 |
||
| replacement | |||||
|
7
|
7
420665333 SPARK PLUG CABLE, 790 MM, REAR |
420665333 |
US $62.39 |
||
|
8
|
8
420660632 Marking sleeve p |
420660632 |
US $9.13 |
||
|
9
|
9
420664307 Cable ignition *ignition cable |
420664307 |
US $71.35 |
||
|
10
|
10
420660630 Marking sleeve p |
420660630 |
US $9.13 |
||
|
11
|
11
278000237
Capuchon bougie*cap-spark plug
|
278000237 |
— | ||
|
12
|
12
415128524 Bougie br9ecs *plug-spark br9ecs |
415128524 |
US $116.80 |
||
|
13
|
13
420866714 Attache *tie rap |
420866714 |
US $2.45 |
||
|
14
|
14
420866716 Attache *tie rap |
420866716 |
US $2.45 |
||
