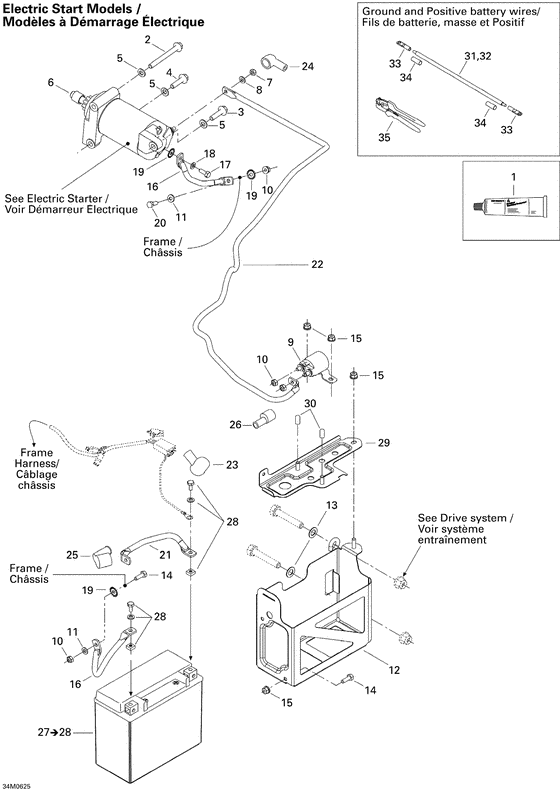

10- battery and starter Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
2
|
2
207587544 Screw-hex.flange din.6921 s.grip |
207587544 |
US $40.65 |
||
|
3
|
3
207583044 Screw-hex.flange din.6921 s.grip |
207583044 |
US $21.90 |
||
|
4
|
4
207583044 Screw-hex.flange din.6921 s.grip |
207583044 |
US $21.90 |
||
|
5
|
5
250200008 Washer-flat din.125a teflon-coat |
250200008 |
US $24.55 |
||
|
6
|
6
515176003
Demarreur *starter
|
515176003 |
— | ||
| replacement | |||||
|
6
|
6
515176133 Demarreur *starter |
515176133 |
US $563.96 |
||
|
7
|
7
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
8
|
8
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
9
|
9
515176011 Solenoide dem. *relay-starter |
515176011 |
US $69.21 |
||
|
10
|
10
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
11
|
11
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
12
|
12
515176230
Support batter.*battery support
|
515176230 |
— | ||
|
13
|
13
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
14
|
14
207161844 Screw-hex.cap din.933 |
207161844 |
US $7.70 |
||
|
15
|
15
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
16
|
16
515175749 Fil de masse *wire-ground |
515175749 |
US $17.82 |
||
|
17
|
17
207361644 Screw-hex.scotch grip din.933 |
207361644 |
US $28.50 |
||
|
18
|
18
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
19
|
19
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
20
|
20
207162044 Screw-hex.cap din.933 |
207162044 |
US $9.90 |
||
|
21
|
21
515175904 Fil de batterie*battery wire |
515175904 |
US $17.82 |
||
|
23
|
23
570151000 Capuchon prot. *cap-protection |
570151000 |
US $17.82 |
||
|
24
|
24
278001771 Capuchon batt. *cap-wire batt. |
278001771 |
US $29.15 |
||
|
25
|
25
570064200 Capuchon prot. *cap-protection |
570064200 |
US $17.82 |
||
|
26
|
26
515175919 Capuchon prot. *protector cap |
515175919 |
US $19.47 |
||
|
27
|
27
410301203 Batterie ytx20lbs*battery18amps(wet)Includes 27 to 28; |
410301203 |
US $190.18 |
||
| replacement | |||||
|
27
|
27
296000444 BATTERY 12 VOLT 18AH INBOXIncludes 27 to 28; |
296000444 |
US $187.24 |
||
|
28
|
28
295500849
Ens. boulon ba*fastener battery kit
|
295500849 |
— | ||
|
29
|
29
515175735 Laniere batteri*strip-battery |
515175735 |
US $19.92 |
||
|
30
|
30
515176141 Bouchon *cap |
515176141 |
US $41 |
||
|
31
|
31
278001680
Cable batt.noir*cable-batt.ground
|
278001680 |
— | ||
|
32
|
32
278001690
Cable batt.roug*cable-batt.red
|
278001690 |
— | ||
|
33
|
33
278001685
Cosse plate g/t*terminal-flat
|
278001685 |
— | ||
|
33
|
33
278001686
Cosse 45 g/t *terminal-45 deg.
|
278001686 |
— | ||
|
33
|
33
278001687
Cosse 90 g/t *terminal-90 deg.
|
278001687 |
— | ||
|
33
|
33
278001688 Cosse plate *terminal-flat |
278001688 |
US $3.89 |
||
|
33
|
33
278001776
Cosse plate p/t*terminal-flat
|
278001776 |
— | ||
|
33
|
33
278001682
Cosse plate p/t*terminal-flat
|
278001682 |
— | ||
|
33
|
33
278001683
Cosse 45 p/t *terminal-45 deg.
|
278001683 |
— | ||
|
33
|
33
278001684
Cosse 90 p/t *terminal-90 deg.
|
278001684 |
— | ||
|
34
|
34
710000483 Gaine thermo. *shrink tubing |
710000483 |
US $75.45 |
||
|
35
|
35
529035730
Pince sertissag*plier-crimp
|
529035730 |
— | ||
