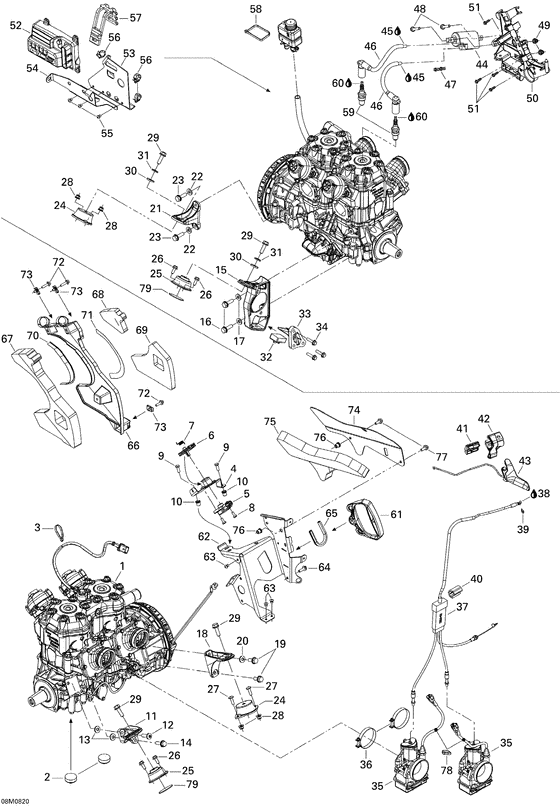

01- engine and engine support Diagram Bombardier MX Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
400604030
Moteur 593 *engine-593
|
400604030 |
— | ||
|
2
|
2
512059738 Butee *stopper |
512059738 |
US $21.39 |
||
|
3
|
3
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
4
|
4
512060336 Support tps |
512060336 |
US $25.45 |
||
|
5
|
5
404162079 Tps sensor-assy. |
404162079 |
US $343.69 |
||
|
6
|
6
512060335 Cap cam |
512060335 |
US $12.19 |
||
|
7
|
7
512060351 Cam spring |
512060351 |
US $14.25 |
||
|
8
|
8
208651241 Screw-pan hd.ph.din.7985a |
208651241 |
US $19.60 |
||
|
9
|
9
207361644 Screw-hex.scotch grip din.933 |
207361644 |
US $28.50 |
||
|
10
|
10
415107300
Ajout *insert
|
415107300 |
— | ||
|
11
|
11
512060173 Support pto re |
512060173 |
US $38.71 |
||
|
12
|
12
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
13
|
13
234281474 Washer-spring conical din.6796 |
234281474 |
US $19.20 |
||
|
14
|
14
207582586 Screw-hex.flange din.6921 s.grip |
207582586 |
US $1.79 |
||
|
15
|
15
512060203
Support pto av *support pto fr
|
512060203 |
— | ||
|
16
|
16
207582586 Screw-hex.flange din.6921 s.grip |
207582586 |
US $1.79 |
||
|
17
|
17
234281474 Washer-spring conical din.6796 |
234281474 |
US $19.20 |
||
|
18
|
18
512060404
Engine support mag
|
512060404 |
— | ||
|
19
|
19
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
20
|
20
234281474 Washer-spring conical din.6796 |
234281474 |
US $19.20 |
||
|
21
|
21
512060108 Support mag av *support mag fr |
512060108 |
US $47.91 |
||
|
22
|
22
207582586 Screw-hex.flange din.6921 s.grip |
207582586 |
US $1.79 |
||
|
23
|
23
234281474 Washer-spring conical din.6796 |
234281474 |
US $19.20 |
||
|
24
|
24
512060360 Tampon ancrage *rubber mount |
512060360 |
US $51.97 |
||
|
25
|
25
512060385 Tampon ancrage *rubber mount |
512060385 |
US $64.48 |
||
|
26
|
26
207561644 Screw-hex.flange din.6921 s.grip |
207561644 |
US $61.25 |
||
|
27
|
27
250000335 Screw-socket truss hd. m6x20 |
250000335 |
US $2.01 |
||
|
28
|
28
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
29
|
29
207582586 Screw-hex.flange din.6921 s.grip |
207582586 |
US $1.79 |
||
|
30
|
30
503183200 Washer-yellow |
503183200 |
US $42.30 |
||
|
31
|
31
234281474 Washer-spring conical din.6796 |
234281474 |
US $19.20 |
||
|
32
|
32
512060179 Butee *stopper |
512060179 |
US $24.45 |
||
|
33
|
33
512060180
Support
|
512060180 |
— | ||
|
34
|
34
207562544 Screw-hex.flange din.6921 s.grip |
207562544 |
US $21.80 |
||
|
35
|
35
403138796
Carburateur *carburetor
|
403138796 |
— | ||
|
36
|
36
512059835 Bride *clamp |
512059835 |
US $11.90 |
||
|
37
|
37
512060292 Cable accelerat*cable-throttle |
512060292 |
US $124.41 |
||
|
38
|
38
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
39
|
39
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
40
|
40
512060313 Protecteur *protector |
512060313 |
US $9.13 |
||
|
41
|
41
512060198
Logement supe. *housing-upper
|
512060198 |
— | ||
|
42
|
42
512060197 Logement inf. *hous.-lower |
512060197 |
US $8.13 |
||
|
43
|
43
512060268 Manette ass. *handle-assy |
512060268 |
US $82.57 |
||
|
44
|
44
512059968 Bobine allumage*coil-ignition |
512059968 |
US $61.15 |
||
|
45
|
45
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
46
|
46
512060291 Cable-ass.200m |
512060291 |
US $42.81 |
||
|
47
|
47
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
48
|
48
207663044
Screw-hex.flange din.6921
|
207663044 |
— | ||
|
49
|
49
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
50
|
50
512060350 Support bob *support coils |
512060350 |
US $18.33 |
||
|
51
|
51
241151640 Vis pt.hexagona*screw-pt.hex.f |
241151640 |
US $9.45 |
||
|
52
|
52
512060265 Calib. module |
512060265 |
US $1,379.02 |
||
|
53
|
53
512060337 Support ecm |
512060337 |
US $30.57 |
||
|
54
|
54
512060379 Supp.reservoir *support tank |
512060379 |
US $28.51 |
||
|
55
|
55
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
56
|
56
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
57
|
57
570069700
Loquet *latch
|
570069700 |
— | ||
|
58
|
58
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
59
|
59
512059552 Bougie br9ecs-5*plug-spark br9ecs-5 |
512059552 |
US $116.80 |
||
|
60
|
60
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
61
|
61
512060136 Poignee demarr.*starter grip |
512060136 |
US $14.25 |
||
|
62
|
62
512060352
Support poignee*grip support
|
512060352 |
— | ||
|
63
|
63
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
64
|
64
210262080 Screw-forming hex.hd.fl.gm6174m |
210262080 |
US $2.72 |
||
|
65
|
65
414506600 Moulure pa-br. *trim-w shield |
414506600 |
US $99 |
||
|
66
|
66
512060339 Plaque acous *noise shield |
512060339 |
US $17.29 |
||
|
67
|
67
512060343 Mousse acous *noise foam |
512060343 |
US $18.33 |
||
|
68
|
68
512060344 Mousse acous *noise foam |
512060344 |
US $9.13 |
||
|
69
|
69
512060362 Mousse acous *noise foam |
512060362 |
US $12.19 |
||
|
70
|
70
512060358
Feuille reflect*sheet-reflect
|
512060358 |
— | ||
|
71
|
71
512060371 Feuille reflect*sheet-reflect |
512060371 |
US $5.07 |
||
|
72
|
72
207652044 Screw-hex.flange din.6921 |
207652044 |
US $2.45 |
||
|
73
|
73
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
74
|
74
512060380
Plaque acous *noise shield
|
512060380 |
— | ||
|
75
|
75
512060381 Mousse acous *noise foam |
512060381 |
US $17.29 |
||
|
76
|
76
415107300
Ajout *insert
|
415107300 |
— | ||
|
77
|
77
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
78
|
78
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
79
|
79
512060410 Rubber washer |
512060410 |
US $9.13 |
