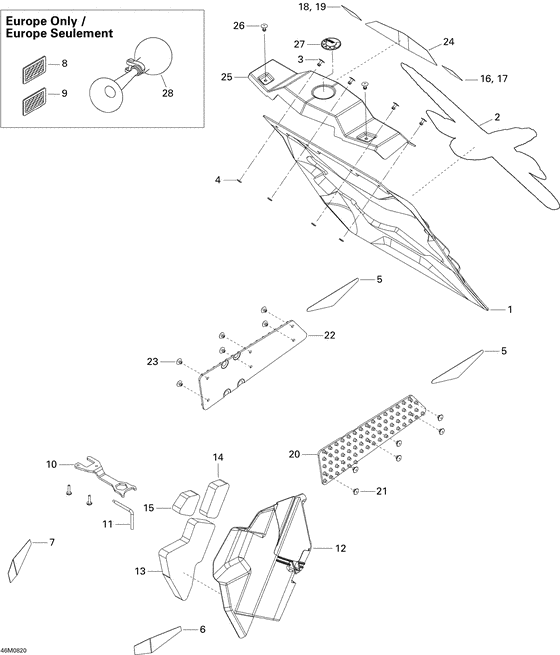

09- utilities Diagram Bombardier MX Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
520000669 Garde-neige *snow flap |
520000669 |
US $85.65 |
||
|
2
|
2
516003647 Decalque *sticker |
516003647 |
US $42.81 |
||
|
3
|
3
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
4
|
4
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
5
|
5
520000237 Reflect. arr. *reflector-rearCanada/USA; |
520000237 |
US $16.76 |
||
|
5
|
5
520000311 Reflect. arr. *rear reflectorEurope; |
520000311 |
US $16.76 |
||
|
6
|
6
520000718 Reflector-front rh |
520000718 |
US $11.49 |
||
|
7
|
7
520000719 Reflector-front lh |
520000719 |
US $11.49 |
||
|
8
|
8
520000271 Reflecteur amb.*reflector-amberEurope; |
520000271 |
US $16.76 |
||
|
9
|
9
415037900 Reflecteur *reflectorEurope; |
415037900 |
US $18.85 |
||
|
10
|
10
520000721 Cl+ *wrench |
520000721 |
US $24.45 |
||
|
11
|
11
417127044 Outil *tool |
417127044 |
US $9.13 |
||
|
12
|
12
520000741
Support *tool-kit rack
|
520000741 |
— | ||
|
13
|
13
520000743
Mousse *foam
|
520000743 |
— | ||
|
14
|
14
520000753 Mousse *foam |
520000753 |
US $8.38 |
||
|
15
|
15
520000754 Mousse *foam |
520000754 |
US $6.26 |
||
|
16
|
16
520000695 Warning decal eng |
520000695 |
US $0.02 |
||
|
17
|
17
520000696 Warning decal fra |
520000696 |
US $0.02 |
||
|
18
|
18
520000697 Etiquet.charge *load-label |
520000697 |
US $0.02 |
||
|
19
|
19
520000698 Etiquet.charge *load-label |
520000698 |
US $0.02 |
||
|
20
|
20
520000671
Plaque adherenc*plate-grip
|
520000671 |
— | ||
| replacement | |||||
|
20
|
20
860200164 Plaque adherenc*grip plate |
860200164 |
US $42.81 |
||
|
21
|
21
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
22
|
22
520000672
Plaque adherenc*plate-grip
|
520000672 |
— | ||
| replacement | |||||
|
22
|
22
860200164 Plaque adherenc*grip plate |
860200164 |
US $42.81 |
||
|
23
|
23
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
24
|
24
520000764 Reflecteur *reflecteur |
520000764 |
US $16.76 |
||
|
25
|
25
520000750 Couvre capuchon*cover |
520000750 |
US $175.41 |
||
|
26
|
26
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
27
|
27
219902468
Brp logo 48 mm
|
219902468 |
— | ||
| replacement | |||||
|
27
|
27
516008738 EMBLEM LOGO BRP |
516008738 |
US $17.15 |
||
|
28
|
28
549011291 Avertisseur *hornEurope; |
549011291 |
US $31.59 |
||
