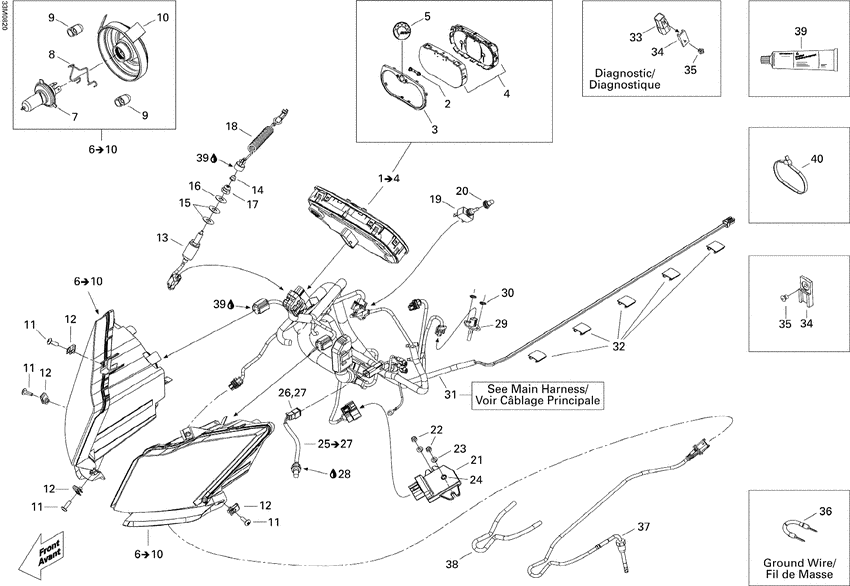

10- electrical system Diagram Bombardier MX Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176737 Ind.vitesse *speedometerIncludes 1 to 4; |
515176737 |
US $503.85 |
||
|
2
|
2
415129347
Bouton indica*button speedometer
|
415129347 |
— | ||
| replacement | |||||
|
2
|
2
415129355 Bouton indica*button speedometer |
415129355 |
US $21.23 |
||
|
3
|
3
415129348 Anneau cadran *ring-gauge |
415129348 |
US $13.46 |
||
|
4
|
4
415129349 Lentille *lens |
415129349 |
US $25.38 |
||
|
5
|
5
219902677
Logo brp *brp logo
|
219902677 |
— | ||
| replacement | |||||
|
5
|
5
516006224 BRP Logo, 20mm |
516006224 |
US $13.45 |
||
|
6
|
6
515176362
Headlamp-rh
Includes 6 to 10; |
515176362 |
— | ||
|
6
|
6
515176363
Headlamp-lh
Includes 6 to 10; |
515176363 |
— | ||
|
7
|
7
515176274 Ampoule halogen*bulb-hal.h4 |
515176274 |
US $25.31 |
||
|
8
|
8
515176493
Porte ampoule *bulb holder
|
515176493 |
— | ||
|
9
|
9
515176498 Capuchon *cap |
515176498 |
US $11.73 |
||
|
10
|
10
515176499 Couvercle *cover |
515176499 |
US $23.41 |
||
|
11
|
11
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
12
|
12
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
13
|
13
515175653 Inter.frein *switch-brake |
515175653 |
US $21.42 |
||
|
14
|
14
570151100 Cap.plongeur *cap-plunger |
570151100 |
US $54.25 |
||
|
15
|
15
250200032 Rondelle *washer |
250200032 |
US $65.80 |
||
|
16
|
16
510004418 Rondelle *washer |
510004418 |
US $73.30 |
||
|
17
|
17
415073500
Ecrou inter. *nut-switch
|
415073500 |
— | ||
|
18
|
18
515176462 Capuchon ass. *cap-assy. |
515176462 |
US $34.65 |
||
|
19
|
19
410107300 Int.poig.chauf.*switch-grip he |
410107300 |
US $38.98 |
||
|
20
|
20
515175281 Couv.interrupt.*cover-switch |
515175281 |
US $67.92 |
||
|
21
|
21
515176364 Regulator-volt |
515176364 |
US $145.83 |
||
|
22
|
22
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
23
|
23
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
24
|
24
234461608 Washer-lock serrated din.6798a-a2 |
234461608 |
US $7.40 |
||
|
25
|
25
515176398
Sensor-temp. (wts)
Includes 25 to 27; |
515176398 |
— | ||
|
26
|
26
515175670 Logement femel.*housing-female |
515175670 |
US $10.51 |
||
|
27
|
27
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
28
|
28
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
29
|
29
515176366 Capteur temp. *sensor-air |
515176366 |
US $21.42 |
||
|
30
|
30
389804300 Ecrou pression *push-nut |
389804300 |
US $7.10 |
||
|
31
|
31
515176623 Cablage ass. *wiring harness |
515176623 |
US $306.97 |
||
|
32
|
32
515176413
Moulure *trim
|
515176413 |
— | ||
|
33
|
33
278002148
Capuchon *connect-cap
|
278002148 |
— | ||
|
34
|
34
515175917 Clip *clip |
515175917 |
US $11.17 |
||
|
35
|
35
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
36
|
36
515176358 Fil de masse *wire-ground |
515176358 |
US $23.41 |
||
|
37
|
37
515176490
Sensor-temp. exh.
|
515176490 |
— | ||
| replacement | |||||
|
37
|
37
514054641 Capteur temp. *sensor-temp. |
514054641 |
US $244.77 |
||
|
38
|
38
515175442
Gaine *housing
|
515175442 |
— | ||
|
39
|
39
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
40
|
40
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
40
|
40
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
40
|
40
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
