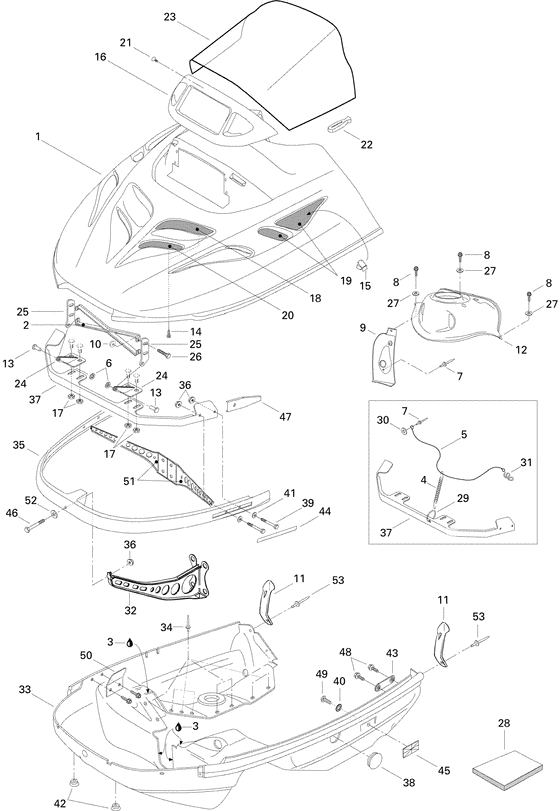

09- cab and console Diagram Bombardier MX Z
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
572077138
Capot (jaune)
|
572077138 |
— | ||
|
2
|
2
517278100
Renf. capot *reinf.-hood
|
517278100 |
— | ||
|
4
|
4
414763300 Ressort *spring |
414763300 |
US $29.15 |
||
|
5
|
5
415007300
New Genuine Part
|
415007300 |
— | ||
|
6
|
6
389804300 Ecrou pression *push-nut |
389804300 |
US $7.10 |
||
|
7
|
7
390406500 Rivet-pop 3/16 *rivet-pop 3/16 |
390406500 |
US $58.50 |
||
|
8
|
8
732600008
Screw-forming hex.hd.fl.gm6174m
|
732600008 |
— | ||
| replacement | |||||
|
8
|
8
210251680 Screw-forming hex.hd.fl.gm6174m |
210251680 |
US $19.60 |
||
|
9
|
9
572052101
Console manette*dash-handle
|
572052101 |
— | ||
|
10
|
10
228751045
Nut-flange elastic din.6926
|
228751045 |
— | ||
| replacement | |||||
|
10
|
10
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
11
|
11
570027100 Loquet de capot*latch-hood |
570027100 |
from US $12.92 |
||
|
12
|
12
572052700
Console inter. *dash-switch
|
572052700 |
— | ||
| replacement | |||||
|
12
|
12
517302542
Console inter. *dash-switch
|
517302542 |
— | ||
|
13
|
13
390906200 Rivet-steel flat head |
390906200 |
US $21.50 |
||
|
14
|
14
732601210 Screw-tapp.hex.wr.hd.sltd. |
732601210 |
US $9.80 |
||
|
15
|
15
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
16
|
16
572079200
Enjoliv. phare *mould.-lamp
|
572079200 |
— | ||
|
17
|
17
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
17
|
17
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
18
|
18
517277000
Grille sup.dr. *grill-upper rh
|
517277000 |
— | ||
|
18
|
18
517277100
Grille sup.ga. *grill-upper lh
|
517277100 |
— | ||
|
19
|
19
517280200
Grille lat.noir*grill-side black
|
517280200 |
— | ||
|
20
|
20
517265800
Grille avant dr*grill-fr.rh
|
517265800 |
— | ||
|
20
|
20
517265900
Grille avant ga*grill-fr.lh
|
517265900 |
— | ||
|
21
|
21
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.10 |
||
|
22
|
22
570023800 Loquet pare-bri*latch-windshield |
570023800 |
from US $6.09 |
||
|
23
|
23
414976800
Pare-brise bas *windshield-low
|
414976800 |
— | ||
|
24
|
24
517261000
New Genuine Part
|
517261000 |
— | ||
|
25
|
25
517261100 Charniere sup. *hinge-upper |
517261100 |
US $8.13 |
||
|
26
|
26
222051665
Screw-hex.cap din.933
|
222051665 |
— | ||
| replacement | |||||
|
26
|
26
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
27
|
27
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
28
|
28
414631900
Mousse acousti.*foam-acoustic
|
414631900 |
— | ||
|
28
|
28
414632400
Mousse acousti.*foam-acoustic
|
414632400 |
— | ||
|
29
|
29
414192100
Bague *ring
|
414192100 |
— | ||
| replacement | |||||
|
29
|
29
415058300 Bague *ring |
415058300 |
US $6.22 |
||
|
30
|
30
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
31
|
31
517262800 Attache *bracket |
517262800 |
US $15.73 |
||
|
32
|
32
517281100
Supp. avant sou*supp.-front weld
|
517281100 |
— | ||
| replacement | |||||
|
32
|
32
517294500
Supp. avant *support-front
|
517294500 |
— | ||
|
33
|
33
572076202
Coque *pan-botton
|
572076202 |
— | ||
| replacement | |||||
|
33
|
33
502006583
Coque *pan-botton
|
502006583 |
— | ||
|
34
|
34
390909400
Rivet-pop 3/16 *rivet-pop 3/16
|
390909400 |
— | ||
| replacement | |||||
|
34
|
34
390906800 Rivet-pop 3/16 *rivet-pop 3/16 |
390906800 |
US $62 |
||
|
35
|
35
517265400
Pare-chocs av. *bumper-front
|
517265400 |
— | ||
|
36
|
36
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
36
|
36
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
37
|
37
517265100
Attache charn.p*brkt-hinge paint
|
517265100 |
— | ||
|
38
|
38
570053700
Capuchon coque *cap-pan bottom
|
570053700 |
— | ||
|
39
|
39
222063565
Screw-hex.cap din.931
|
222063565 |
— | ||
| replacement | |||||
|
39
|
39
207063544 Screw-hex.cap din.931 |
207063544 |
US $17.70 |
||
|
40
|
40
224151101
Washer-lock serrated din.6798a
|
224151101 |
— | ||
| replacement | |||||
|
40
|
40
234451418 Washer-lock serrated din.6798a |
234451418 |
US $5.30 |
||
|
41
|
41
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
42
|
42
572072100 Bouchon *cap |
572072100 |
US $62.60 |
||
|
43
|
43
517267100
Attache lateral*bracket-side
|
517267100 |
— | ||
|
44
|
44
414886000
Decalque refl. *decal-refl.l
|
414886000 |
— | ||
| replacement | |||||
|
44
|
44
418001009
Decalque refl. *decal-refl.
|
418001009 |
— | ||
|
45
|
45
414510200 Reflecteur amb.*reflector-ambe |
414510200 |
US $23.41 |
||
|
46
|
46
222064565
Screw-hex.cap din.931
|
222064565 |
— | ||
| replacement | |||||
|
46
|
46
207064544 Screw-hex.cap din.931 |
207064544 |
US $27 |
||
|
47
|
47
517278700
Support
|
517278700 |
— | ||
|
48
|
48
732600002
Screw-forming hex.hd.fl.gm6174m
|
732600002 |
— | ||
| replacement | |||||
|
48
|
48
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
49
|
49
222851065
Screw-pan hd.ph.din.7985a
|
222851065 |
— | ||
| replacement | |||||
|
49
|
49
208651041 Screw-pan hd.ph.din.7985a |
208651041 |
US $19.60 |
||
|
50
|
50
518312500
Guide capot *guide-hood
|
518312500 |
— | ||
|
51
|
51
517268000
Support gauche *support-lh.
|
517268000 |
— | ||
| replacement | |||||
|
51
|
51
517295000
Support gauche *support-lh
|
517295000 |
— | ||
|
51
|
51
517268100
Support droit *support-rh.
|
517268100 |
— | ||
| replacement | |||||
|
51
|
51
517295100
Support droit *support-rh
|
517295100 |
— | ||
|
52
|
52
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
53
|
53
390908000
Rivet-pop 3/16 *rivet-pop 3/16
|
390908000 |
— | ||
| replacement | |||||
|
53
|
53
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
||
