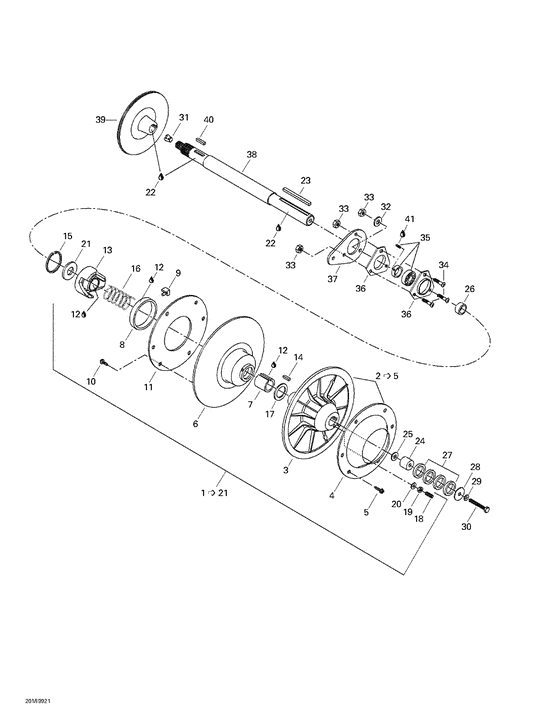

05- driven pulley Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
504142200
Flasque fixe as*flange-fix.assy
Includes 2 - 5.; |
504142200 |
— | ||
| replacement | |||||
|
2
|
2
417126664
Flasque fixe us*fix flange mach
Includes 2 - 5.; |
417126664 |
— | ||
|
3
|
3
504141600
Flasque fixe us*flange-fix.mach.
|
504141600 |
— | ||
| replacement | |||||
|
3
|
3
417126664
Flasque fixe us*fix flange mach
|
417126664 |
— | ||
|
4
|
4
504142000 Coupole *cup |
504142000 |
US $45.85 |
||
|
5
|
5
732601067
Screw-forming hex.hd.fl.gm6174m
|
732601067 |
— | ||
| replacement | |||||
|
5
|
5
210251180 Screw-forming hex.hd.fl.gm6174m |
210251180 |
US $21.60 |
||
|
6
|
6
504144000
Flasque coul.as*flange-slid.assy
Includes 6 - 11.; |
504144000 |
— | ||
| replacement | |||||
|
6
|
6
417126486
Flasque coul.as*flange-slid.as
Includes 6 - 11.; |
417126486 |
— | ||
|
7
|
7
415011200 Douille *bushing |
415011200 |
US $40.09 |
||
|
8
|
8
414876600 Coussinet garl.*bushing-garlock |
414876600 |
US $41.09 |
||
|
9
|
9
414918000 Glissiere came *shoe-cam slid. |
414918000 |
US $50.70 |
||
|
10
|
10
732601067
Screw-forming hex.hd.fl.gm6174m
|
732601067 |
— | ||
| replacement | |||||
|
10
|
10
210251180 Screw-forming hex.hd.fl.gm6174m |
210251180 |
US $21.60 |
||
|
11
|
11
504142100
Cerceau *ring
|
504142100 |
— | ||
|
12
|
12
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
13
|
13
417126380
Came usine *cam-mach.
|
417126380 |
— | ||
|
14
|
14
414820800 Clavette *key |
414820800 |
US $35.45 |
||
|
15
|
15
371903100 Circlip *circlip |
371903100 |
US $51.35 |
||
|
16
|
16
414558900
Ressort rappel *spring-release
|
414558900 |
— | ||
|
17
|
17
504141900 Rondelle appuie*washer-thrust |
504141900 |
US $8.13 |
||
|
18
|
18
206263044 Screw-set socket din.913 |
206263044 |
US $22.10 |
||
|
19
|
19
228061045
Nut-hexagonal din.934
|
228061045 |
— | ||
| replacement | |||||
|
19
|
19
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
20
|
20
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
21
|
21
504141800
Rondelle *washer
|
504141800 |
— | ||
|
22
|
22
413701000
Loctite antigrippage 767, 12 oz
|
413701000 |
— | ||
|
23
|
23
414581300
Clavette *key
|
414581300 |
— | ||
|
24
|
24
504091600
Rallonge arbre *ext-countersha
|
504091600 |
— | ||
|
25
|
25
224081201 Washer-flat |
224081201 |
US $19.60 |
||
|
26
|
26
504128300
Cale epaisseur *shim
|
504128300 |
— | ||
|
27
|
27
504108200 Cale epaisseur *shim |
504108200 |
US $50.70 |
||
|
28
|
28
517078700 Rondelle *washer |
517078700 |
US $63.90 |
||
|
29
|
29
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
29
|
29
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
30
|
30
222086565
Screw-hex.cap din.931
|
222086565 |
— | ||
| replacement | |||||
|
30
|
30
207086544 Screw-hex.cap din.931 |
207086544 |
US $18.90 |
||
|
31
|
31
414784800 Bouchon liege *cork |
414784800 |
US $3.01 |
||
|
32
|
32
224081171
Washer-flat din.125a
|
224081171 |
— | ||
| replacement | |||||
|
32
|
32
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
33
|
33
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
34
|
34
205482546 Screw-socket bn.hd.iso.7380 |
205482546 |
US $10.65 |
||
|
35
|
35
405408300
Roulement bille*ball bearing
|
405408300 |
— | ||
|
36
|
36
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
37
|
37
501022300
Entretoise pou.*spacer-pulley
|
501022300 |
— | ||
|
38
|
38
504149400
Arbre renvoi *shaft-counter
|
504149400 |
— | ||
|
39
|
39
507031300
Disque usine *disk-mach.
|
507031300 |
— | ||
| replacement | |||||
|
39
|
39
507032456 Disque usine *disk-mach. |
507032456 |
US $152.95 |
||
|
40
|
40
507021300 Clavette *key |
507021300 |
US $13.45 |
||
|
41
|
41
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
41
|
41
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
