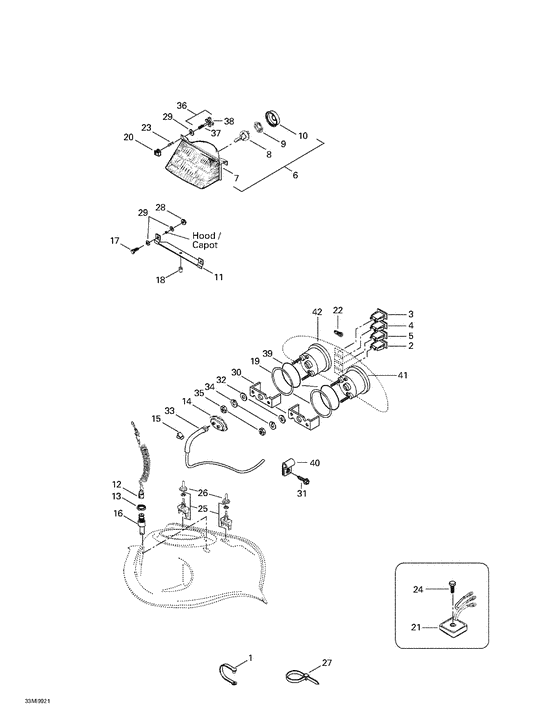

10- electrical system Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
414379300 Pince cable *clip-cable |
414379300 |
US $30.35 |
||
|
2
|
2
410113300
Lampe temoin *lamp-pilot
|
410113300 |
— | ||
|
3
|
3
410109500
Lampe temoin *lamp-pilot
|
410109500 |
— | ||
| replacement | |||||
|
3
|
3
515175728 Lampe temoin *lamp-pilot |
515175728 |
US $15.73 |
||
|
4
|
4
410109600
Lampe temoin *lamp-pilot
|
410109600 |
— | ||
| replacement | |||||
|
4
|
4
515175726 Lampe temoin *lamp-pilot |
515175726 |
US $15.73 |
||
|
5
|
5
410109700
Lampe temoin *lamp-pilot
|
410109700 |
— | ||
|
6
|
6
410609100
Phare *headlamp
Includes 6 - 10.; |
410609100 |
— | ||
|
7
|
7
410609300
Phare halogene *headlamp-halo.
|
410609300 |
— | ||
| replacement | |||||
|
7
|
7
410609100
Phare *headlamp
|
410609100 |
— | ||
|
8
|
8
410503700
Ampoule halogen*bulb-hal.h4 xx
|
410503700 |
— | ||
| replacement | |||||
|
8
|
8
515176274 Ampoule halogen*bulb-hal.h4 |
515176274 |
US $25.31 |
||
|
9
|
9
410608300 Porte ampoule *holder-bulb |
410608300 |
US $13.21 |
||
|
10
|
10
410607100
Couvercle *cover
|
410607100 |
— | ||
|
11
|
11
517218500
Support phare *support-lamp
|
517218500 |
— | ||
|
12
|
12
515166900
Capuchon dess *cap-dess.
|
515166900 |
— | ||
| replacement | |||||
|
12
|
12
515176461
Capuchon dess *cap-dess.
|
515176461 |
— | ||
|
13
|
13
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
14
|
14
572022300
Corr.vitesse *drive-angle 1994 -
|
572022300 |
— | ||
|
15
|
15
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
16
|
16
515166800 Borne ass. *terminal-ass. |
515166800 |
US $92.77 |
||
|
17
|
17
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
18
|
18
410608200 Butoir caout. *bumper-rubber |
410608200 |
US $7.09 |
||
|
19
|
19
517258500 Rondelle *washer |
517258500 |
US $3.89 |
||
|
20
|
20
572078600 Ecrou de phare *nut-lamp |
572078600 |
US $38.90 |
||
|
21
|
21
515163800 Regu.tension as*regu-volt.assy |
515163800 |
US $58.09 |
||
|
22
|
22
410504200 Ampoule cadran *bulb-meter |
410504200 |
US $70.90 |
||
|
23
|
23
517168600 Ressort *spring |
517168600 |
US $36.04 |
||
|
24
|
24
732600016
Screw-forming hex.hd.fl.gm6174m
|
732600016 |
— | ||
| replacement | |||||
|
24
|
24
210263580
Screw-forming hex.hd.fl.gm6174m
|
210263580 |
— | ||
|
25
|
25
410107300 Int.poig.chauf.*switch-grip he |
410107300 |
US $38.98 |
||
|
26
|
26
515175281 Couv.interrupt.*cover-switch |
515175281 |
US $67.92 |
||
|
27
|
27
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
28
|
28
228751045
Nut-flange elastic din.6926
|
228751045 |
— | ||
| replacement | |||||
|
28
|
28
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
29
|
29
391302100 Washer-flat yic |
391302100 |
US $10 |
||
|
30
|
30
414806500
Support boitier*holder-case
|
414806500 |
— | ||
|
31
|
31
365901100 Screw-hex.taping 12 |
365901100 |
US $15.60 |
||
|
32
|
32
414806800
Washer-flat
|
414806800 |
— | ||
| replacement | |||||
|
32
|
32
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
33
|
33
414761400
Cable vitesse *cable-speedo
|
414761400 |
— | ||
|
34
|
34
414806700
Washer-lock
|
414806700 |
— | ||
|
35
|
35
414806900
Ecrou *nut
|
414806900 |
— | ||
|
36
|
36
415100700
Vis ajust. ass.*screw-adjust.a
Includes 36 - 38.; |
415100700 |
— | ||
|
37
|
37
732603004
Screw-plastite hex.48-2 7mm af
|
732603004 |
— | ||
| replacement | |||||
|
37
|
37
243044040
Screw-plastite hex.48-2 7mm af
|
243044040 |
— | ||
|
38
|
38
572106600 Manette *handle |
572106600 |
US $10.52 |
||
|
39
|
39
414807100 Joint torique *packing |
414807100 |
US $3.89 |
||
|
40
|
40
414176000 Attache collier*open clamp |
414176000 |
US $27 |
||
|
41
|
41
415096400
Ind.vitesse *speedometer
|
415096400 |
— | ||
| replacement | |||||
|
41
|
41
515175336 Ind.vitesse *speedometer |
515175336 |
US $266.19 |
||
|
42
|
42
415096500
Compte-tours *tachometer
|
415096500 |
— | ||
| replacement | |||||
|
42
|
42
515175341
Compte-tours *tachometer
|
515175341 |
— | ||
