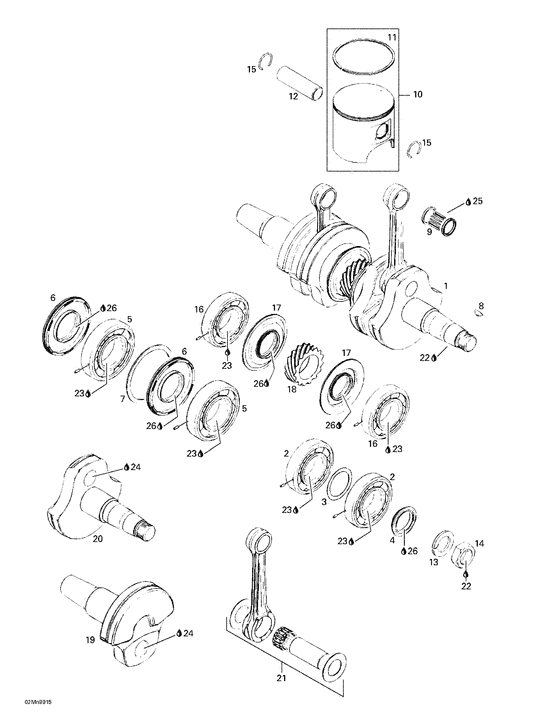

01- crankshaft and pistons Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
420888284
Ens.tige rep. *kit-rod repair
|
420888284 |
— | ||
| replacement | |||||
|
|
420887988
Tige rep.pto. *rod-repair pto.
|
420887988 |
— | ||
|
1
|
1
420888280
Vilebrequin *crankshaft
Includes 1 - 8.; |
420888280 |
— | ||
|
2
|
2
420832575 Roulement bille*ball bearing |
420832575 |
US $58.62 |
||
|
3
|
3
420427502 Rondelle ajus *washer-adj. |
420427502 |
US $16.30 |
||
|
4
|
4
420931790
Anneau etanche *seal-oil
|
420931790 |
— | ||
|
5
|
5
420832600 Roulement bille*ball bearing |
420832600 |
US $73.41 |
||
|
6
|
6
420931280 Anneau etanche *seal-oil |
420931280 |
US $58.09 |
||
|
7
|
7
420926190 Rondelle *washer |
420926190 |
US $12.55 |
||
|
8
|
8
420246015 Clavette *key-woodruff |
420246015 |
US $3.60 |
||
|
9
|
9
420832425
Roul.aiguille *needle bearing
|
420832425 |
— | ||
| replacement | |||||
|
9
|
9
420832445 Roul.aiguille *needle bearing |
420832445 |
US $33.20 |
||
|
10
|
10
420888290
Piston 77,93 *piston-assy 77,93
Includes 10 - 11.; |
420888290 |
— | ||
|
11
|
11
420815220
Segment semi-tr*ring-semi trap
|
420815220 |
— | ||
| replacement | |||||
|
11
|
11
420815222
Segment semi-tr*ring-semi trap
|
420815222 |
— | ||
|
12
|
12
420916370
Axe de piston *pin-gudgeon
|
420916370 |
— | ||
| replacement | |||||
|
12
|
12
420916371 Axe de piston *pin-gudgeon |
420916371 |
US $71.30 |
||
|
13
|
13
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
US $24.50 |
||
|
14
|
14
420842230
Nut-hex.m22 x 1,5
|
420842230 |
— | ||
| replacement | |||||
|
14
|
14
420842234
Nut-hex.m22 x 1,5
|
420842234 |
— | ||
|
15
|
15
420845102 Circlip piston *circlip-piston |
420845102 |
US $9.70 |
||
|
16
|
16
420832575 Roulement bille*ball bearing |
420832575 |
US $58.62 |
||
|
17
|
17
420931450 Anneau etanche *seal-oil |
420931450 |
US $48.93 |
||
|
18
|
18
420834355 Engrenage cent.*gear-central |
420834355 |
US $100.93 |
||
|
19
|
19
420818706
Vilebrequin pto*crankshaft-pto
|
420818706 |
— | ||
|
20
|
20
420818736
Crankshaft (mag side)
|
420818736 |
— | ||
|
21
|
21
420888283
Ens.tige rep. *kit-rod repair
|
420888283 |
— | ||
| replacement | |||||
|
21
|
21
420887989
Tige rep.mag. *rod-repair mag.
|
420887989 |
— | ||
|
22
|
22
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
22
|
22
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
23
|
23
413701000
Loctite antigrippage 767, 12 oz
|
413701000 |
— | ||
|
24
|
24
293800039
Loctite 642 *loctite-642
|
293800039 |
— | ||
| replacement | |||||
|
24
|
24
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
25
|
25
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
|
26
|
26
420899271 Graisse *grease |
420899271 |
US $83.84 |
||
