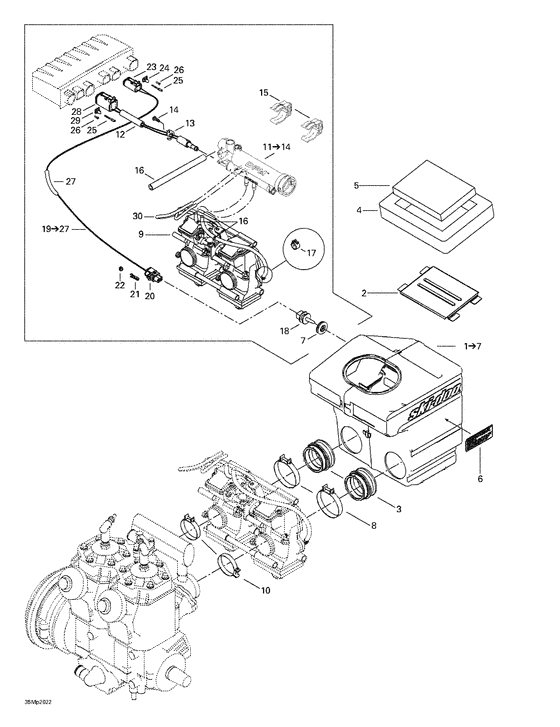

02- air intake system Diagram Bombardier MX Z
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
508000087
Silenc.adm.ass.*intake-air ass
|
508000087 |
— | ||
|
2
|
2
508000004 Grille adm. *grill-intake |
508000004 |
US $140.73 |
||
|
3
|
3
508000092 Adap.admission *adap-air intake |
508000092 |
US $19.33 |
||
|
4
|
4
508000099 Mousse ext. *foam-lower |
508000099 |
US $20.37 |
||
|
5
|
5
415103200
Filtre a air *filter-air
|
415103200 |
— | ||
|
6
|
6
516000130
Etiquette att. *caution-label
|
516000130 |
— | ||
|
7
|
7
570065500 Anneau *grommet |
570065500 |
US $14.25 |
||
|
8
|
8
508000162
Bride *clamp
|
508000162 |
— | ||
| replacement | |||||
|
8
|
8
508000346 Clamp |
508000346 |
US $10.52 |
||
|
9
|
9
403138591
Ensemble carb. *kit-carb.-tm-40
|
403138591 |
— | ||
|
10
|
10
512059192
Bride *clamp
|
512059192 |
— | ||
| replacement | |||||
|
10
|
10
293650153 Bride serrage *clamp |
293650153 |
US $8.13 |
||
|
11
|
11
512059114
Collect.pres. *manif.-pres.
Includes 11 - 14.; |
512059114 |
— | ||
| replacement | |||||
|
11
|
11
512059573
Collecteur pres*manifold-press
Includes 11 - 14.; |
512059573 |
— | ||
|
12
|
12
515175271
Cablage collect*harness-press.manif.
|
515175271 |
— | ||
|
13
|
13
415061600 Barrure electr.*lock-solenoid |
415061600 |
US $8.13 |
||
|
14
|
14
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
15
|
15
512058919 Support *support |
512058919 |
US $14.25 |
||
|
16
|
16
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
17
|
17
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
18
|
18
270600000 Capteur temp. *sensor-air |
270600000 |
US $88.69 |
||
|
19
|
19
515175121
Cablage temp. *harness-temp.
Includes 19 - 27.; |
515175121 |
— | ||
| replacement | |||||
|
19
|
19
515175589
Cablage temp. *harness-temp.
Includes 19 - 27.; |
515175589 |
— | ||
|
20
|
20
278001005 Bloc 2 circ.mal*housing-tab |
278001005 |
US $21.42 |
||
|
21
|
21
278000998 Cosse femelle *terminal-femelle |
278000998 |
US $58.70 |
||
|
22
|
22
278000999 Joint de fil *seal-wire |
278000999 |
US $21.15 |
||
|
23
|
23
515175245
Logement femel.*housing-female
|
515175245 |
— | ||
|
24
|
24
515175246
Verrou femelle *lock-female
|
515175246 |
— | ||
|
25
|
25
409015100 Cosse femelle *terminal-femal. |
409015100 |
US $26 |
||
|
26
|
26
515175303 Bouchon *plug |
515175303 |
US $30.35 |
||
|
27
|
27
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
28
|
28
409015400 Logement fem.6c*housing-fem.6c |
409015400 |
US $12.58 |
||
|
29
|
29
409014900 Verrou femelle *lock-female |
409014900 |
US $4.05 |
||
|
30
|
30
404161904 Durite *hose |
404161904 |
US $16.93 |
||
