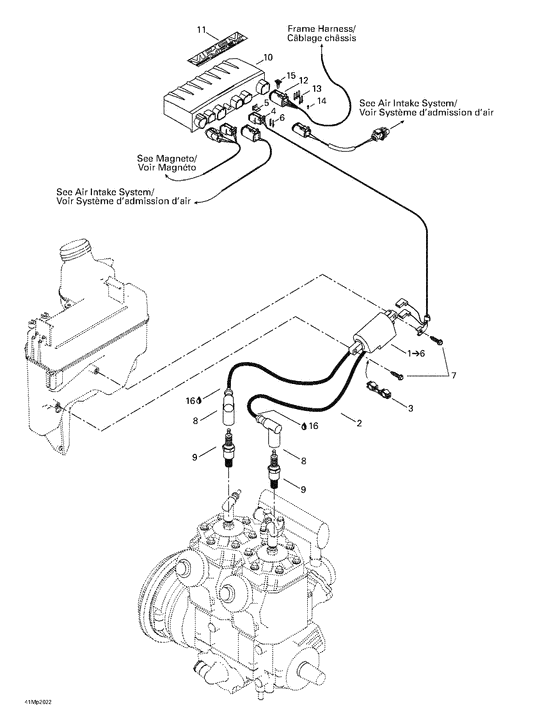

03- ignition Diagram Bombardier MX Z
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
512059039 Bobine allumage*coil-ignition |
512059039 |
US $95.25 |
||
|
2
|
2
278001268
Fil bougie *wire-spark plug
|
278001268 |
— | ||
| replacement | |||||
|
2
|
2
278002198
Fil bougie *wire-spark plug
|
278002198 |
— | ||
|
3
|
3
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
4
|
4
409207300 Logement femel.*housing-female |
409207300 |
US $10.85 |
||
|
5
|
5
409207100 Verrou femelle *lock-female |
409207100 |
US $3.11 |
||
|
6
|
6
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
7
|
7
250000005
Screw-tapp.hex.type-ab
|
250000005 |
— | ||
|
8
|
8
278000237
Capuchon bougie*cap-spark plug
|
278000237 |
— | ||
|
9
|
9
414961100
Bougie br9es *plug-spark br9es
|
414961100 |
— | ||
| replacement | |||||
|
9
|
9
219703120 SPARK PLUG, NGK BR9ES |
219703120 |
US $21.84 |
||
|
10
|
10
515175375
Module calibre *module-calib.
|
515175375 |
— | ||
|
11
|
11
516000245
Decal.boit.elec*decal.-elect.box
|
516000245 |
— | ||
|
12
|
12
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
13
|
13
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
14
|
14
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
15
|
15
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
16
|
16
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
