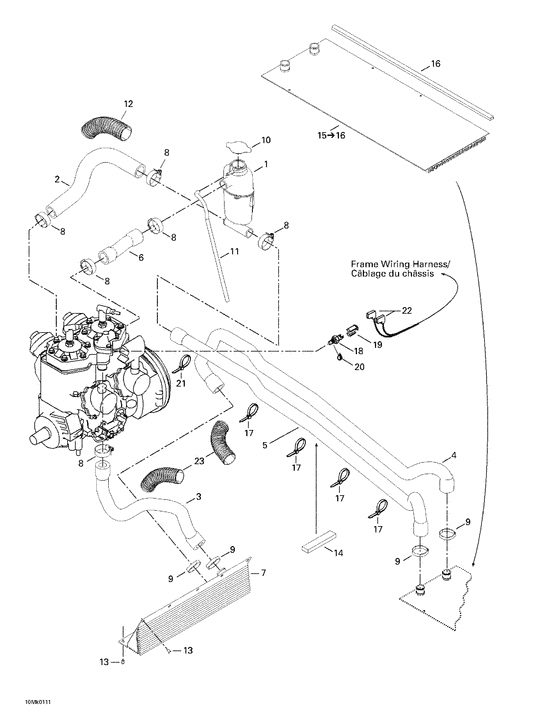

01- cooling system Diagram Bombardier MX Z
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000114
Res.antigel *tank-coolant
|
509000114 |
— | ||
| replacement | |||||
|
1
|
1
509000134 Res.antigel *tank-coolant |
509000134 |
US $83.61 |
||
|
2
|
2
509000001
Boyau entre mot*hose-inlet eng
|
509000001 |
— | ||
| replacement | |||||
|
2
|
2
509000135 Boyau entre mot*hose-inlet eng |
509000135 |
US $41.77 |
||
|
3
|
3
509000046 Boyau sort.mot.*hose-out.eng. |
509000046 |
US $54.03 |
||
|
4
|
4
509000003 Boyau inter rad*hose-radiator |
509000003 |
US $98.89 |
||
|
5
|
5
509000004
Boyau sort.rad.*hose-out.rad.
|
509000004 |
— | ||
|
6
|
6
509000112
Boyau *hose
|
509000112 |
— | ||
|
7
|
7
517297100
Radiateur av.s.*rad.-front weld.
|
517297100 |
— | ||
|
8
|
8
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
9
|
9
509000045 Bride serrage *clamp-gear |
509000045 |
US $104.70 |
||
|
10
|
10
414684700
Bouchon radiat.*cap-pressure
|
414684700 |
— | ||
| replacement | |||||
|
10
|
10
509000187 Bouchon radiat.*pressure cap |
509000187 |
US $32.15 |
||
|
11
|
11
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
12
|
12
415084700 Gaine *protector tube |
415084700 |
US $2.53 |
||
|
13
|
13
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
14
|
14
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
15
|
15
517296300
Radiateur arr.s*rad.-rear weld.
Includes 15 - 16.; |
517296300 |
— | ||
|
16
|
16
518321655
Protecteur *protector
|
518321655 |
— | ||
| replacement | |||||
|
16
|
16
415012300 Protecteur *protector |
415012300 |
US $18.33 |
||
|
17
|
17
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
18
|
18
512047000
Capteur temp. *sensor-temp.
|
512047000 |
— | ||
|
19
|
19
515175297
Tampon connect.*plug-connector
|
515175297 |
— | ||
|
20
|
20
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
21
|
21
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
22
|
22
409010300 Cosse femelle *terminal-femal. |
409010300 |
US $58.70 |
||
|
23
|
23
409902200 Gaine 25mm *tubing-25mm |
409902200 |
US $15.73 |
||
