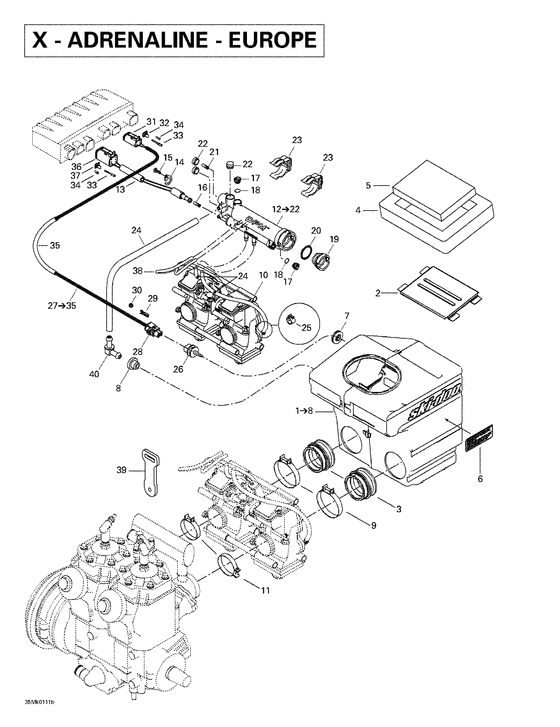

02- air intake system (X, Adrenaline, Europe) Diagram Bombardier MX Z
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
508000152
Silenc.adm.ass.*intake-air assy
Includes 1 - 8. (X-ADRENALINE-EUROPE); |
508000152 |
— | ||
| replacement | |||||
|
1
|
1
508000287
Silenc.adm.ass.*intake-air assy
Includes 1 - 8. (X-ADRENALINE-EUROPE); |
508000287 |
— | ||
|
2
|
2
508000004 Grille adm. *grill-intake |
508000004 |
US $140.73 |
||
|
3
|
3
508000092 Adap.admission *adap-air intake |
508000092 |
US $19.33 |
||
|
4
|
4
508000099 Mousse ext. *foam-lower |
508000099 |
US $20.37 |
||
|
5
|
5
508000154 Filtre a air *filter-air |
508000154 |
US $20.37 |
||
|
6
|
6
516000130
Etiquette att. *caution-label
|
516000130 |
— | ||
|
7
|
7
570065500 Anneau *grommet |
570065500 |
US $14.25 |
||
|
8
|
8
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
9
|
9
508000162
Bride *clamp
|
508000162 |
— | ||
| replacement | |||||
|
9
|
9
508000346 Clamp |
508000346 |
US $10.52 |
||
|
10
|
10
403138661
Ensemble carb. *kit-carb.-tm-40
|
403138661 |
— | ||
|
11
|
11
512059305
Bride *clamp
|
512059305 |
— | ||
| replacement | |||||
|
11
|
11
512059835 Bride *clamp |
512059835 |
US $11.90 |
||
|
12
|
12
512059408
Collect.pres.as*manif.-pres.assy
Includes 12 - 22. (X-ADRENALINE-EUROPE); |
512059408 |
— | ||
| replacement | |||||
|
12
|
12
512059567
Collecteur pres*manifold-press
Includes 12 - 22. (X-ADRENALINE-EUROPE); |
512059567 |
— | ||
|
13
|
13
515175271
Cablage collect*harness-press.manif.
|
515175271 |
— | ||
|
14
|
14
415061600 Barrure electr.*lock-solenoid |
415061600 |
US $8.13 |
||
|
15
|
15
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
16
|
16
404161825
Gicleur lanceur*starter-jet
|
404161825 |
— | ||
|
17
|
17
512058921
Bouchon *cap
|
512058921 |
— | ||
|
18
|
18
512058925
Joint torique *o-ring
|
512058925 |
— | ||
|
19
|
19
512058949
Bouchon *cap
|
512058949 |
— | ||
|
20
|
20
512058950
Joint torique *o-ring
|
512058950 |
— | ||
|
23
|
23
512058919 Support *support |
512058919 |
US $14.25 |
||
|
24
|
24
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
25
|
25
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
26
|
26
270600000 Capteur temp. *sensor-air |
270600000 |
US $88.69 |
||
|
27
|
27
515175589
Cablage temp. *harness-temp.
Includes 27 - 35.; |
515175589 |
— | ||
|
28
|
28
515175588 Loge.femelle *housing-female |
515175588 |
US $16.29 |
||
|
29
|
29
278000998 Cosse femelle *terminal-femelle |
278000998 |
US $58.70 |
||
|
30
|
30
278000999 Joint de fil *seal-wire |
278000999 |
US $21.15 |
||
|
31
|
31
515175245
Logement femel.*housing-female
|
515175245 |
— | ||
|
32
|
32
515175246
Verrou femelle *lock-female
|
515175246 |
— | ||
|
33
|
33
409015100 Cosse femelle *terminal-femal. |
409015100 |
US $26 |
||
|
34
|
34
515175303 Bouchon *plug |
515175303 |
US $30.35 |
||
|
35
|
35
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
36
|
36
409015400 Logement fem.6c*housing-fem.6c |
409015400 |
US $12.58 |
||
|
37
|
37
409014900 Verrou femelle *lock-female |
409014900 |
US $4.05 |
||
|
38
|
38
404161904 Durite *hose |
404161904 |
US $16.93 |
||
|
39
|
39
512059372
Loquet carb. *latch-carburator
|
512059372 |
— | ||
|
40
|
40
414580600 Raccord male *connector-male |
414580600 |
US $27.35 |
||
