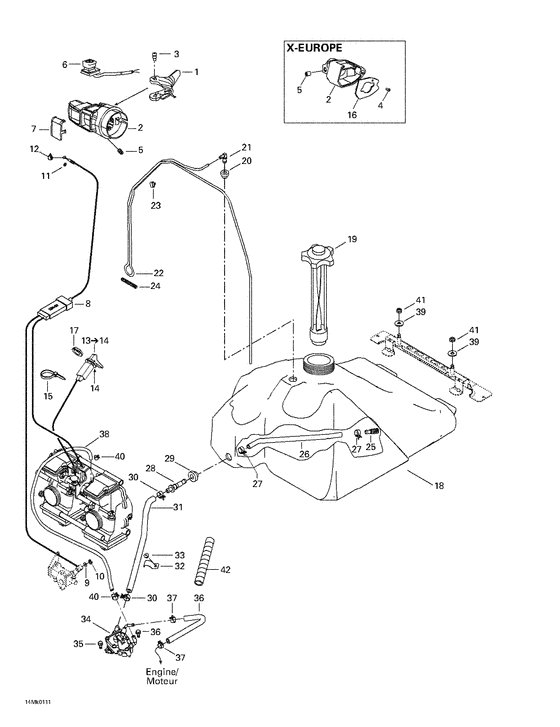

02- fuel system Diagram Bombardier MX Z
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
512059295
Logement acc. *housing-throttle
|
512059295 |
— | ||
| replacement | |||||
|
|
512060200 Logement acc. *housing-throttle |
512060200 |
US $30.57 |
||
|
1
|
1
512059107
Manette ass. *handle-assy
|
512059107 |
— | ||
| replacement | |||||
|
1
|
1
512059481 Manette ass. *handle-assy |
512059481 |
US $85.65 |
||
|
2
|
2
512059109
Logement acc. *housing-throttle
|
512059109 |
— | ||
| replacement | |||||
|
2
|
2
512059763 Logem. accel. *housing throttle |
512059763 |
US $28.51 |
||
|
3
|
3
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
4
|
4
414473200 Screw-thread cut.ph.pan type25 |
414473200 |
US $10.70 |
||
| replacement | |||||
|
4
|
4
211000098 Screw-thread cut.ph.pan type25 |
211000098 |
US $49.10 |
||
|
5
|
5
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
6
|
6
515175410
Inter.urgence *switch-kill
|
515175410 |
— | ||
| replacement | |||||
|
6
|
6
548872536
Inter.urgence *switch-kill
|
548872536 |
— | ||
|
7
|
7
572100901 Couv.interrupt.*cover-switch |
572100901 |
US $14.35 |
||
|
8
|
8
512059388 Cable accelerat*cable-throttle |
512059388 |
US $101.97 |
||
|
9
|
9
414753300
Rondelle *washer
|
414753300 |
— | ||
|
10
|
10
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
11
|
11
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
12
|
12
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
13
|
13
512059110 Cable etrang. *cable-chokeIncludes 13 - 14.; |
512059110 |
US $82.57 |
||
|
14
|
14
394103300
Washer-lock int.teeth
|
394103300 |
— | ||
|
15
|
15
515175220 Tie rap *tie-rap |
515175220 |
US $9.90 |
||
|
16
|
16
572099400
Plaque *plate
|
572099400 |
— | ||
| replacement | |||||
|
16
|
16
512059507 Plaque *plate |
512059507 |
US $8.13 |
||
|
17
|
17
512059094 Ecrou plastique*nut-plastic |
512059094 |
US $5.87 |
||
|
18
|
18
513032987
Reservoir essen*tank-fuel
|
513032987 |
— | ||
|
19
|
19
513032901
Bouchon res.ess*cap-fuel tank
|
513032901 |
— | ||
| replacement | |||||
|
19
|
19
513033020 Bouchon res.ess*cap-fuel tank |
513033020 |
US $28.51 |
||
|
20
|
20
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
21
|
21
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
22
|
22
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
23
|
23
513032923 Bride de tube *clamp-tube |
513032923 |
US $8.55 |
||
|
24
|
24
414818200 Ressort *spring |
414818200 |
US $3.01 |
||
|
25
|
25
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
26
|
26
415005700 Boyau polyure *hose-polyurethane |
415005700 |
US $9.78 |
||
|
27
|
27
513033010 Bride serrage *clamp |
513033010 |
US $42.75 |
||
|
28
|
28
414872700 Raccord male *connector-male |
414872700 |
US $9.80 |
||
|
29
|
29
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
30
|
30
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
31
|
31
513032903 Boyau forme *hose-formed |
513032903 |
US $29.53 |
||
|
32
|
32
415018200 Pince *clip |
415018200 |
US $3.83 |
||
|
33
|
33
390406500 Rivet-pop 3/16 *rivet-pop 3/16 |
390406500 |
US $58.50 |
||
|
34
|
34
403901806 Pompe a essence*pump-fuel |
403901806 |
US $141.70 |
||
|
35
|
35
210361280 Screw-forming hex.hd.fl.din.7500 |
210361280 |
US $9.70 |
||
|
36
|
36
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
37
|
37
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
38
|
38
513032986
Boyau forme *tube-formed
|
513032986 |
— | ||
|
39
|
39
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
40
|
40
414420700 Bride a ressort*clamp-spring |
414420700 |
US $9.50 |
||
|
41
|
41
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
42
|
42
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
