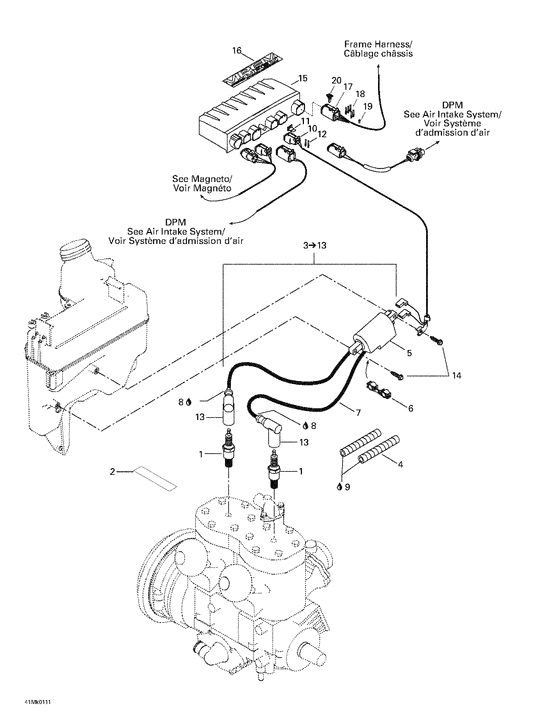

03- ignition Diagram Bombardier MX Z
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
512059379
Cable cap.455mm*cable-cap assy 455mm
With Item 13; |
512059379 |
— | ||
| replacement | |||||
|
|
512059486 Cable assemble *cable ass yWith Item 13; |
512059486 |
US $61.15 |
||
|
|
512059387
Module calibre *module-calib.
|
512059387 |
— | ||
|
1
|
1
414961100
Bougie br9es *plug-spark br9es
|
414961100 |
— | ||
| replacement | |||||
|
1
|
1
219703120 SPARK PLUG, NGK BR9ES |
219703120 |
US $21.84 |
||
|
2
|
2
516000986
Decalque bougie*decal-spark plug
|
516000986 |
— | ||
|
3
|
3
512059377
Bobine allumage*coil-ignition
Includes 3 - 13.; |
512059377 |
— | ||
| replacements | |||||
|
3
|
3
512059374
Ens.bobine all.*kit-coil ignition
Includes 3 - 13.; |
512059374 |
— | ||
|
3
|
3
512059696 Cable ass.375mm*cable-assy 375mmIncludes 3 - 13.; |
512059696 |
US $80.55 |
||
|
3
|
3
512059486 Cable assemble *cable ass yIncludes 3 - 13.; |
512059486 |
US $61.15 |
||
|
4
|
4
512059376
Gaine 345mm *tubing-345mm
|
512059376 |
— | ||
|
5
|
5
512059363
Bobine allumage*coil-ignition
|
512059363 |
— | ||
|
6
|
6
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
7
|
7
512059378
Cable cap.380mm*cable-cap assy 380mm
With Item 13; |
512059378 |
— | ||
| replacement | |||||
|
7
|
7
512059696 Cable ass.375mm*cable-assy 375mmWith Item 13; |
512059696 |
US $80.55 |
||
|
8
|
8
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
9
|
9
293800021 Loctite 495 *loctite-495 |
293800021 |
US $16.29 |
||
|
10
|
10
409207300 Logement femel.*housing-female |
409207300 |
US $10.85 |
||
|
11
|
11
409207100 Verrou femelle *lock-female |
409207100 |
US $3.11 |
||
|
12
|
12
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
13
|
13
278000237
Capuchon bougie*cap-spark plug
|
278000237 |
— | ||
|
14
|
14
250000005
Screw-tapp.hex.type-ab
|
250000005 |
— | ||
|
15
|
15
512059431
Module calibre *module-calib.
|
512059431 |
— | ||
|
16
|
16
516000245
Decal.boit.elec*decal.-elect.box
|
516000245 |
— | ||
|
17
|
17
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
18
|
18
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
19
|
19
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
20
|
20
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
