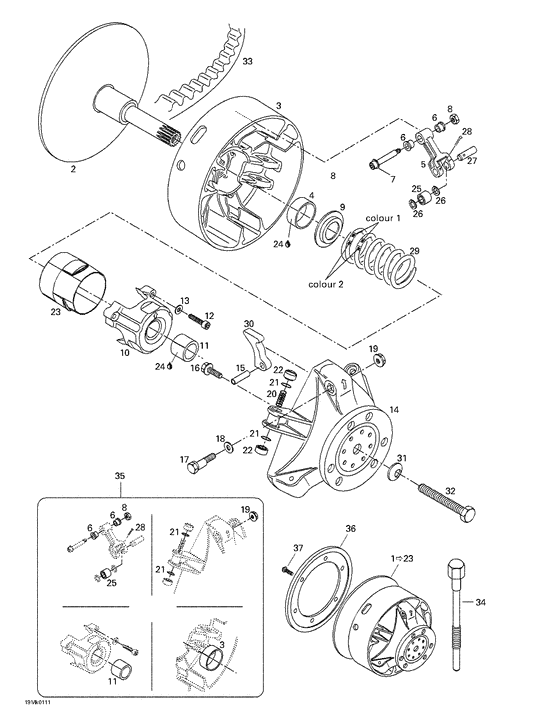

05- drive pulley Diagram Bombardier MX Z
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
417222366
Poulie motrice *pulley-drive
Includes 1 - 23.; |
417222366 |
— | ||
|
2
|
2
417222272
Flasque fixe as*flange-fixe ass
|
417222272 |
— | ||
|
3
|
3
417222027
Flasque coul.as*flange-slid.ass
Includes 3 - 4.; |
417222027 |
— | ||
|
4
|
4
417004201 Douille *bushing |
417004201 |
US $29.29 |
||
|
5
|
5
417222383 Levier ass. *lever-assyIncludes 5 - 6.; |
417222383 |
US $99.47 |
||
|
6
|
6
417004305 Douille *bushing |
417004305 |
US $10.71 |
||
|
7
|
7
417222028 Vis ass. *srew-ass. |
417222028 |
US $51.87 |
||
|
8
|
8
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
9
|
9
417222044
Siege ressort *seat-spring
|
417222044 |
— | ||
|
10
|
10
417222304
Couv.ressort as*cover-spring assy
Includes 10 - 11.; |
417222304 |
— | ||
|
11
|
11
417004501 Douille *bushing |
417004501 |
US $22.39 |
||
|
12
|
12
250000038 Screw-socket hd.m6 x 40 |
250000038 |
US $7 |
||
|
13
|
13
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
14
|
14
417222081 Cuvette regul.a*govern.cup assy. |
417222081 |
US $463.05 |
||
|
15
|
15
732804009
Pin-rolled din.1481 m8 x 24
|
732804009 |
— | ||
|
16
|
16
210361890 Screw-forming hex.hd.black oxide |
210361890 |
US $41.30 |
||
|
17
|
17
417005500
Vis calibration*screw-calib.
|
417005500 |
— | ||
|
18
|
18
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
19
|
19
233061414 Nut-flange hexagonal din.6927 |
233061414 |
US $21.40 |
||
|
20
|
20
417005700 Ressort *spring |
417005700 |
US $5.25 |
||
|
21
|
21
732401030 Joint torique *o-ring |
732401030 |
US $3.20 |
||
|
22
|
22
417222362
Glissiere *shoe-slider
|
417222362 |
— | ||
| replacement | |||||
|
22
|
22
417223021 Glissiere *shoe-slider |
417223021 |
from US $7.96 |
||
|
23
|
23
417222176
Protecteur *guard
|
417222176 |
— | ||
|
24
|
24
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
25
|
25
417003900
Rouleau ass. *roller-ass.
|
417003900 |
— | ||
| replacement | |||||
|
25
|
25
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
26
|
26
417004302 Rondelle butee *washer-stopper |
417004302 |
US $18.72 |
||
|
27
|
27
417004308 Goupille *pin |
417004308 |
US $45.81 |
||
|
28
|
28
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
29
|
29
415015300 Ressort *spring |
415015300 |
US $47.75 |
||
|
30
|
30
417222381
Rampe 300 *ramp-300
|
417222381 |
— | ||
|
31
|
31
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
32
|
32
417120000 Boulon *bolt-pulley drive |
417120000 |
US $72.30 |
||
|
33
|
33
417300127 Courroie *belt-drive |
417300127 |
US $170.05 |
||
| replacement | |||||
|
33
|
33
417300585 Courroie *belt-drive |
417300585 |
US $175.92 |
||
|
34
|
34
529022400 Extrac.poulie *puller-drive |
529022400 |
US $96.87 |
||
|
35
|
35
417006100 Ens.rep.emb. *kit-clutch rep |
417006100 |
US $152.95 |
||
|
36
|
36
417222079
New Genuine Part
|
417222079 |
— | ||
|
37
|
37
236281684 Screw-forming bn.hd.torx |
236281684 |
US $53.20 |
||
