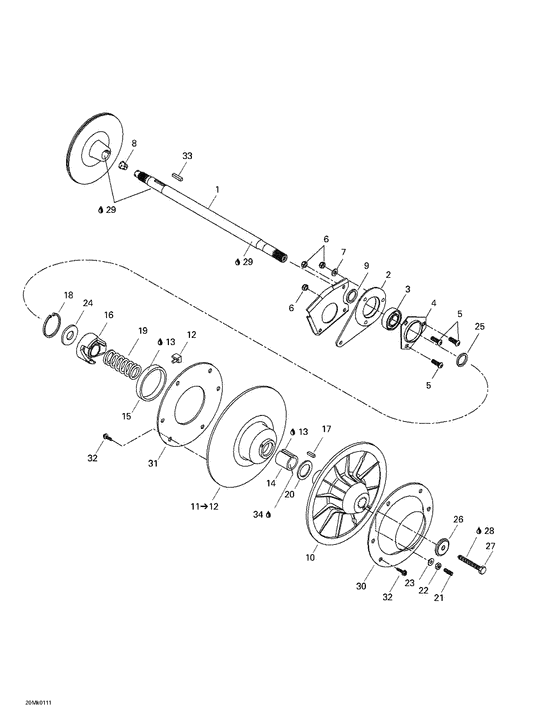

05- driven pulley Diagram Bombardier MX Z
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
501026300 Arbre renvoi *shaft-counter |
501026300 |
US $568.11 |
||
|
2
|
2
080044200
Entretoise *spacer
|
080044200 |
— | ||
|
3
|
3
504152007
Roulement bille*ball bearing
|
504152007 |
— | ||
| replacement | |||||
|
3
|
3
504152535
Roulement bille*ball bearing
|
504152535 |
— | ||
|
4
|
4
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
5
|
5
205482546 Screw-socket bn.hd.iso.7380 |
205482546 |
US $10.65 |
||
|
6
|
6
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
7
|
7
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
8
|
8
414784800 Bouchon liege *cork |
414784800 |
US $3.01 |
||
|
9
|
9
504149100 Entretoise *spacer |
504149100 |
US $11.17 |
||
|
10
|
10
417126477
Flasque fixe us*flange-fix.mach
|
417126477 |
— | ||
|
11
|
11
417126486
Flasque coul.as*flange-slid.as
Includes 11 - 12.; |
417126486 |
— | ||
|
12
|
12
414918000 Glissiere came *shoe-cam slid. |
414918000 |
US $50.70 |
||
|
13
|
13
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
14
|
14
415011200 Douille *bushing |
415011200 |
US $40.09 |
||
|
15
|
15
414876600 Coussinet garl.*bushing-garlock |
414876600 |
US $41.09 |
||
|
16
|
16
417126380
Came usine *cam-mach.
|
417126380 |
— | ||
|
17
|
17
414820800 Clavette *key |
414820800 |
US $35.45 |
||
|
18
|
18
371903100 Circlip *circlip |
371903100 |
US $51.35 |
||
|
19
|
19
415092800
Ressort *spring
|
415092800 |
— | ||
|
20
|
20
504141900 Rondelle appuie*washer-thrust |
504141900 |
US $8.13 |
||
|
21
|
21
206263044 Screw-set socket din.913 |
206263044 |
US $22.10 |
||
|
22
|
22
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
23
|
23
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
24
|
24
504141800
Rondelle *washer
|
504141800 |
— | ||
|
25
|
25
504149100 Entretoise *spacer |
504149100 |
US $11.17 |
||
|
26
|
26
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
27
|
27
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
28
|
28
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
29
|
29
293800023
Loctite 767 lubrifiant antigrippage, 454 gr.
|
293800023 |
— | ||
|
30
|
30
504142000 Coupole *cup |
504142000 |
US $45.85 |
||
|
31
|
31
504142100
Cerceau *ring
|
504142100 |
— | ||
|
32
|
32
210251180 Screw-forming hex.hd.fl.gm6174m |
210251180 |
US $21.60 |
||
|
33
|
33
507021300 Clavette *key |
507021300 |
US $13.45 |
||
|
34
|
34
413701000
Loctite antigrippage 767, 12 oz
|
413701000 |
— | ||
