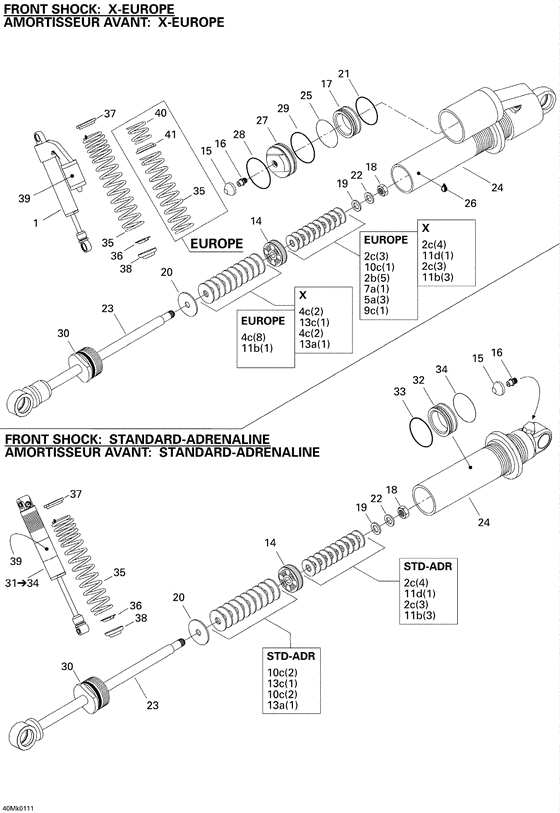

07- front take apart shocks Diagram Bombardier MX Z
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
414888307
Piston (2 x 0.3-6) (c36)
|
414888307 |
— | ||
|
|
505070601
Amortisseur av.*shock-front
|
505070601 |
— | ||
|
|
505070642
Amortisseur av.*shock-front lh
X.; |
505070642 |
— | ||
|
|
505070181
Ressort peint *spring-paint
X. Adrenaline. Europe.; |
505070181 |
— | ||
|
|
505070600
Amortisseur av.*shock-front
|
505070600 |
— | ||
|
|
505070575
Ressort peint *spring-paint
Europe.; |
505070575 |
— | ||
|
|
414888305
Piston comp. *piston-comp.
|
414888305 |
— | ||
|
|
414888306
Piston (2 x 0.3-4) (c36)
|
414888306 |
— | ||
|
1
|
1
505070641
Amortisseur av.*shock-front rh
X.; |
505070641 |
— | ||
|
2A
|
2A
415039100
Lame soupape *leaf-valve
|
415039100 |
— | ||
|
2B
|
2B
414888318
Lame soupape *leaf-valve
|
414888318 |
— | ||
|
2C
|
2C
414888319
Lame soupape *leaf-valve
|
414888319 |
— | ||
|
3A
|
3A
414888320
New Genuine Part
|
414888320 |
— | ||
|
3B
|
3B
414888321 New Genuine Part |
414888321 |
US $1.96 |
||
|
4A
|
4A
415039000
Lame soupape *leaf-valve
|
415039000 |
— | ||
|
4B
|
4B
414888322
New Genuine Part
|
414888322 |
— | ||
|
4C
|
4C
414888323
Lame soupape *leaf-valve
|
414888323 |
— | ||
|
6A
|
6A
414888324 Lame soupape *leaf-valve |
414888324 |
US $1.96 |
||
|
6B
|
6B
414888325
New Genuine Part
|
414888325 |
— | ||
|
7A
|
7A
414888340
New Genuine Part
|
414888340 |
— | ||
|
8A
|
8A
414888326
Lame soupape *leaf-valve
|
414888326 |
— | ||
|
8B
|
8B
414888327
Lame soupape *leaf-valve
|
414888327 |
— | ||
|
8C
|
8C
414888328
New Genuine Part
|
414888328 |
— | ||
|
9B
|
9B
414888330
Lame soupape *leaf-valve
|
414888330 |
— | ||
|
9A
|
9A
414888329 Lame soupape *leaf-valve |
414888329 |
US $5.83 |
||
|
10A
|
10A
414888331
Lame soupape *leaf-valve
|
414888331 |
— | ||
|
10B
|
10B
414888332
New Genuine Part
|
414888332 |
— | ||
|
10C
|
10C
414888333 New Genuine Part |
414888333 |
US $1.96 |
||
|
10D
|
10D
415083900
Feuille refl. *sheet-reflect.
|
415083900 |
— | ||
|
11A
|
11A
414888334
New Genuine Part
|
414888334 |
— | ||
|
11B
|
11B
414888335
Lame soupape *leaf-valve
|
414888335 |
— | ||
|
11C
|
11C
414888336
New Genuine Part
|
414888336 |
— | ||
|
11D
|
11D
414888337
Lame soupape *leaf-valve
|
414888337 |
— | ||
|
12A
|
12A
414888331
Lame soupape *leaf-valve
|
414888331 |
— | ||
|
12B
|
12B
414888334
New Genuine Part
|
414888334 |
— | ||
|
12C
|
12C
414888333 New Genuine Part |
414888333 |
US $1.96 |
||
|
12D
|
12D
415038900
Lame soupape *leaf-valve
|
415038900 |
— | ||
|
13A
|
13A
414888338
Lame soupape *leaf-valve
|
414888338 |
— | ||
|
13B
|
13B
414888339
New Genuine Part
|
414888339 |
— | ||
|
13C
|
13C
415038800
Lame soupape *leaf-valve
|
415038800 |
— | ||
|
13D
|
13D
415093824
Lame soupape *leaf-valve
|
415093824 |
— | ||
| replacement | |||||
|
13D
|
13D
415038800
Lame soupape *leaf-valve
|
415038800 |
— | ||
|
14
|
14
414888304
Piston (c36)
|
414888304 |
— | ||
|
15
|
15
503189307
Soupape air *valve-air
Standard. .; |
503189307 |
— | ||
|
16
|
16
414888314 Soupape air *valve-air+ring(X-EUROPE) X. Standard..; |
414888314 |
US $77.42 |
||
|
17
|
17
415093812
Piston libre *piston-free
X.; |
415093812 |
— | ||
|
21
|
21
415093807 Joint torique *o-ringX. Europe.; |
415093807 |
US $30.57 |
||
|
25
|
25
415093806 Bague *ring-stopStandard. .; |
415093806 |
US $14.67 |
||
|
26
|
26
293600035 Huile amortis. *oil-shock |
293600035 |
US $89.73 |
||
|
27
|
27
415093808
Guide *guide
X. Europe.; |
415093808 |
— | ||
|
28
|
28
415093805 Bague *ring-stopX. Europe.; |
415093805 |
US $17.12 |
||
|
29
|
29
415093804 Joint torique *o-ringX. Europe.; |
415093804 |
US $4.17 |
||
|
30
|
30
415093819
Capuchon etanc.*cap-sealing
Standard. .; |
415093819 |
— | ||
|
31
|
31
505070512
Amort. avant *shock-front
Includes 31 - 34. Adrenaline. Europe.; |
505070512 |
— | ||
|
32
|
32
503189309
Piston libre *piston-free
Standard. Adrenaline.; |
503189309 |
— | ||
|
34
|
34
414888312 Joint torique *o-ringStandard. Adrenaline.; |
414888312 |
US $79.50 |
||
|
35
|
35
505070692
Ressort peint *spring-paint
X.; |
505070692 |
— | ||
|
36
|
36
503187500 Guide ressort *guide-spring |
503187500 |
US $9.84 |
||
|
37
|
37
503189308 Bague *ring-pistonAdrenaline. Europe.; |
503189308 |
US $73.41 |
||
|
37
|
37
503140600
Butee ressort *stopper-spring
Standard. .; |
503140600 |
— | ||
| replacement | |||||
|
37
|
37
503191611
Butee ressort *stopper-spring
Standard. .; |
503191611 |
— | ||
|
38
|
38
503141600
Capuchon *cap
X. Europe.; |
503141600 |
— | ||
|
39
|
39
516000183
Decal.amort. *decal-shock
Standard. .; |
516000183 |
— | ||
|
40
|
40
505070576
Ressort peint *spring-paint
Europe.; |
505070576 |
— | ||
|
41
|
41
503182200
Entretoise *spacer
Europe.; |
503182200 |
— | ||
