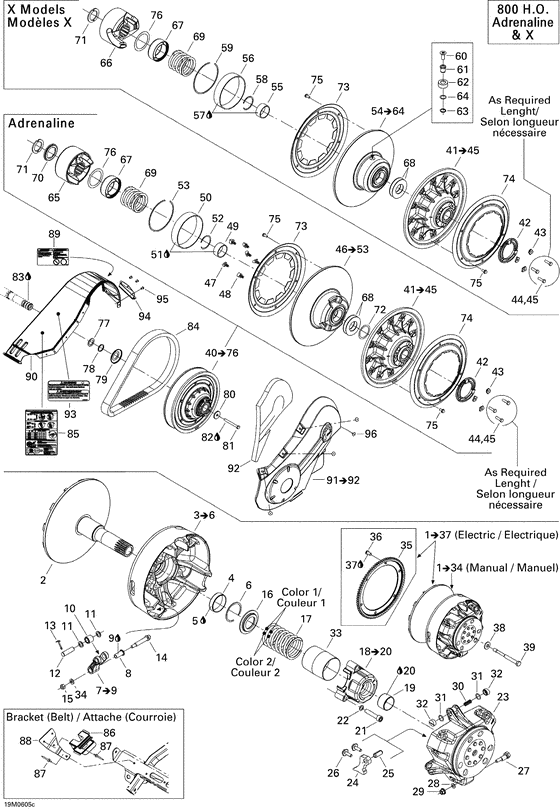

05- pulley system 800 h.o. Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
417222167
Flasque fixe as*flange-fixe ass.
|
417222167 |
— | ||
| replacement | |||||
|
2
|
2
417222970 Flasque fixe as*flange-fixe ass. |
417222970 |
US $426.33 |
||
|
3
|
3
417222171
Flasque coul.as*flange-slid.assy
Includes 3 to 6; |
417222171 |
— | ||
| replacement | |||||
|
3
|
3
415129293 Flasque coul.as*flange-slid kitIncludes 3 to 6; |
415129293 |
US $432.45 |
||
|
4
|
4
417222758 Douille *bushing |
417222758 |
US $24.82 |
||
|
5
|
5
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
6
|
6
293370037 Anneau retenue *circlip |
293370037 |
US $3.64 |
||
|
7
|
7
417222671 Levier ass. *lever-assyIncludes 7 to 9; |
417222671 |
US $54.71 |
||
|
8
|
8
417222633
Douille
|
417222633 |
— | ||
|
9
|
9
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
10
|
10
417003900
Rouleau ass. *roller-ass.
|
417003900 |
— | ||
| replacement | |||||
|
10
|
10
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
11
|
11
417004302 Rondelle butee *washer-stopper |
417004302 |
US $18.72 |
||
|
12
|
12
417222594 Goupille *pin |
417222594 |
US $17.07 |
||
|
13
|
13
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
14
|
14
417222028 Vis ass. *srew-ass. |
417222028 |
US $51.87 |
||
|
15
|
15
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
16
|
16
417222312 Siege ressort *seat-spring |
417222312 |
US $9.50 |
||
|
17
|
17
415015400 Ressort *spring |
415015400 |
US $47.75 |
||
|
18
|
18
417007500 Couv.ressort as*cover-spring assy.Includes 18 to 20; |
417007500 |
US $44.83 |
||
|
19
|
19
417009204 Douille *bushing |
417009204 |
US $19.52 |
||
|
20
|
20
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
21
|
21
205084044 Screw-socket hd.din.912 |
205084044 |
US $18.45 |
||
|
22
|
22
250200009 Ribbed lock washer 8mm bn791 |
250200009 |
US $27.20 |
||
|
23
|
23
417222213
Cuvette regul.a*govern.cup assy.
|
417222213 |
— | ||
|
24
|
24
417222546 Rampe 414 *ramp-414 |
417222546 |
US $100.83 |
||
|
25
|
25
250400009
Goupille ress. *pin-rolled
|
250400009 |
— | ||
| replacement | |||||
|
25
|
25
250400050 SPRING PIN M10 |
250400050 |
US $11.88 |
||
|
26
|
26
250000059 Screw-hex.flange m6 x 18 |
250000059 |
US $3.89 |
||
|
27
|
27
417005500
Vis calibration*screw-calib.
|
417005500 |
— | ||
|
28
|
28
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
29
|
29
233061414 Nut-flange hexagonal din.6927 |
233061414 |
US $21.40 |
||
|
30
|
30
417005700 Ressort *spring |
417005700 |
US $5.25 |
||
|
31
|
31
732401030 Joint torique *o-ring |
732401030 |
US $3.20 |
||
|
32
|
32
417222362
Glissiere *shoe-slider
|
417222362 |
— | ||
| replacement | |||||
|
32
|
32
417223021 Glissiere *shoe-slider |
417223021 |
from US $7.96 |
||
|
33
|
33
417009205 Protecteur *guard |
417009205 |
US $19.31 |
||
|
34
|
34
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
35
|
35
417222829
Courronne *ring gear
800 H.O. Electric; |
417222829 |
— | ||
| replacement | |||||
|
35
|
35
417223042 Couronne *ring gear800 H.O. Electric; |
417223042 |
US $197.95 |
||
|
36
|
36
236281684 Screw-forming bn.hd.torx800 H.O. Electric; |
236281684 |
US $53.20 |
||
|
37
|
37
293800005 Loctite 271 *loctite-271800 H.O. Electric; |
293800005 |
US $31.18 |
||
|
38
|
38
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
39
|
39
417120000 Boulon *bolt-pulley drive |
417120000 |
US $72.30 |
||
|
41
|
41
417126807 Flasque fixe as*flange-fix.assyIncludes 41 to 45; |
417126807 |
US $320.25 |
||
|
42
|
42
415005800
Bague ajustem. *ring-adjust.
|
415005800 |
— | ||
|
43
|
43
415005900 Cale de reglage*shim-adjust. |
415005900 |
US $4.05 |
||
|
44
|
44
207162544 Screw-hex.cap din.933 |
207162544 |
US $14.60 |
||
|
45
|
45
207162244 Screw-hex.cap din.933 |
207162244 |
US $3.83 |
||
|
46
|
46
417126909 Flasque coul.as*flange-slid.asAdrenaline, Includes 46 to 53; |
417126909 |
US $350.85 |
||
|
47
|
47
417126373
Gliss.came arr.*shoe-cam slide rear
Adrenaline; |
417126373 |
— | ||
|
48
|
48
417126374 Gliss. came av.*shoe-cam slide frontAdrenaline; |
417126374 |
US $4.08 |
||
|
49
|
49
417126901 Coussinet *coussinetAdrenaline; |
417126901 |
US $12.10 |
||
|
50
|
50
417126902 Coussinet *coussinetAdrenaline; |
417126902 |
US $45.56 |
||
|
51
|
51
413408300 Loctite bl-max *loctite bl.maxAdrenaline; |
413408300 |
US $31.18 |
||
|
52
|
52
371911200 Anneau retenue *circlipAdrenaline; |
371911200 |
US $21.25 |
||
|
53
|
53
417126878 Circlip *circlipAdrenaline; |
417126878 |
US $13.21 |
||
|
54
|
54
417127014
Flasque coul.as*flange-slid.as
X, Includes 54 to 64; |
417127014 |
— | ||
| replacement | |||||
|
54
|
54
417127040 Flasque coul.as*flange-slid.asX, Includes 54 to 64; |
417127040 |
US $350.85 |
||
|
55
|
55
417126901 Coussinet *coussinetX; |
417126901 |
US $12.10 |
||
|
56
|
56
417126902 Coussinet *coussinetX; |
417126902 |
US $45.56 |
||
|
57
|
57
413408300 Loctite bl-max *loctite bl.maxX; |
413408300 |
US $31.18 |
||
|
58
|
58
371911200 Anneau retenue *circlipX; |
371911200 |
US $21.25 |
||
|
59
|
59
417126878 Circlip *circlipX; |
417126878 |
US $13.21 |
||
|
60
|
60
235382046 Screw-torx ctsk.fl.hd.s.grip m8 x 20X; |
235382046 |
US $1.79 |
||
|
61
|
61
417127015 Pivot *studX; |
417127015 |
US $16.29 |
||
|
62
|
62
417126892 Rouleau *rollerX; |
417126892 |
US $24.40 |
||
|
63
|
63
417126823 Circlip *circlipX; |
417126823 |
US $21.27 |
||
|
64
|
64
417126797 Rondelle *washerX; |
417126797 |
US $6.07 |
||
|
65
|
65
417126721 Came ass. *cam-ass.Adrenaline; |
417126721 |
US $218.25 |
||
|
66
|
66
417126990
Came ass. *cam-ass.
X; |
417126990 |
— | ||
|
67
|
67
417126381 Protecteur *guard |
417126381 |
US $8.13 |
||
|
68
|
68
504099600 Rondelle butee *washer-stopper |
504099600 |
US $6.07 |
||
|
69
|
69
417126688 Ressort *spring |
417126688 |
US $39.73 |
||
|
70
|
70
417126733 Entretoise *spacerAdrenaline; |
417126733 |
US $13.21 |
||
|
71
|
71
417126734 Demi-cle *half-key |
417126734 |
US $8.13 |
||
|
72
|
72
504112300 Cale epaisseur *shimAdrenaline; |
504112300 |
US $70.90 |
||
|
73
|
73
417126698 Couvercle *cover |
417126698 |
US $11.17 |
||
|
74
|
74
504151831 Couv.aerodynam.*cover-aerodyn. |
504151831 |
US $37.71 |
||
|
75
|
75
210251180 Screw-forming hex.hd.fl.gm6174m |
210251180 |
US $21.60 |
||
|
76
|
76
417126322 Butee pivotante*swivel-abutment |
417126322 |
US $8.13 |
||
|
77
|
77
417300252 Entretoise *spacer |
417300252 |
US $5.07 |
||
|
77
|
77
417300265 Entretoise *spacer |
417300265 |
US $14.20 |
||
|
78
|
78
504112000 Cale epaisseur *shim |
504112000 |
US $30.35 |
||
|
79
|
79
417300238 Protecteur *protector |
417300238 |
US $8.13 |
||
|
80
|
80
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
81
|
81
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
82
|
82
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
83
|
83
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
84
|
84
417300166
Courroie *belt-drive
|
417300166 |
— | ||
| replacement | |||||
|
84
|
84
417300383 Courroie *drive belt |
417300383 |
US $198.93 |
||
|
85
|
85
516002616 Decal.ajust. *decal-ajust. |
516002616 |
US $11.17 |
||
|
86
|
86
517281905 Attache *bracket |
517281905 |
US $15.27 |
||
|
87
|
87
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
88
|
88
417300282
Support *bracket
|
417300282 |
— | ||
|
89
|
89
516002674 Etiquette secur*security-label |
516002674 |
US $0.02 |
||
|
90
|
90
417300213 Garde courroie *belt guard |
417300213 |
US $84.61 |
||
|
91
|
91
417300301
Prot.lateral *side protector assy
Includes 91 to 92; |
417300301 |
— | ||
|
92
|
92
417300246 Mousse *foam |
417300246 |
US $8.13 |
||
|
93
|
93
516002670 Etiquette secur*security-label |
516002670 |
US $0.02 |
||
|
94
|
94
417300216 Attache gard.co*belt guard brkt |
417300216 |
US $8.13 |
||
|
95
|
95
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
96
|
96
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
