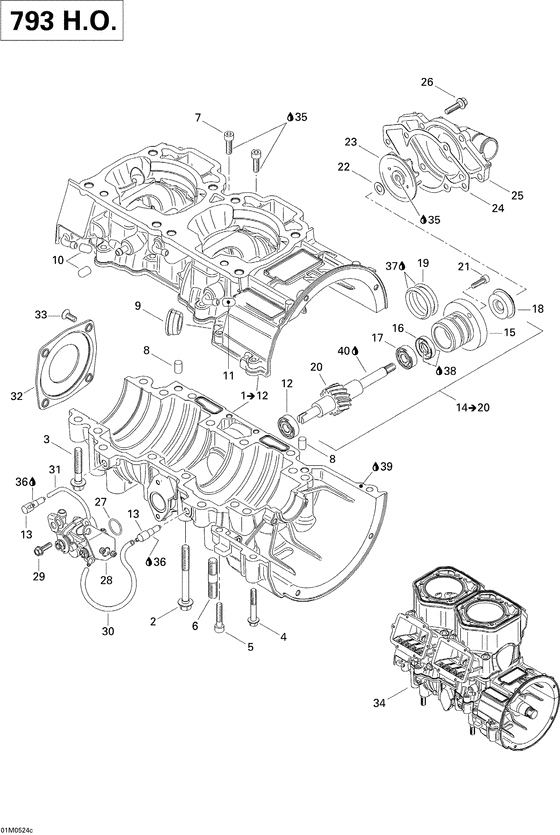

01- crankcase, water pump and oil pump (793HO) Diagram Bombardier MX Z
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420889686 Carter moteur *crankcase-assyIncludes 1 to 12; |
420889686 |
US $1,615.68 |
||
|
2
|
2
420640836 Screw-hex collar m8x75 sw 11 |
420640836 |
US $11.17 |
||
|
3
|
3
420640431
Screw-hex collar m8x45 sw 11
|
420640431 |
— | ||
|
4
|
4
420640311 Screw-hex collar m6x45 |
420640311 |
US $20.25 |
||
|
5
|
5
205063044 Screw-socket hd.din.912 |
205063044 |
US $21.90 |
||
|
6
|
6
420641834 Stud-m10 x 29/17 |
420641834 |
US $9.13 |
||
|
7
|
7
420840401 Screw-allen m6x22 din.912 |
420840401 |
US $19.20 |
||
|
8
|
8
420632010 Goupille *pin-center |
420632010 |
US $5.17 |
||
|
9
|
9
420860965 Passe-cable *grommet-cable |
420860965 |
US $13.21 |
||
|
10
|
10
420960770 Bouchon *cap |
420960770 |
US $5.32 |
||
|
11
|
11
420960777 Bouchon *cap |
420960777 |
US $2.01 |
||
|
12
|
12
420232100 Roulement bille*ball bearing |
420232100 |
US $21.42 |
||
|
13
|
13
420956510 Soupape retenue*valve-check |
420956510 |
from US $32.61 |
||
|
14
|
14
420837421 Pompe eau/huile*waterpump/oilpumpIncludes 14 to 20; |
420837421 |
US $314.13 |
||
|
16
|
16
420230196
Anneau etanche *seal-oil
|
420230196 |
— | ||
|
17
|
17
420232100 Roulement bille*ball bearing |
420232100 |
US $21.42 |
||
|
18
|
18
420650370 Joint tournant *rotary seal |
420650370 |
US $46.37 |
||
| replacement | |||||
|
18
|
18
420650371 ROTARY SEAL |
420650371 |
US $52.63 |
||
|
19
|
19
420950890 Joint torique *o ring |
420950890 |
US $5.71 |
||
|
21
|
21
420840511 Screw-allen m5 x 16 |
420840511 |
US $1.79 |
||
|
22
|
22
420227945 Rondelle *washer |
420227945 |
US $5.17 |
||
|
23
|
23
420222505 Turbine a eau *impeller-water |
420222505 |
US $20.45 |
||
|
24
|
24
420931810 Joint *gasket |
420931810 |
US $13.21 |
||
|
25
|
25
420922630 Log.pompe eau *hous-waterpump |
420922630 |
US $57.63 |
||
|
26
|
26
420240031 Screw-hex.m6 x 25 |
420240031 |
US $1.79 |
||
|
27
|
27
293300041 Joint torique *o-ring |
293300041 |
US $104.70 |
||
|
28
|
28
420888774 Pompe a huile *pump-oil assy. |
420888774 |
US $367.17 |
||
|
29
|
29
420941925 Screw-tapping m5 x 16 |
420941925 |
US $19.60 |
||
|
30
|
30
414413800 Boyau d huile *hose-oil |
414413800 |
US $15.05 |
||
|
31
|
31
414413800 Boyau d huile *hose-oil |
414413800 |
US $15.05 |
||
|
32
|
32
420812420 Couvercle *cover oil seal |
420812420 |
US $14.25 |
||
|
33
|
33
420941430
Screw-socket din.7991 m6 x 20
|
420941430 |
— | ||
|
34
|
34
420079342
Ens.carter-cyl.*short block 793ho
|
420079342 |
— | ||
| replacement | |||||
|
34
|
34
421000612
Ens.carter-cyl.*short block rebuilt793ho
|
421000612 |
— | ||
|
35
|
35
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
36
|
36
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
37
|
37
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
|
38
|
38
420899271 Graisse *grease |
420899271 |
US $83.84 |
||
|
39
|
39
293800081 Loctite 5910 *loctite-5910 |
293800081 |
US $90.68 |
||
|
40
|
40
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| replacement | |||||
|
40
|
40
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
US $15.64 |
||
