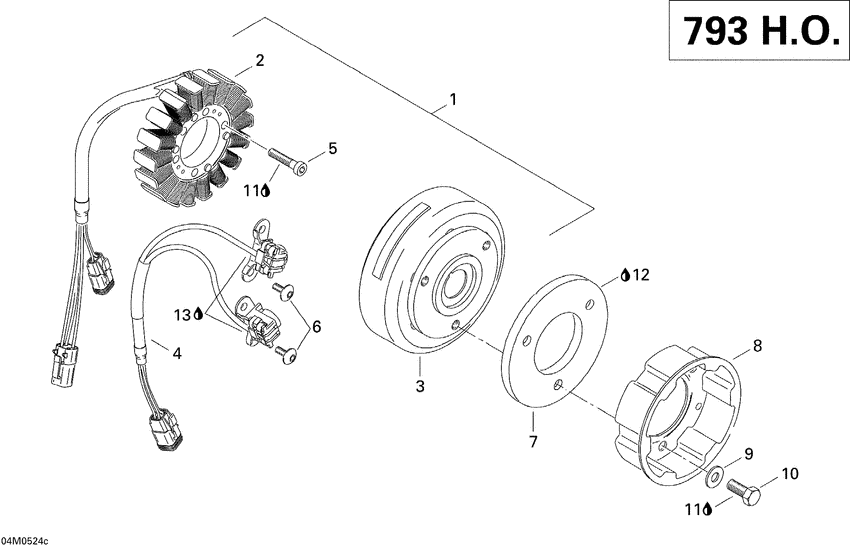

03- magneto 793ho Diagram Bombardier MX Z
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
410922946
Plaque reacteur*plate-stator a
|
410922946 |
— | ||
| replacement | |||||
|
2
|
2
410922993
Plaque reacteu*plate-stator assy
|
410922993 |
— | ||
|
3
|
3
410922947 Volant moteur *flywheel |
410922947 |
US $447.73 |
||
|
4
|
4
410922948 Capteur ass. *pickup-assy. |
410922948 |
US $179.49 |
||
|
5
|
5
205063044 Screw-socket hd.din.912 |
205063044 |
US $21.90 |
||
|
6
|
6
420640321
Screw-taptite
|
420640321 |
— | ||
|
7
|
7
420866756 Contrepoids *flywheel |
420866756 |
US $97.89 |
||
|
8
|
8
420852532 Poulie *pulley |
420852532 |
US $27.34 |
||
| replacement | |||||
|
8
|
8
420852533 Poulie *pulley |
420852533 |
US $27.34 |
||
|
9
|
9
420827405 Rondelle plate *flat washer |
420827405 |
US $6.54 |
||
|
10
|
10
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
11
|
11
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
12
|
12
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
