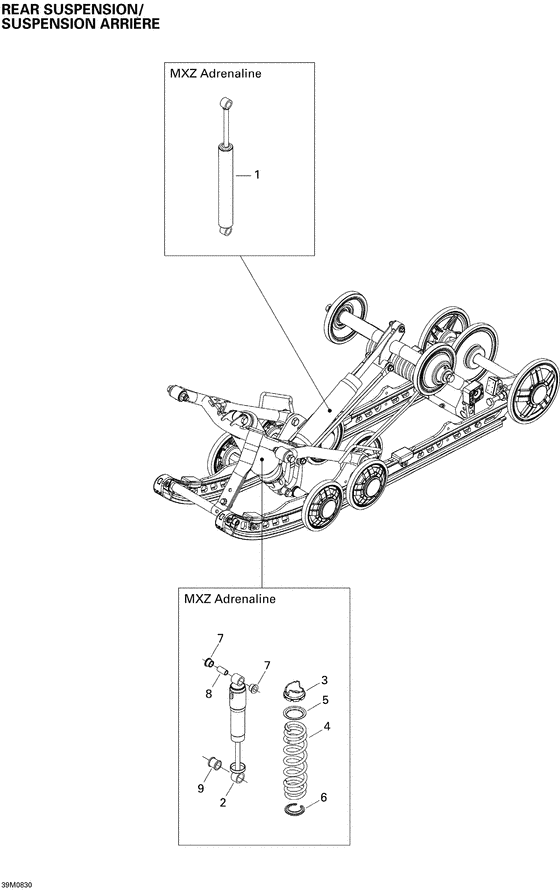

08- rear suspension shocks Diagram Bombardier MX Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503191583
Amort.arriere **shock-rear
|
503191583 |
— | ||
|
2
|
2
503191591 Amort.central *center shock |
503191591 |
US $255.97 |
||
|
3
|
3
505070150
Came 45 degres *cam 45 degres
|
505070150 |
— | ||
| replacement | |||||
|
3
|
3
505073625 ADJUSTEMENT CAM |
505073625 |
US $11.93 |
||
|
4
|
4
503191329 Ressort peint *spring-paint |
503191329 |
US $61.15 |
||
|
5
|
5
503191872 Guide ressort *guide-spring |
503191872 |
from US $2.21 |
||
|
6
|
6
503191535
Butee ressort *stopper-spring
|
503191535 |
— | ||
|
7
|
7
503189117 Coussinet ureth*cushion-ureth. |
503189117 |
US $7.33 |
||
|
8
|
8
503189282 Douille *bushing |
503189282 |
US $4.03 |
||
|
9
|
9
503189271 Coussinet ureth*cushion-ureth. |
503189271 |
US $13.24 |
||
