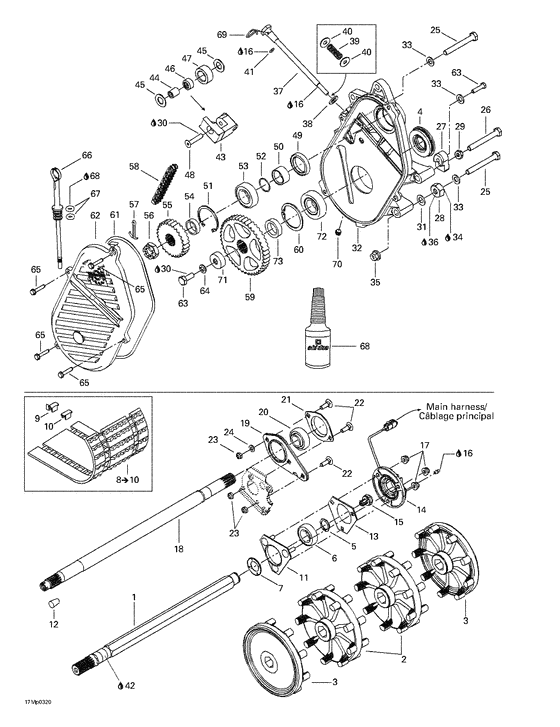

05- drive system Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
501027400 Arbre entr.pein*axle-drive paint |
501027400 |
US $308.01 |
||
|
2
|
2
504152198 Barbotin 10d *sprocket 10th |
504152198 |
US $67.29 |
||
|
3
|
3
504152199 Demi-barbot.10 *half sproc.10 |
504152199 |
US $48.93 |
||
|
4
|
4
504151918 Anneau etanche *oil seal ass y |
504151918 |
US $24.45 |
||
|
5
|
5
371910200 Circlip *circlip |
371910200 |
US $10.65 |
||
|
6
|
6
504152009
Roulement bille*ball bearing
|
504152009 |
— | ||
| replacement | |||||
|
6
|
6
293350060 Roulement bille*ball bearing |
293350060 |
US $50.80 |
||
|
7
|
7
501017400 Prot.roulement *bearing protector |
501017400 |
US $9.13 |
||
|
8
|
8
504152157
Chenille *track 15"x121"x1.00
Includes 8 - 10.; |
504152157 |
— | ||
| replacement | |||||
|
8
|
8
504152484
Chenille 15"x121"x1.00" *track-assy
Includes 8 - 10.; |
504152484 |
— | ||
|
9
|
9
500003400
Agrafe de guide*cleat-guide
|
500003400 |
— | ||
| replacement | |||||
|
9
|
9
504152410
Guide *clip
|
504152410 |
— | ||
|
10
|
10
504151828
Agrafe *cleat
|
504151828 |
— | ||
|
11
|
11
504151860 Logement roul. *housing-bear.weld. |
504151860 |
US $12.19 |
||
|
12
|
12
414784800 Bouchon liege *cork |
414784800 |
US $3.01 |
||
|
13
|
13
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
14
|
14
504152167
Capteur *sensor
|
504152167 |
— | ||
| replacement | |||||
|
14
|
14
504152345 Capteur *sensor |
504152345 |
US $68.29 |
||
|
15
|
15
504152040
Adaptateur magn*adaptor-magnetic
|
504152040 |
— | ||
|
16
|
16
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
17
|
17
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
18
|
18
504152018 Arbre renvoi *shaft-counter |
504152018 |
US $533.41 |
||
|
19
|
19
504151968 Entretoise *spacer |
504151968 |
US $15.27 |
||
|
20
|
20
504152026
Roulement bille*ball bearing
|
504152026 |
— | ||
| replacement | |||||
|
20
|
20
504152535
Roulement bille*ball bearing
|
504152535 |
— | ||
|
21
|
21
501026900
Flasque *flange
|
501026900 |
— | ||
|
22
|
22
207782544 Bolt-carriage din.603 |
207782544 |
US $10.20 |
||
|
23
|
23
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
24
|
24
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
25
|
25
207108044 Screw-hex.cap iso.4017 |
207108044 |
US $7 |
||
|
26
|
26
207006544 Screw-hex.cap iso.4014 |
207006544 |
US $19.15 |
||
|
27
|
27
504152106
Entretoise *spacer
|
504152106 |
— | ||
|
28
|
28
504083800 Entretoise *spacer |
504083800 |
US $9.13 |
||
|
29
|
29
504152237 Entretoise *spacer |
504152237 |
US $9.13 |
||
|
30
|
30
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
31
|
31
504073700 Rondelle *washer |
504073700 |
US $20.25 |
||
|
32
|
32
504152086
Carter chaine u*case-chain mach
|
504152086 |
— | ||
|
33
|
33
503183800 Rondelle *washer |
503183800 |
US $42.30 |
||
|
34
|
34
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
35
|
35
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
36
|
36
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
37
|
37
504151946 Vis de reglage *screw adjusting |
504151946 |
US $116.25 |
||
|
38
|
38
503189148 Rondelle *washer |
503189148 |
US $18.30 |
||
|
39
|
39
504151945 Ressort *spring |
504151945 |
US $7 |
||
|
40
|
40
503125900 Rondelle trempe*washer-hard |
503125900 |
US $38.90 |
||
|
41
|
41
504151954 Joint torique *o-ring |
504151954 |
US $12.85 |
||
|
42
|
42
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
43
|
43
504151940 Tendeur chaine *chain-tens.mach. |
504151940 |
US $45.85 |
||
|
44
|
44
504080200 Entretoise *spacer |
504080200 |
US $11.17 |
||
|
45
|
45
504080300 Rondelle *washer |
504080300 |
US $60.70 |
||
|
46
|
46
405403000 Roul.aiguille *needle bearing |
405403000 |
US $25.45 |
||
|
47
|
47
414531300 Rouleau *roller |
414531300 |
US $54.03 |
||
|
48
|
48
732601144 Screw |
732601144 |
US $1.79 |
||
|
49
|
49
415049300 Joint etanche *oil seal |
415049300 |
US $14.25 |
||
|
50
|
50
507031500 Entretoise *spacer |
507031500 |
US $13.21 |
||
|
51
|
51
371901700 Circlip int. *circlip-int. |
371901700 |
US $58.30 |
||
|
52
|
52
414876700 Joint torique *o-ring |
414876700 |
US $11.06 |
||
|
53
|
53
504152006
Roulement bille*ball bearing
|
504152006 |
— | ||
| replacement | |||||
|
53
|
53
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
US $12.85 |
||
|
54
|
54
504093400 Cale epaisseur *shim |
504093400 |
US $13.21 |
||
|
55
|
55
504091000 Pignon 23d.larg*sprock.-23th l |
504091000 |
US $48.93 |
||
|
56
|
56
250000012 Nut-hex.castle m20 x 1.5 |
250000012 |
US $7 |
||
|
57
|
57
371006300 Goupille fendue*pin-cotter |
371006300 |
US $7.10 |
||
|
58
|
58
504151857 Chaine large *chain-driv.l. |
504151857 |
US $127.45 |
||
|
59
|
59
504148500 Roue dentee 43d*sprocket 43th |
504148500 |
US $146.85 |
||
|
60
|
60
415064300 Circlip int. *circlip-int. |
415064300 |
US $4.98 |
||
|
61
|
61
415046400 Joint torique *o-ring |
415046400 |
US $8.13 |
||
|
62
|
62
504152027
Couvercle moule*cover-casting
|
504152027 |
— | ||
| replacement | |||||
|
62
|
62
504152471 Couvercle moule*cover-casting |
504152471 |
US $183.57 |
||
|
63
|
63
207102544 Screw-hex.cap iso.4017 |
207102544 |
US $17.50 |
||
|
64
|
64
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
65
|
65
210263080 Screw-forming hex.hd.fl.gm6174m |
210263080 |
US $19.60 |
||
|
66
|
66
504151703 Bouchon remp.as*cap-filler assy. |
504151703 |
US $14.25 |
||
|
67
|
67
414969400 Joint torique *o-ring |
414969400 |
US $81.30 |
||
|
68
|
68
413803300
Huile chaine *oil-chain
12 x 355 ml; |
413803300 |
— | ||
|
69
|
69
414575600 Goup.surete *pin-hair |
414575600 |
US $12.85 |
||
|
70
|
70
504151921 Plug 1/8-27 n.p.t. 3/4 taper |
504151921 |
US $5.61 |
||
|
71
|
71
504152104 Capuchon *cap |
504152104 |
US $13.21 |
||
|
72
|
72
504152005 Roulement bille*ball bearing |
504152005 |
US $41.77 |
||
|
73
|
73
504152058
Cale epaisseur *shim
|
504152058 |
— | ||
| replacement | |||||
|
73
|
73
504152649 Cale epaisseur *shim |
504152649 |
US $21.39 |
||
