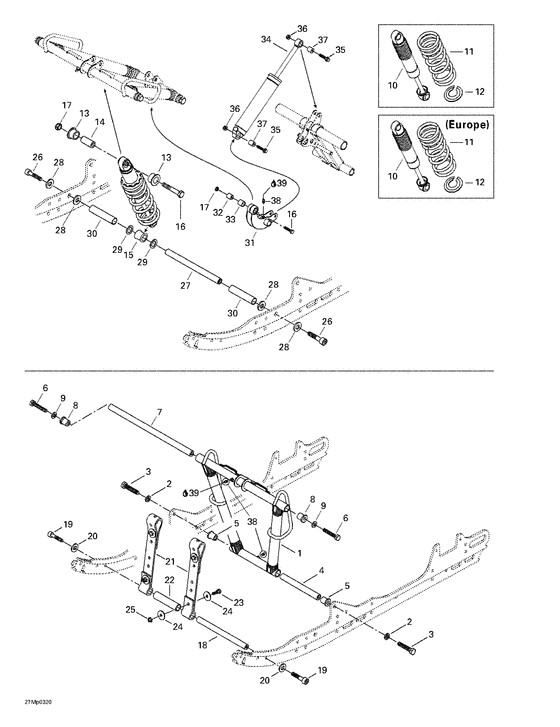

08- front arm Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
503190248
Amort.arr. *rear shock
|
503190248 |
— | ||
|
|
503190247
Amort.central *center shock
|
503190247 |
— | ||
|
|
503190283
Ressort peint *spring-paint
|
503190283 |
— | ||
|
1
|
1
503189292
Bras avant p. *arm-front p.
|
503189292 |
— | ||
| replacement | |||||
|
1
|
1
503191083
Bras avant p. *arm-front p.
|
503191083 |
— | ||
|
2
|
2
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
3
|
3
207226044 Screw-hex.cap iso.4014 s.grip |
207226044 |
US $19.45 |
||
|
4
|
4
503189313 Arbre *shaft |
503189313 |
US $17.12 |
||
|
5
|
5
503189323 Coussinet *bushing |
503189323 |
US $11 |
||
|
6
|
6
207205544 Screw-hex.cap iso.4014 s.grip |
207205544 |
US $19.15 |
||
|
7
|
7
503188938
Arbre *shaft
|
503188938 |
— | ||
| replacement | |||||
|
7
|
7
503190387 Arbre *shaft |
503190387 |
US $36.69 |
||
|
8
|
8
503189324 Coussinet *bushing |
503189324 |
US $14.20 |
||
|
9
|
9
732900049 Rondelle *washer |
732900049 |
US $14.50 |
||
|
10
|
10
503190016
Amort.central *shock-center
|
503190016 |
— | ||
| replacement | |||||
|
10
|
10
503191203 Amort.central *shock-center |
503191203 |
US $440.62 |
||
|
11
|
11
503189659 Ressort peint *spring-paint |
503189659 |
US $61.15 |
||
|
12
|
12
503189912 Butee ressort *stopper-spring |
503189912 |
US $7.33 |
||
|
13
|
13
503189117 Coussinet ureth*cushion-ureth. |
503189117 |
US $9.69 |
||
|
14
|
14
503189282 Douille *bushing |
503189282 |
US $5.61 |
||
|
15
|
15
503189271 Coussinet ureth*cushion-ureth. |
503189271 |
US $13.24 |
||
|
16
|
16
207005044 Screw-hex.cap iso.4014 |
207005044 |
US $38.90 |
||
|
17
|
17
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
18
|
18
503189562 Axe *axle |
503189562 |
US $17.12 |
||
|
19
|
19
205503544 Screw-socket din.912 s.grip |
205503544 |
US $21.80 |
||
|
20
|
20
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
21
|
21
503189362
Courroie arret *strap-stopper
|
503189362 |
— | ||
| replacement | |||||
|
21
|
21
503190782 Courroie arret *stopper strap |
503190782 |
US $19.57 |
||
|
22
|
22
503189265 Entretoise *spacer |
503189265 |
US $4.40 |
||
|
23
|
23
207182544 Screw-hex.cap din.933 |
207182544 |
US $11.70 |
||
|
24
|
24
224081301 Washer-flat |
224081301 |
US $28.50 |
||
|
25
|
25
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
26
|
26
205523544 Screw-socket hd.din.912 s.grip |
205523544 |
US $3.28 |
||
|
27
|
27
503189272 Arbre amort.cen*shaft-shock center |
503189272 |
US $34.65 |
||
|
28
|
28
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
29
|
29
503189273 Rondelle *washer |
503189273 |
US $105.75 |
||
|
30
|
30
503189274
Entretoise *spacer
|
503189274 |
— | ||
|
31
|
31
503189845
Culbuteur peint*rocker-paint
|
503189845 |
— | ||
|
32
|
32
503189388
Axe de culbut. *axle-rocker
|
503189388 |
— | ||
|
33
|
33
503189626 Coussinet *cushion |
503189626 |
US $3.18 |
||
|
34
|
34
503190013
Amort. arr. *shock-rear
|
503190013 |
— | ||
|
35
|
35
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.20 |
||
|
36
|
36
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
37
|
37
414936000 Coussinet *cushion |
414936000 |
US $14.25 |
||
|
38
|
38
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
39
|
39
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
