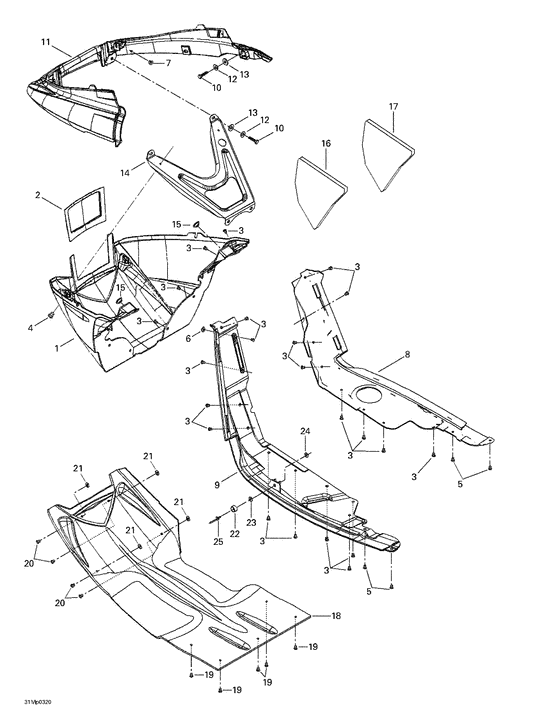

09- bottom pan Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
502006704
Coque avant *pan-bottom front
|
502006704 |
— | ||
|
2
|
2
502006687
Grille coque *grill-pan bottom
|
502006687 |
— | ||
|
3
|
3
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
4
|
4
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
5
|
5
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
6
|
6
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
7
|
7
293100003 Ecrou a souder *nut-weld. |
293100003 |
US $58.56 |
||
|
8
|
8
502006606
Coque droite *pan-bottom rh
|
502006606 |
— | ||
|
9
|
9
502006678
Coque gauche *pan bottom lh
|
502006678 |
— | ||
|
10
|
10
207161444 Screw-hex.cap din.933 |
207161444 |
US $7.50 |
||
|
11
|
11
502006680 Pare-choc *bumper |
502006680 |
US $180.51 |
||
|
12
|
12
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
13
|
13
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
14
|
14
502006682
Support *support
|
502006682 |
— | ||
| replacement | |||||
|
14
|
14
502006772 Support *support |
502006772 |
US $44.93 |
||
|
15
|
15
414916600 Capuchon nylon *plug-nylon |
414916600 |
US $58.70 |
||
|
16
|
16
502006683
Mousse gauche *foam lh
|
502006683 |
— | ||
|
17
|
17
502006684
Mousse droite *foam rh
|
502006684 |
— | ||
|
18
|
18
502006705
Plaque protect.*plate-protect.
|
502006705 |
— | ||
|
19
|
19
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
20
|
20
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
21
|
21
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
22
|
22
415018100 Butee caout. *stopper-rubber |
415018100 |
US $15.65 |
||
|
23
|
23
250200024 Rondelle m5 *rubber washer m5 |
250200024 |
US $29.80 |
||
|
24
|
24
293150007 Rondelle *washer |
293150007 |
US $5.30 |
||
|
25
|
25
390401600 Rivet-pop 1/8 *rivet-pop |
390401600 |
US $375.50 |
||
