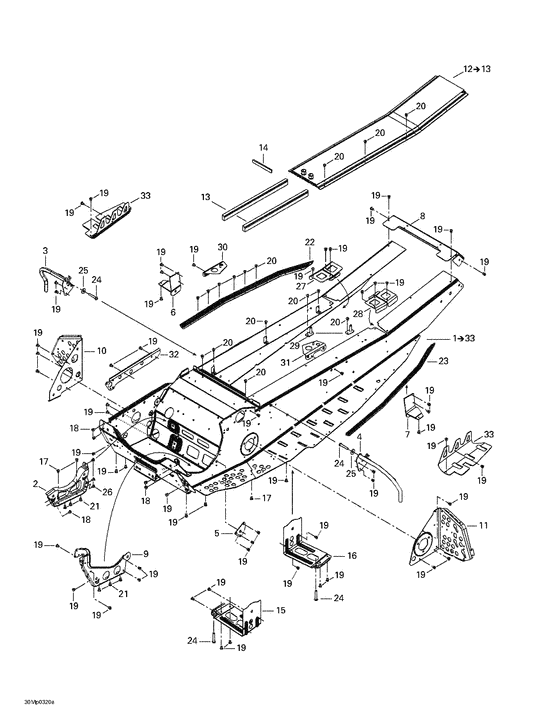

09- frame Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415128560
New Genuine Part
Includes 1 - 33.; |
415128560 |
— | ||
|
2
|
2
518323346 Supp.moteur *engine support |
518323346 |
US $16.76 |
||
|
3
|
3
518322180
Sup.acc.pi.dr.s*supp-toe hold rh weld
|
518322180 |
— | ||
|
4
|
4
518322181
Sup.acc.pi.ga.s*supp-toe hold lh weld
|
518322181 |
— | ||
|
5
|
5
518323507 Renfort ext. *reinf. outer |
518323507 |
US $11.49 |
||
|
6
|
6
518323572
Att.susp.dr. *slide brkt rh
|
518323572 |
— | ||
|
7
|
7
518323573 Att.susp.ga. *slide brkt lh |
518323573 |
US $23.07 |
||
|
8
|
8
518322938
Capuchon arr. *cap-rear
|
518322938 |
— | ||
|
9
|
9
518323241 Renfort int. *inner reinforcement |
518323241 |
US $22.71 |
||
|
10
|
10
518323369
Renf.rep.-pi.dr*reinf.-footrest rh
|
518323369 |
— | ||
| replacement | |||||
|
10
|
10
518323805
Renfort droit *rh.footrest
|
518323805 |
— | ||
|
11
|
11
518323370
Renf.rep.-pi.ga*reinf.-footrest lh
|
518323370 |
— | ||
| replacement | |||||
|
11
|
11
518324527
Renfort gauche *reinforcement
|
518324527 |
— | ||
|
12
|
12
518323550
Radiateur arr.s*front rad. weld.
Includes 12 - 13.; |
518323550 |
— | ||
|
13
|
13
415012300 Protecteur *protector |
415012300 |
US $18.33 |
||
|
14
|
14
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
15
|
15
518323574
Marche-pied dr.*footrest-rh
|
518323574 |
— | ||
| replacement | |||||
|
15
|
15
518322432
Marche-pied dr.*footrest-rh
|
518322432 |
— | ||
|
16
|
16
518323576
Marche-pied ga.*footrest-lh
|
518323576 |
— | ||
| replacement | |||||
|
16
|
16
518322433
Marche-pied ga.*footrest-lh
|
518322433 |
— | ||
|
17
|
17
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
18
|
18
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
19
|
19
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
20
|
20
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
21
|
21
390910300 Rivet henrob *rivet-henrob |
390910300 |
US $17.75 |
||
|
22
|
22
518323551
Rouleau droit *roller-rh
|
518323551 |
— | ||
|
23
|
23
518323552
Rouleau gauche *roller-lh
|
518323552 |
— | ||
| replacement | |||||
|
23
|
23
518324954 Rouleau gauche *roller-lh |
518324954 |
US $98.89 |
||
|
25
|
25
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
26
|
26
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
27
|
27
518322959
Renf.tunnel dr.*reinf-frame rh
|
518322959 |
— | ||
| replacement | |||||
|
27
|
27
518323919
Renf.tunnel dr.*reinf-frame rh
|
518323919 |
— | ||
|
28
|
28
518322960
Renf.tunnel ga.*reinf-frame lh
|
518322960 |
— | ||
| replacement | |||||
|
28
|
28
518324432 Renf.tunnel ga.*reinf-frame lh |
518324432 |
US $10.47 |
||
|
29
|
29
518322791 Att.reserv.so. *brkt-tank weld |
518322791 |
US $11.49 |
||
|
30
|
30
518323336
Renfort tunnel *frame form. reinf.
|
518323336 |
— | ||
|
31
|
31
518323337
Renfort tunnel *frame form. reinf.
|
518323337 |
— | ||
|
32
|
32
518323328 Raidisseur *stiffener |
518323328 |
US $11.49 |
||
