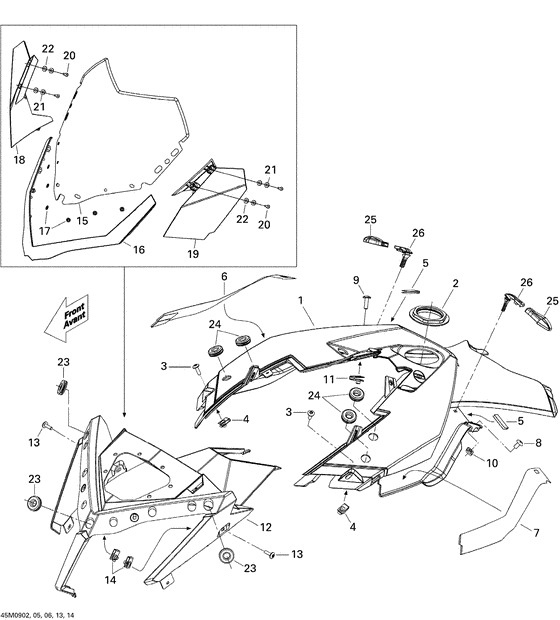

09- windshield and console Diagram Bombardier MX Z
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517303602 Console *console |
517303602 |
US $189.69 |
||
|
2
|
2
517302575 Ecrou console *nut-console |
517302575 |
US $10.17 |
||
|
3
|
3
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
4
|
4
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
5
|
5
517304105 Decalque *console decal |
517304105 |
US $10.17 |
||
|
6
|
6
517304103 Decalque droit *rh.decal |
517304103 |
US $16.29 |
||
|
7
|
7
517304104 Decalque gauche*lh.decal |
517304104 |
US $16.29 |
||
|
8
|
8
250000325 Torx-truss m/s gm6047m nylon patch |
250000325 |
US $8.04 |
||
|
9
|
9
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
10
|
10
250100106 Weld nut thin m6 |
250100106 |
US $2.01 |
||
|
11
|
11
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
12
|
12
517303603
Support ind. *indicator support
|
517303603 |
— | ||
|
13
|
13
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
14
|
14
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
15
|
15
517303608
Pare-brise 370 *windshield 370
|
517303608 |
— | ||
|
16
|
16
517303607 Support *support |
517303607 |
US $38.20 |
||
|
17
|
17
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
18
|
18
517303604 Deflecteur air *deflector-air rh |
517303604 |
US $34.65 |
||
|
19
|
19
517303605 Deflecteur air *deflector-air lh |
517303605 |
US $47.11 |
||
|
20
|
20
250000146
Torx-screw truss head pt.k50x16
|
250000146 |
— | ||
| replacement | |||||
|
20
|
20
250000720 TORX SCREW K50 X 16 |
250000720 |
US $10.90 |
||
|
21
|
21
250200025 Rondelle m5 *washer m5 |
250200025 |
US $9.50 |
||
|
22
|
22
250200024 Rondelle m5 *rubber washer m5 |
250200024 |
US $29.80 |
||
|
23
|
23
517303756 Rondelle *grommet |
517303756 |
US $5.05 |
||
|
24
|
24
517303756 Rondelle *grommet |
517303756 |
US $5.05 |
||
|
25
|
25
517304075 Embout *end piece |
517304075 |
US $5.87 |
||
| replacement | |||||
|
25
|
25
860200239 Embout loquet *latch |
860200239 |
US $18.70 |
||
|
26
|
26
517303981 Loquet panneau *latch-panel |
517303981 |
US $11.27 |
||
