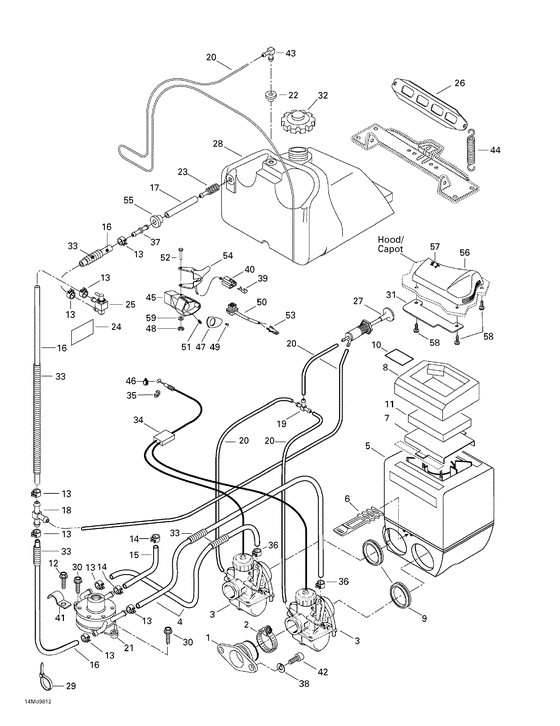

02- fuel system Diagram Bombardier MX Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
570070200
New Genuine Part
|
570070200 |
— | ||
|
2
|
2
415038400
Collet *collar
|
415038400 |
— | ||
| replacement | |||||
|
2
|
2
293650156
Bride serrage *clamp-gemi
|
293650156 |
— | ||
|
3
|
3
403137400
Carburetor
|
403137400 |
— | ||
|
4
|
4
414834000
Conduit *line
|
414834000 |
— | ||
| replacement | |||||
|
4
|
4
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
5
|
5
580638611
New Genuine Part
Includes 5 - 11.; |
580638611 |
— | ||
|
6
|
6
570069700
Loquet *latch
|
570069700 |
— | ||
|
7
|
7
517283900 Grille adm. *grill-intake |
517283900 |
US $9.71 |
||
|
8
|
8
415125500
Mousse ext. *foam-lower
|
415125500 |
— | ||
|
9
|
9
570065100
New Genuine Part
|
570065100 |
— | ||
|
10
|
10
414161500
New Genuine Part
|
414161500 |
— | ||
|
11
|
11
415014800 Filtre a air *filter-air |
415014800 |
US $12.19 |
||
|
12
|
12
732600002
Screw-forming hex.hd.fl.gm6174m
|
732600002 |
— | ||
| replacement | |||||
|
12
|
12
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
13
|
13
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
14
|
14
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
15
|
15
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
16
|
16
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
18
|
18
414222500 Raccord en t *t-fitting |
414222500 |
US $21.90 |
||
|
19
|
19
414222400 Raccord en t *fitting-t |
414222400 |
US $21.90 |
||
|
20
|
20
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
21
|
21
403900900
Pompe a essence*pump-fuel
|
403900900 |
— | ||
|
22
|
22
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
22
|
22
709200285
GROMMET
|
709200285 |
— | ||
|
23
|
23
414865700 Crepine *filter-fuel |
414865700 |
US $12.21 |
||
|
24
|
24
414931500
Etiquette secur*label-security
|
414931500 |
— | ||
|
25
|
25
414935900 Valve essence *valve-shutoff |
414935900 |
US $64.23 |
||
|
26
|
26
517249200
Support res.ess*support-tank fuel
|
517249200 |
— | ||
|
27
|
27
415060500 Amorceur *primer |
415060500 |
US $40.04 |
||
|
28
|
28
572093800
New Genuine Part
|
572093800 |
— | ||
|
29
|
29
748001001
Tie rap 350mm *tie rap 350mm
|
748001001 |
— | ||
| replacement | |||||
|
29
|
29
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
30
|
30
732600005
Screw-forming hex.hd.fl.gm6174m
|
732600005 |
— | ||
| replacement | |||||
|
30
|
30
210262080 Screw-forming hex.hd.fl.gm6174m |
210262080 |
US $2.72 |
||
|
31
|
31
517292800
Deflecteur *deflector
|
517292800 |
— | ||
|
32
|
32
415065800
Bouchon res.ess*cap-fuel tank
|
415065800 |
— | ||
|
33
|
33
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
34
|
34
415067600
Cable acc.467 *cable-throttle
|
415067600 |
— | ||
|
35
|
35
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
36
|
36
414420700 Bride a ressort*clamp-spring |
414420700 |
US $9.50 |
||
|
37
|
37
414580600 Raccord male *connector-male |
414580600 |
US $27.35 |
||
|
38
|
38
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
38
|
38
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
39
|
39
561503200
Cosse femelle *terminal-femal.
|
561503200 |
— | ||
| replacement | |||||
|
39
|
39
515175253 Cosse femelle *terminal-femal |
515175253 |
US $73.10 |
||
|
40
|
40
409008500 Logement femel.*housing-female |
409008500 |
US $3.89 |
||
|
41
|
41
414176000 Attache collier*open clamp |
414176000 |
US $27 |
||
|
42
|
42
222081665
Screw-hex.cap din.933
|
222081665 |
— | ||
| replacement | |||||
|
42
|
42
207181644 Screw-hex.cap din.933 |
207181644 |
US $14.50 |
||
|
43
|
43
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
44
|
44
517182100 Ressort *spring |
517182100 |
US $55.85 |
||
|
45
|
45
572086700
Logement acc. *housing-throttle
|
572086700 |
— | ||
| replacement | |||||
|
45
|
45
512060193 Logement acc. *housing-throttle |
512060193 |
US $23.41 |
||
|
46
|
46
413701700
New Genuine Part
|
413701700 |
— | ||
|
47
|
47
572099400
Plaque *plate
|
572099400 |
— | ||
| replacement | |||||
|
47
|
47
512059507 Plaque *plate |
512059507 |
US $8.13 |
||
|
48
|
48
414439000 Circlip *circlip |
414439000 |
US $27.35 |
||
|
49
|
49
414473200 Screw-thread cut.ph.pan type25 |
414473200 |
US $10.70 |
||
| replacement | |||||
|
49
|
49
211000098 Screw-thread cut.ph.pan type25 |
211000098 |
US $49.10 |
||
|
50
|
50
414612700
Inter.urgence *switch-kill
|
414612700 |
— | ||
|
51
|
51
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
52
|
52
414438700 Goupille levier*pin-lever |
414438700 |
US $53.65 |
||
|
53
|
53
561503400
Cosse male *terminal-male
|
561503400 |
— | ||
| replacement | |||||
|
53
|
53
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
54
|
54
572085900
Manette ass. *handle-assy
|
572085900 |
— | ||
| replacement | |||||
|
54
|
54
512060214 Manette ass. *handle-assy |
512060214 |
US $55.03 |
||
|
55
|
55
570045500 Passe-fils *grommet |
570045500 |
US $9.08 |
||
|
56
|
56
572077900 Couvercle adm. *cover-intake |
572077900 |
US $14.25 |
||
|
57
|
57
414972600 Filtre a air *filter-air |
414972600 |
US $42.81 |
||
|
58
|
58
365901100 Screw-hex.taping 12 |
365901100 |
US $15.60 |
||
|
59
|
59
414438900 Rondelle *washer |
414438900 |
US $1.96 |
||
