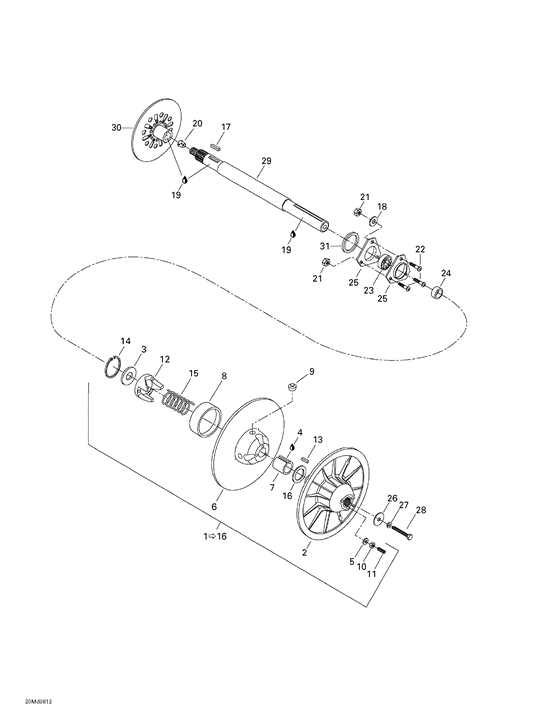

05- driven pulley Diagram Bombardier MX Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
417125700
Flasque fixe us*flange-fix.mach
|
417125700 |
— | ||
| replacement | |||||
|
2
|
2
417126650
Flasque fixe us*fixed flange mach.
|
417126650 |
— | ||
|
3
|
3
504141800
Rondelle *washer
|
504141800 |
— | ||
|
4
|
4
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
5
|
5
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
6
|
6
417125800
Flasque coul.as*flange-slid.as
Includes 6 - 9.; |
417125800 |
— | ||
| replacement | |||||
|
6
|
6
860427800
Ens.flasque cou*kit-flange slid.as
Includes 6 - 9.; |
860427800 |
— | ||
|
7
|
7
415011200 Douille *bushing |
415011200 |
US $40.09 |
||
|
8
|
8
414876600 Coussinet garl.*bushing-garlock |
414876600 |
US $41.09 |
||
|
9
|
9
415114400
Rouleau *roller
|
415114400 |
— | ||
| replacement | |||||
|
9
|
9
417126601 Rouleau *roller |
417126601 |
US $226.35 |
||
|
10
|
10
228061045
Nut-hexagonal din.934
|
228061045 |
— | ||
| replacement | |||||
|
10
|
10
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
11
|
11
223563065
Screw-set socket din.913
|
223563065 |
— | ||
| replacement | |||||
|
11
|
11
206263044 Screw-set socket din.913 |
206263044 |
US $22.10 |
||
|
12
|
12
417125900
Came usine *cam-mach.
|
417125900 |
— | ||
|
13
|
13
414820800 Clavette *key |
414820800 |
US $35.45 |
||
|
14
|
14
371903100 Circlip *circlip |
371903100 |
US $51.35 |
||
|
15
|
15
414558900
Ressort rappel *spring-release
|
414558900 |
— | ||
|
16
|
16
504141900 Rondelle appuie*washer-thrust |
504141900 |
US $8.13 |
||
|
17
|
17
507021300 Clavette *key |
507021300 |
US $13.45 |
||
|
18
|
18
224081171
Washer-flat din.125a
|
224081171 |
— | ||
| replacement | |||||
|
18
|
18
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
19
|
19
413701000
Loctite antigrippage 767, 12 oz
|
413701000 |
— | ||
|
20
|
20
414784800 Bouchon liege *cork |
414784800 |
US $3.01 |
||
|
21
|
21
228581045
Nut-stop elastic din.985
|
228581045 |
— | ||
| replacement | |||||
|
21
|
21
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
22
|
22
732601156
Screw-socket bn.hd.iso.7380
|
732601156 |
— | ||
| replacement | |||||
|
22
|
22
205482546 Screw-socket bn.hd.iso.7380 |
205482546 |
US $10.65 |
||
|
23
|
23
405408200 Roulement bille*ball bearing |
405408200 |
US $41.77 |
||
|
24
|
24
504149000
Cale epaisseur *shim
|
504149000 |
— | ||
|
25
|
25
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
26
|
26
517293300
Rondelle *washer
|
517293300 |
— | ||
| replacement | |||||
|
26
|
26
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
27
|
27
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
27
|
27
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
28
|
28
222087565
Screw-hex.cap din.931
|
222087565 |
— | ||
| replacement | |||||
|
28
|
28
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
29
|
29
504150200
Arbre de renvoi
|
504150200 |
— | ||
|
30
|
30
507030900
Disque usine *disk-mach.(s)
|
507030900 |
— | ||
|
31
|
31
507031200
Entretoise
|
507031200 |
— | ||
